1500 KVA, Pri 13200 D, Sec 480 D, SQUARE D, LIVE FRONT, RADIAL FEED, COPPER:1
PADMOUNT TRANSFORMER
Product Number:
036442
Full Product Description
T-3314

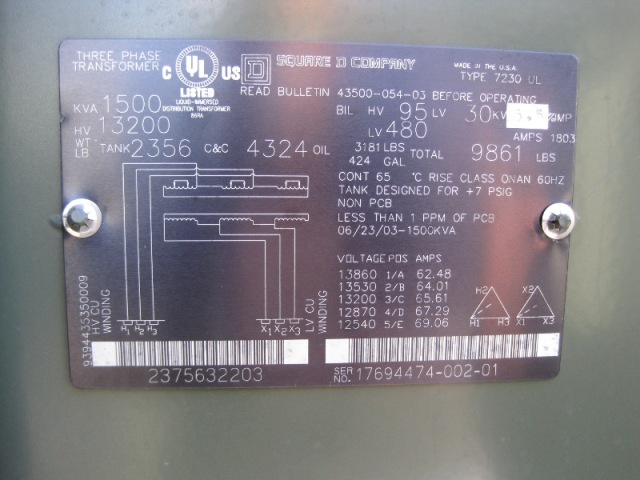

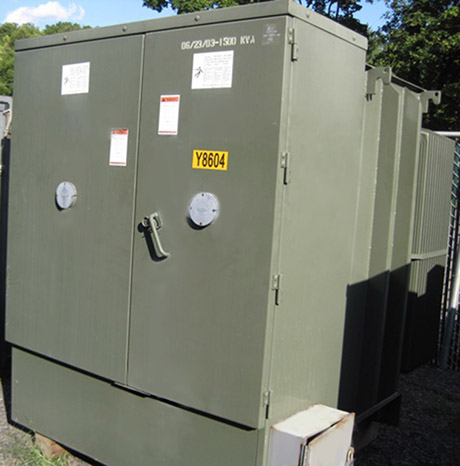

ONE (1) 1500 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE, 60
HERTZ, CLASS ONAN, 65 DEG. C RISE, 6.06% IMPEDANCE, COPPER WINDINGS,
DRAIN AND SAMPLE VALVE, VACUUM PRESSURE GAUGE, LIQUID LEVEL GAUGE,
WINDING TEMPERATURE GAUGE, S/N 17694474-002-01, MFG. 2003
HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 9,861 LBS.
CORE & COILS: 4,324 LBS.
TANK & FIT.: 2,356 LBS.
OIL: 424 GALS.: 3,181 LBS.
DIMENSIONS: 76.5"H X 68"W X 85"D Low Voltage Bushings: 44.25" High Voltage Bushings: 45"
ONE (1) 1500 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE, 60
HERTZ, CLASS ONAN, 65 DEG. C RISE, 6.06% IMPEDANCE, COPPER WINDINGS,
DRAIN AND SAMPLE VALVE, VACUUM PRESSURE GAUGE, LIQUID LEVEL GAUGE,
WINDING TEMPERATURE GAUGE, S/N 17694474-002-01, MFG. 2003
HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 9,861 LBS.
CORE & COILS: 4,324 LBS.
TANK & FIT.: 2,356 LBS.
OIL: 424 GALS.: 3,181 LBS.
DIMENSIONS: 76.5"H X 68"W X 85"D Low Voltage Bushings: 44.25" High Voltage Bushings: 45"
