  2. 1500/1680/1932 KVA, GENERAL ELECTRIC, Pri 13800 D, Sec 480 D, 1999, SUBSTATION;

1500/1680/1932 KVA, GENERAL ELECTRIC, Pri 13800 D, Sec 480 D, 1999, SUBSTATION;

https://belyeapower.redstormlabs.com/web/image/product.template/26043/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 036391
    Request Quote

    Full Product Description

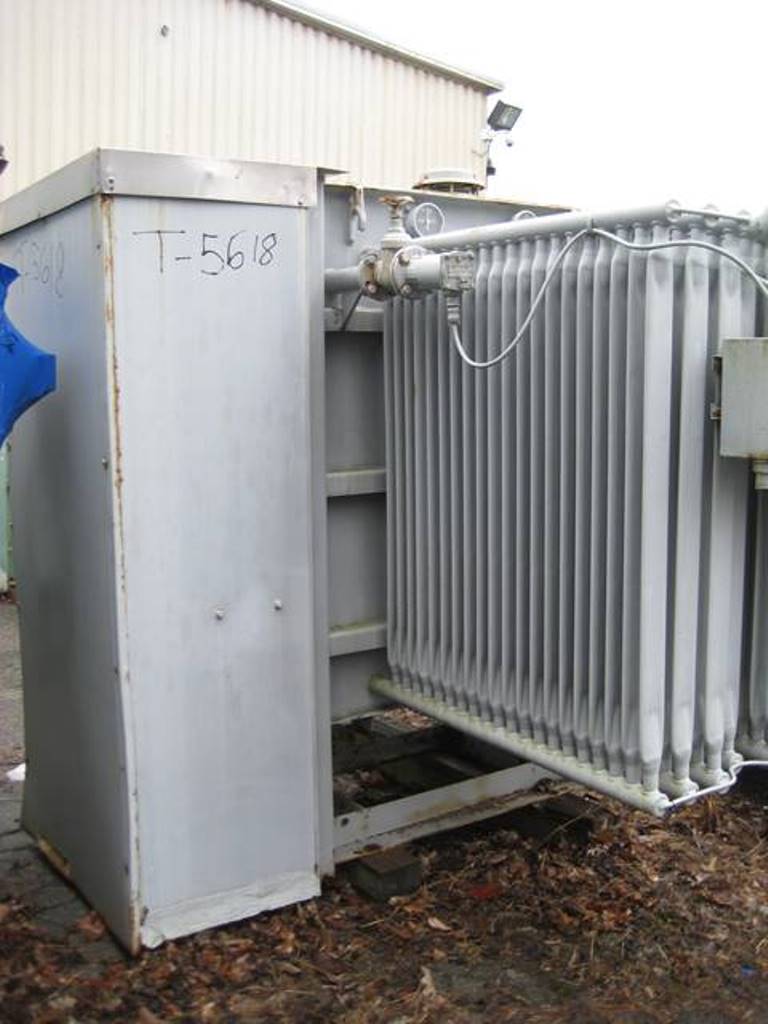

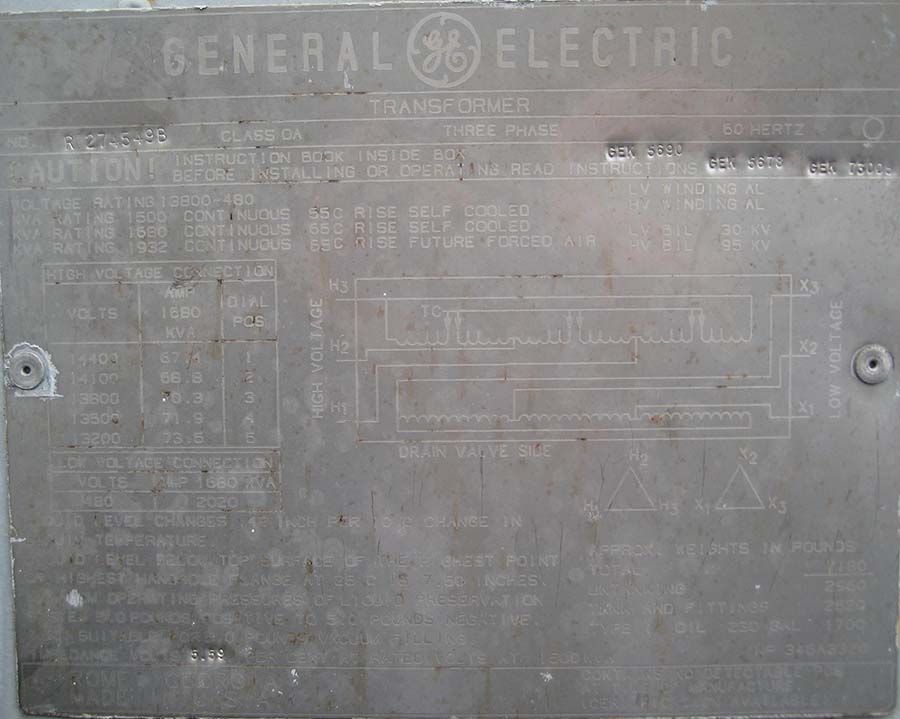

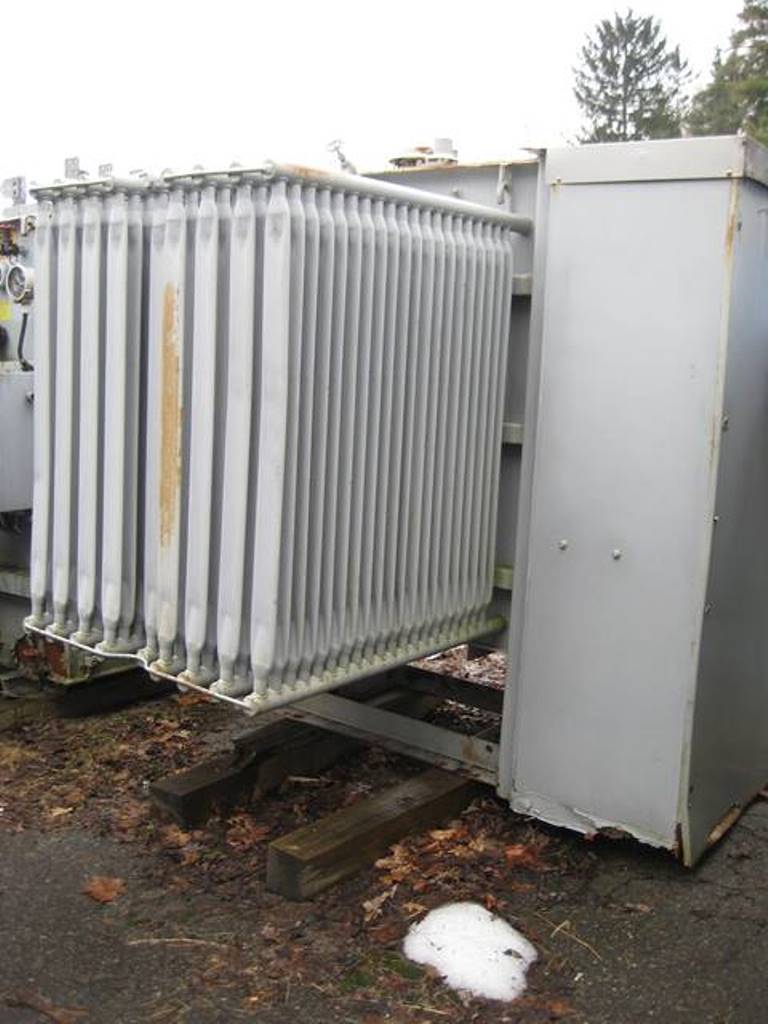

    ONE (1) - 1500/1680/1932KVA GENERAL ELECTRIC OIL FILLED
    SUBSTATION TRANSFORMER

    - 3PH/60HZ
    - CLASS OA/0A/FFA
    - 55/65 DEGREE C RISE
    - MFG 1999
    - 5.59% IMPENDANCE
    - ALUMINUM WOUND

    HV: 13800 VOLTS DELTA BIL: 95KV
    LV: 480 VOLTS DELTA BIL: 30KV

    TAPS: 14400, 14100, 13800, 13500, 13200


    WEIGHTS
    TOTAL : 7,180 LBS
    CORE & COILS : 2,960 LBS
    TANK & FITTINGS: 2,520 LBS
    OIL : 1,700 LBS (230 GALLONS)


    DIMENSIONS: 86"H x 120"L x 84"D
