  2. 1200 Amp, GENERAL ELECTRIC, AM-13.8-500-7H, 13.8 KV, 1975, 230 VAC CL, 48 VDC TR

1200 Amp, GENERAL ELECTRIC, AM-13.8-500-7H, 13.8 KV, 1975, 230 VAC CL, 48 VDC TR

https://belyeapower.redstormlabs.com/web/image/product.template/26042/image_1920?unique=fb47b93

AMAGNE-BLAST AIR BREAKERS

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 036390
    Request Quote

    Full Product Description

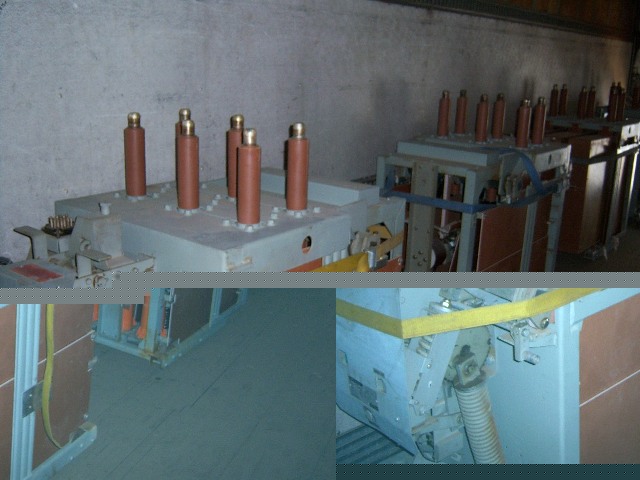

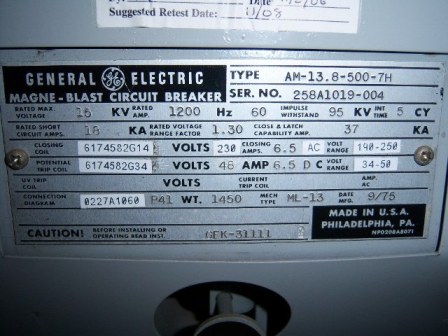

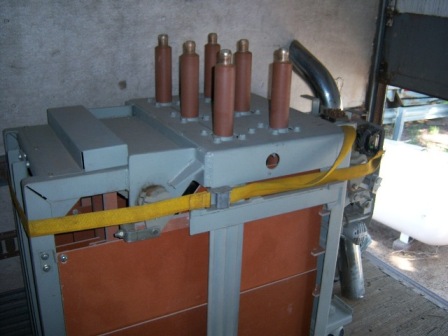

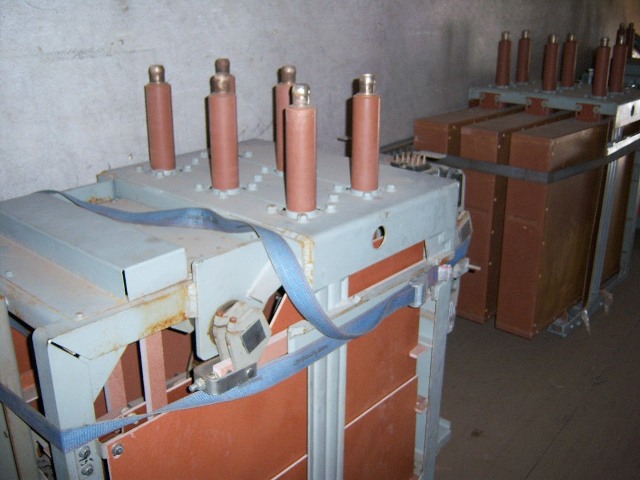

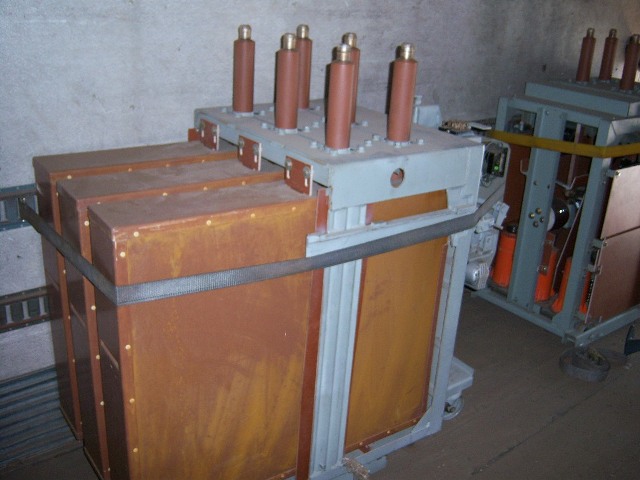

    FOUR (4) 1200 AMP GENERAL ELECTRIC MAGNE-BLAST CIRCUIT BREAKERS
    TYPE AM-13.8-500-7H
    15 KV MAX.
    60 HERTZ
    95 KV BIL
    5 CYCLE INTERRUPT
    230 VAC CLOSE
    48 VDC TRIP
    18 KAIC
    1.30 RATED VOLTAGE RANGE FACTOR
    37 KA CLOSE & LATCH
    ML-13 MECHANISM
    1450 LBS.
    MFG. 1975
    GEK-31111
    CONNECTION DIAGRAM 0227A1060
