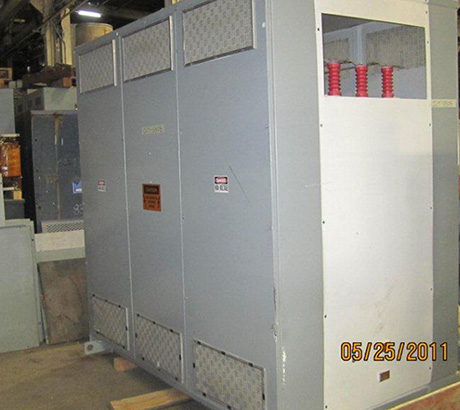

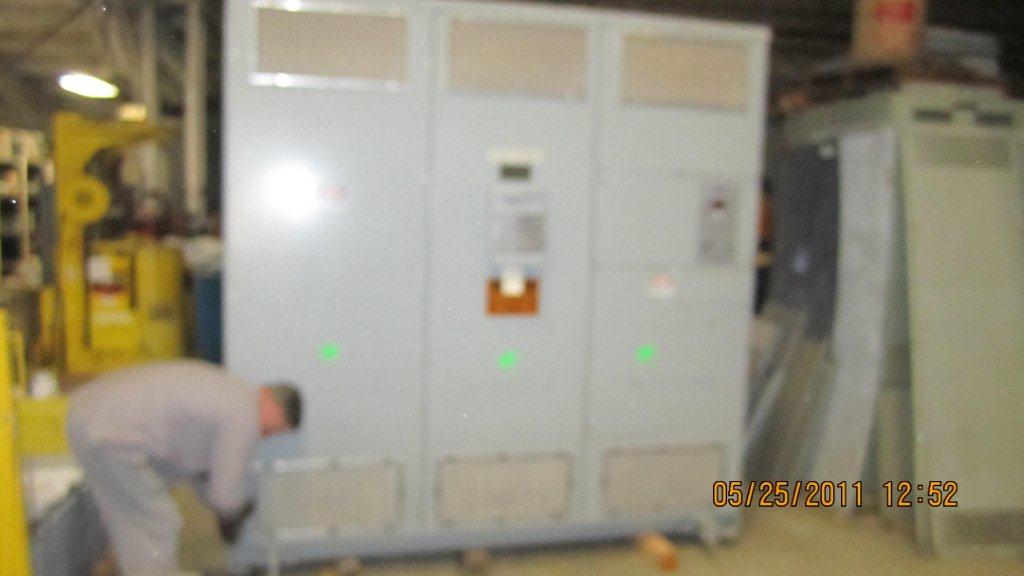

2500/3335 KVA, Pri 12000 D, Sec 480 D, 1994, GENERAL ELECTRIC, DRY, CORE & COILS
CORE & COILS
Product Number:
036387
Full Product Description
JVT-3308

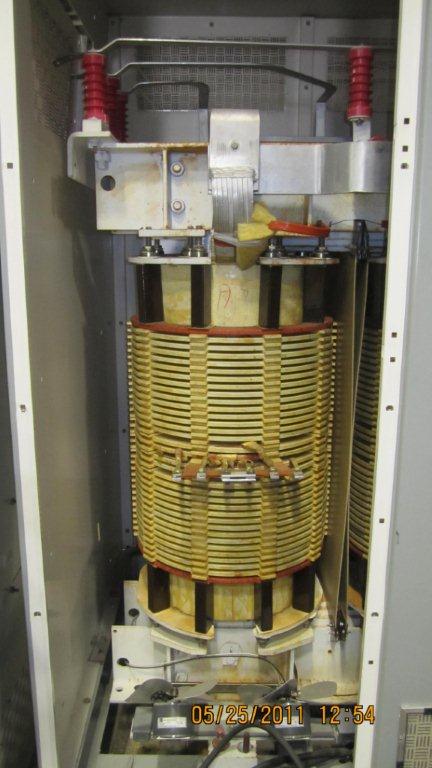

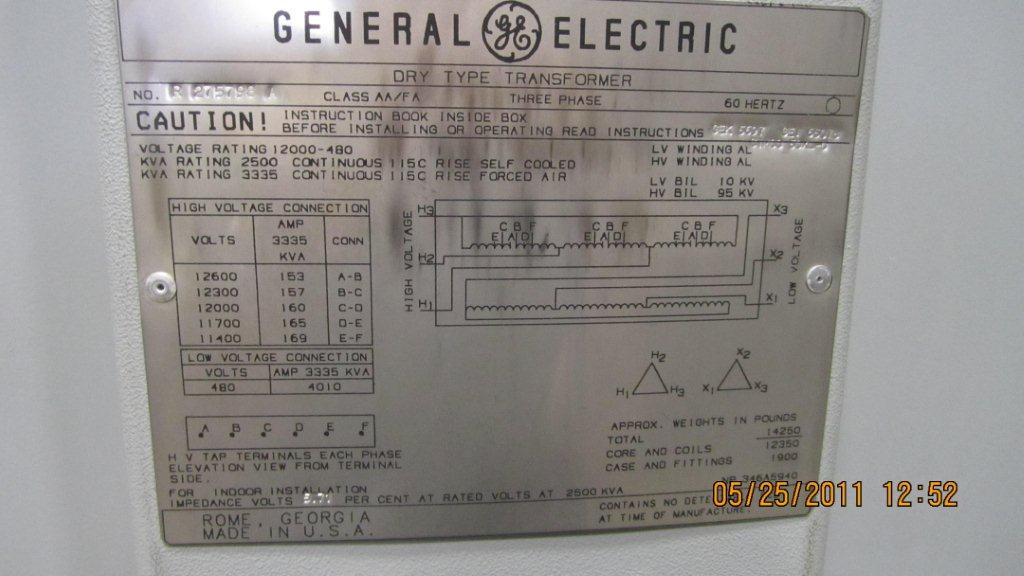

ONE (1) 2500/3335 KVA GENERAL ELECTRIC CORE & COILS, 3 PHASE, 60 HERTZ, CLASS
AA/FA 115 DEG. C RISE, 5.71% IMPEDANCE, ALUMINUM WINDINGS, HV ANSI 2,
LV ANSI 4, CIMCO FAN PACKAGE, MFG. 1994, S/N R-275798A
HIGH VOLTAGE: 12000 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 10 KV
TAPS: 12600-12300-12000-11700-11400
CORE & COILS: 12,350 LBS.
CORE & COILS: 86"H X 92"L X 40"W
