  2. 1200 Amp, GENERAL ELECTRIC, VB1-4.16-250-0, 4760 V., 1983, 48 VDC CLOSE & TRIP:1

1200 Amp, GENERAL ELECTRIC, VB1-4.16-250-0, 4760 V., 1983, 48 VDC CLOSE & TRIP:1

https://belyeapower.redstormlabs.com/web/image/product.template/25961/image_1920?unique=5d91a91

VACUUM BREAKER

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 036308
    Request Quote

    Full Product Description

    CB-16878

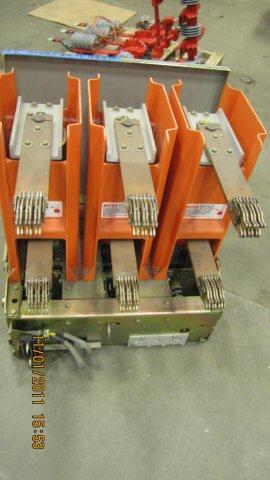

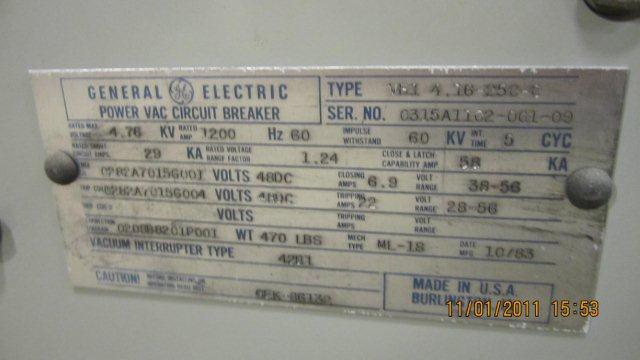

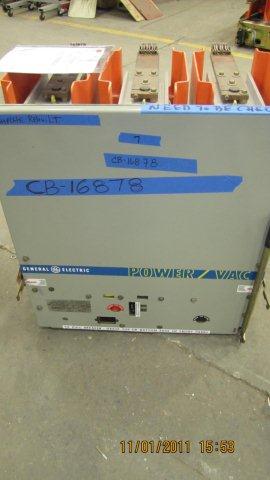

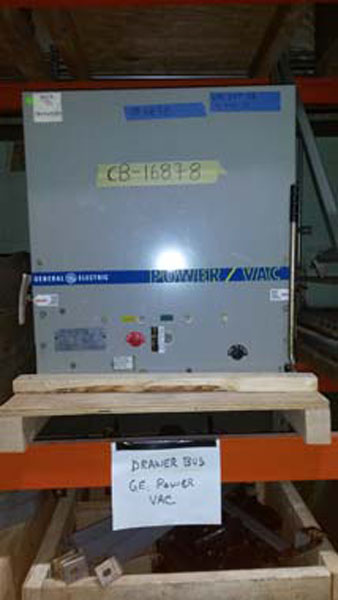

    ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM BREAKER
    TYPE VB1-4.16-250-0
    4760 VOLTS
    4.76 KV MAX
    60 HERTZ
    60 KV BIL
    5 CYCLE INTERRUPT
    29 KA SHORT CIRCUIT
    1.24 VOLTAGE K FACTOR
    58 KA CLOSE & LATCH
    48 VDC CLOSE & TRIP
    ML-18 OPERATING MECHANISM
    VACUUM INTERRUPTER TYPE: 42B1
    WEIGHT: 470 LBS
