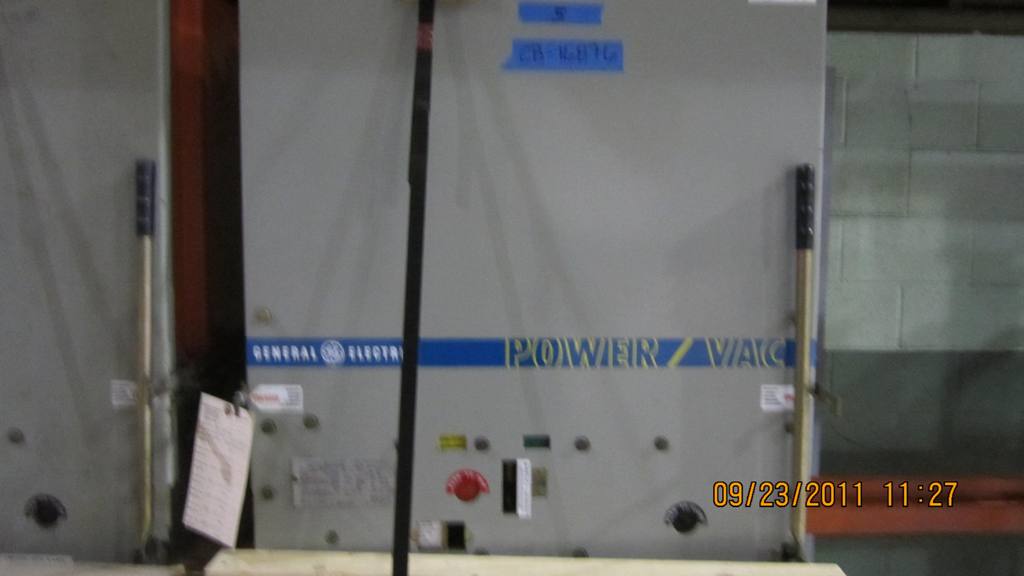

1200 Amp, GENERAL ELECTRIC, VB1-4.16-250-0, 4760 V., 1983, 48 VDC CLOSE & TRIP:1
VACUUM BREAKER
Product Number:
036306
Full Product Description

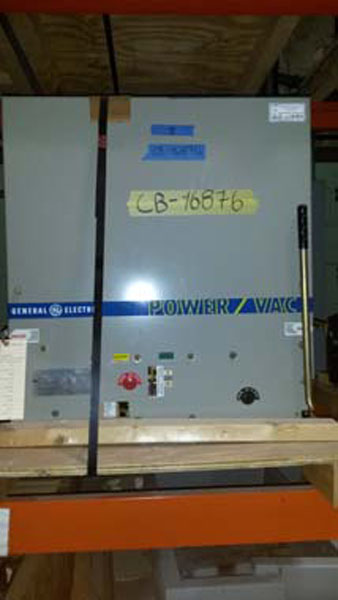

CB-16876

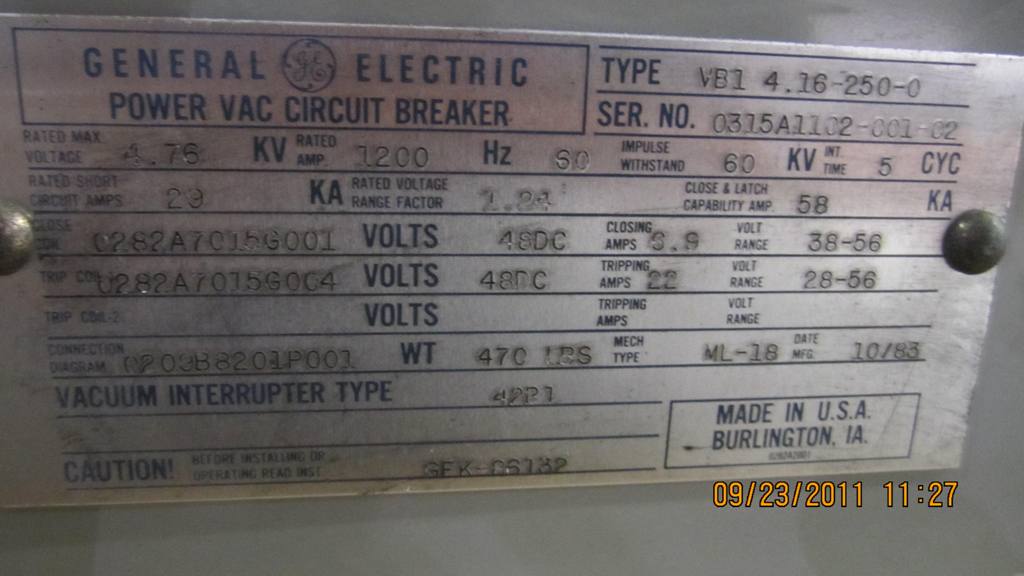

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM BREAKER
TYPE VB1-4.16-250-0
4.76 KV MAX
60 HZ
60 KV BIL
5 CYCLE INTERRUPT
4760 VOLTS
29 KA SHORT CIRCUIT
1.24 RATED VOLTAGE K FACTOR
58 CLOSE & LATCH
48 VDC CLOSE & TRIP
CONNECTION DIAGRAM: 0209B8201P001
WEIGHT: 470 LBS.
ML-18 OPERATING MECHANISM
42B1 VACUUM INTERRUPTER TYPE
IB: GFK-86132
