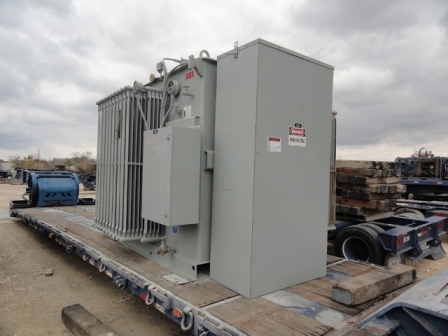

7500 KVA, Pri 12470Y/7200, Sec 4160 D, ABB, SILICONE, SUBSTATION, UNUSED

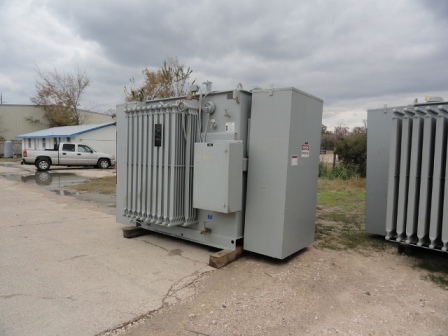

ONE (1) UNUSED 7500 KVA ABB GENERATOR STEP-UP TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS KNAN, 65 DEG. C RISE, 6.76% IMPEDANCE, SILICONE, MFG. 2005,
COPPER WINDINGS, FLANGE X FLANGE, S/N HB18315-004<


HIGH VOLTAGE: 12470Y/7200 BIL: 110 KV
LOW VOLTAGE: 4160 DELTA BIL: 75 KV
TAPS: 13090-12780-12470-12160-11850
TOTAL WEIGHT: 38,943 LBS.
CORE & COILS: 21,076 LBS.
TANK & FIT.: 8,795 LBS.
SILICONE: 9,072 LBS. (1,134 GALS.)
SHIPPING DIMENSIONS: 8'5"H X 11'7"W X 10"D
