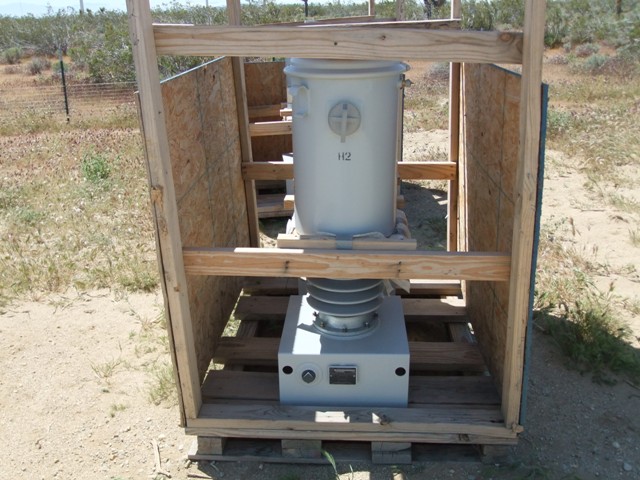

34 kV, Pri.,300A, Sec., 5A, 34.5 KV, KUHLMAN COF-200 CT'S, 60:1 RATIO, 200 KV BIL
UNUSED CURRENT TRANSFORMERS
Product Number:
036298
Full Product Description
CPT-068A/B/C
THREE (3) 34.5 KV, Pri.300A, Sec. 5 AMP KUHLMAN CURRENT TRANSFORMERS UNUSED
TYPE COF-200
34.5 KV
200 KV BIL
60:1 RATIO
RATING FACTOR 1.5
60 HERTZ
X1-X2 CONNECTION
45 KA 1 SEC. THERMAL
0.3B1.8 ACCURACY
45 KA MECHANICAL RATING
15 GALS. OIL
450 LBS. TOTAL WEIGHT
CAT #G950300SA
P/N 2257966019

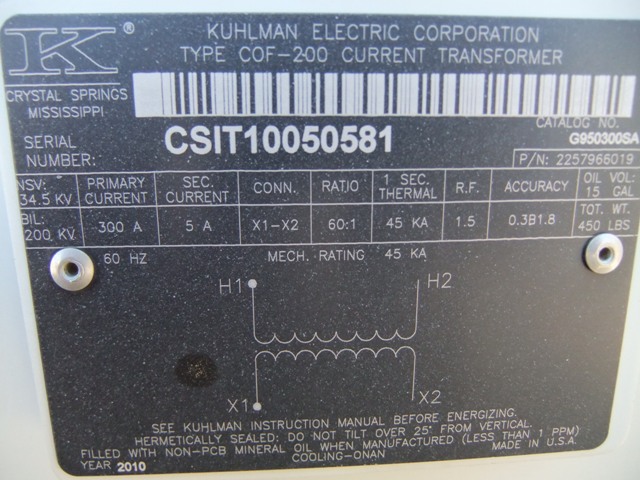

CPT-068A: S/N CSIT10050581

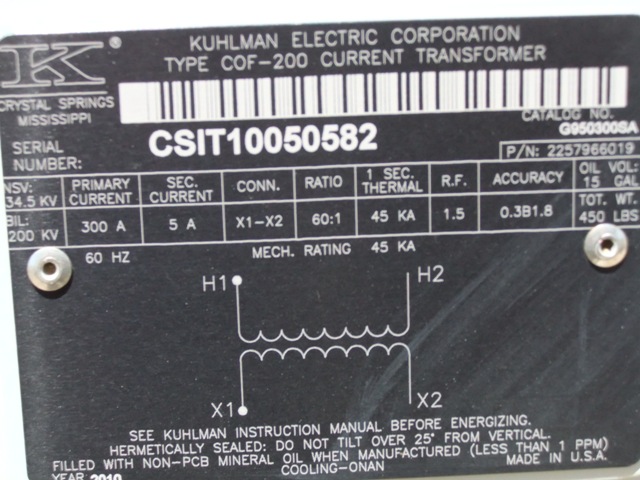

CPT-068B: S/N CSIT10050582

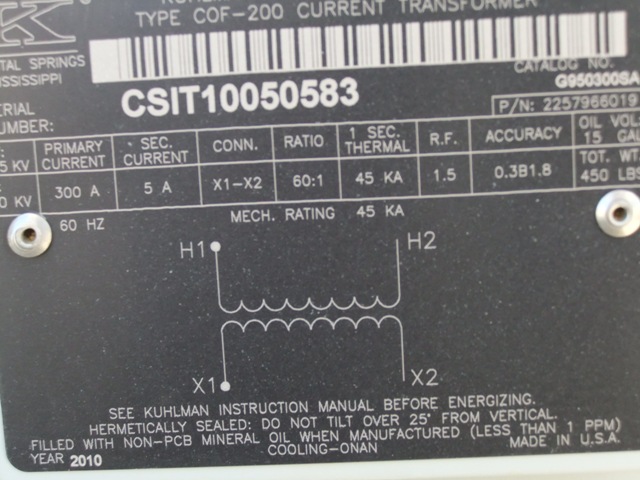

CPT-068C: S/N CSIT10050583
THREE (3) 34.5 KV, Pri.300A, Sec. 5 AMP KUHLMAN CURRENT TRANSFORMERS UNUSED
TYPE COF-200
34.5 KV
200 KV BIL
60:1 RATIO
RATING FACTOR 1.5
60 HERTZ
X1-X2 CONNECTION
45 KA 1 SEC. THERMAL
0.3B1.8 ACCURACY
45 KA MECHANICAL RATING
15 GALS. OIL
450 LBS. TOTAL WEIGHT
CAT #G950300SA
P/N 2257966019
CPT-068A: S/N CSIT10050581
CPT-068B: S/N CSIT10050582
CPT-068C: S/N CSIT10050583
