1200 Amp, WESTINGHOUSE, 150 VCP-W-500, 15 KV, 1992, EO/DO, 125VDC MOT, CL,& T
VACUUM CIRCUIT BREAKER
Product Number:
036283
Full Product Description

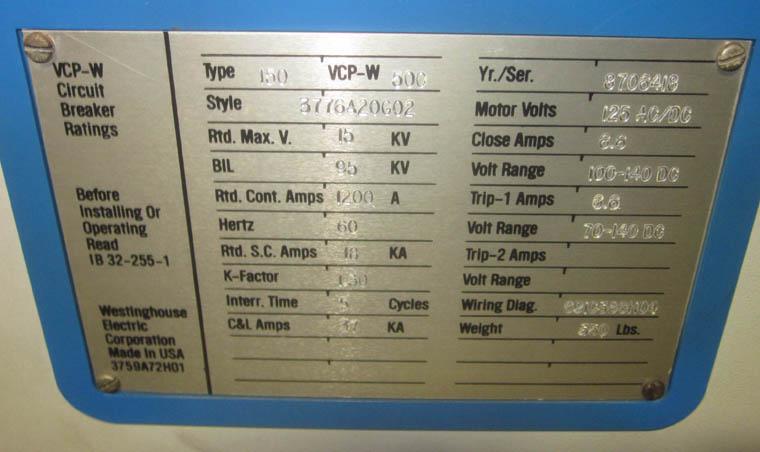

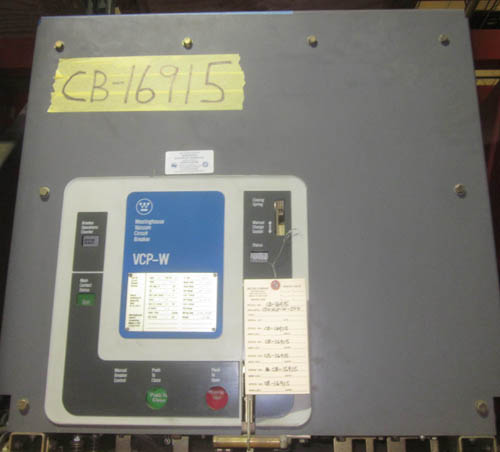

ONE (1)- 1200 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER
TYPE 150 VCP-W-500
15KV MAX
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
18 KA SHORT CIRCUIT
1.30 VOLTAGE K FACTOR
125 VDC CLOSE & TRIP
37 KA CLOSE & LATCH
125 VOLT AC/DC CHARGING MOTOR
WIRING DIAG.: 691C386H04
WEIGHT: 350 LBS
IB: 32-255-1
DRAWOUT
ELECTRICALLY OPERATED
TYPE 150 VCP-W-500
15KV MAX
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
18 KA SHORT CIRCUIT
1.30 VOLTAGE K FACTOR
125 VDC CLOSE & TRIP
37 KA CLOSE & LATCH
125 VOLT AC/DC CHARGING MOTOR
WIRING DIAG.: 691C386H04
WEIGHT: 350 LBS
IB: 32-255-1
DRAWOUT
ELECTRICALLY OPERATED
