2500/2800 KVA, Pri 12470Y/7200, Sec 480 D, ABB, PADMOUNT, ABB, SILICONE DF/LF
PADMOUNT TRANSFORMER
Product Number:
036254
Full Product Description
T-5616

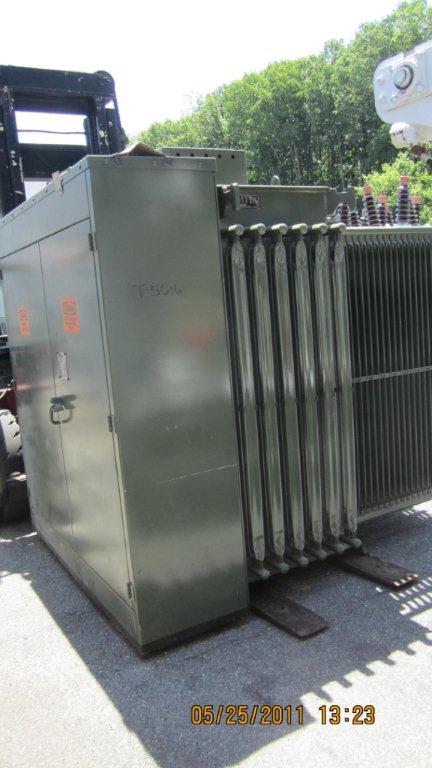

ONE (1) 2500/2800 KVA ABB PLAZAPAD TRANSFORMER, TYPE RSL, 3 PHASE, 60 HERTZ,
CLASS OA, 55/65 DEG. C RISE, 5.40% IMPEDANCE, DEAD FRONT, LOOP FEED,
LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE, RELIEF VALVE, DRAIN
VALVE, MFG. 1996, SILICONE, S/N TAB2243-0001
HIGH VOLTAGE: 12470Y/7200 BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13090-12780-12470-12160-11850
TOTAL WEIGHT: 15,104 LBS.
CORE & COILS: 5,844 LBS.
TANK & FIT.: 4,380 LBS.
SILICONE: 4,880 LBS. (610 GALS.)
DIMENSIONS: 91"H X 102"L X 85"D
HV BUSHINGS: 56"H - 52"H - 48"H
LV BUSHINGS: 48"H
ONE (1) 2500/2800 KVA ABB PLAZAPAD TRANSFORMER, TYPE RSL, 3 PHASE, 60 HERTZ,
CLASS OA, 55/65 DEG. C RISE, 5.40% IMPEDANCE, DEAD FRONT, LOOP FEED,
LIQUID LEVEL GAUGE, LIQUID TEMPERATURE GAUGE, RELIEF VALVE, DRAIN
VALVE, MFG. 1996, SILICONE, S/N TAB2243-0001
HIGH VOLTAGE: 12470Y/7200 BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13090-12780-12470-12160-11850
TOTAL WEIGHT: 15,104 LBS.
CORE & COILS: 5,844 LBS.
TANK & FIT.: 4,380 LBS.
SILICONE: 4,880 LBS. (610 GALS.)
DIMENSIONS: 91"H X 102"L X 85"D
HV BUSHINGS: 56"H - 52"H - 48"H
LV BUSHINGS: 48"H
