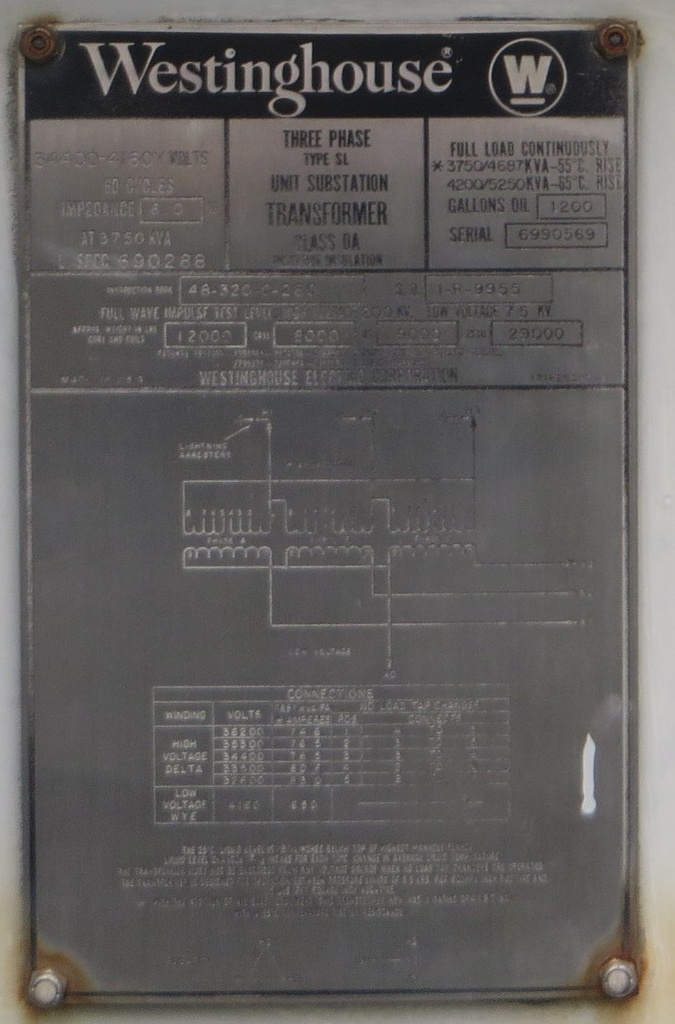

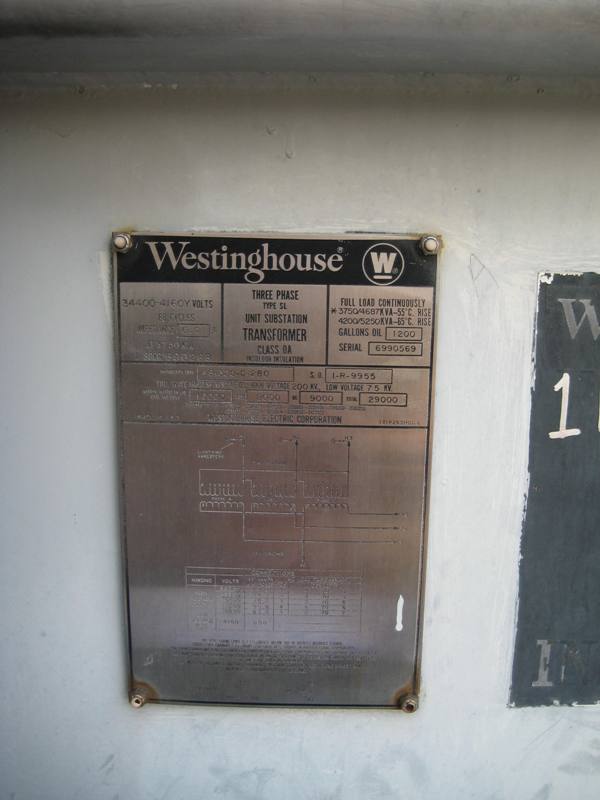

3750/4200/5250 KVA, Pri 34400 D, Sec 4160Y/2400, WESTINGHOUSE, SUBSTATION

T-3296:

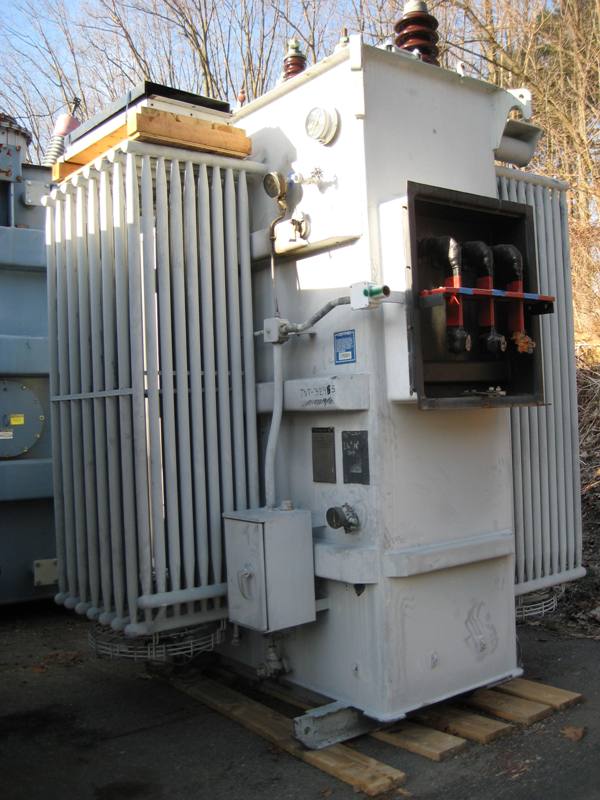

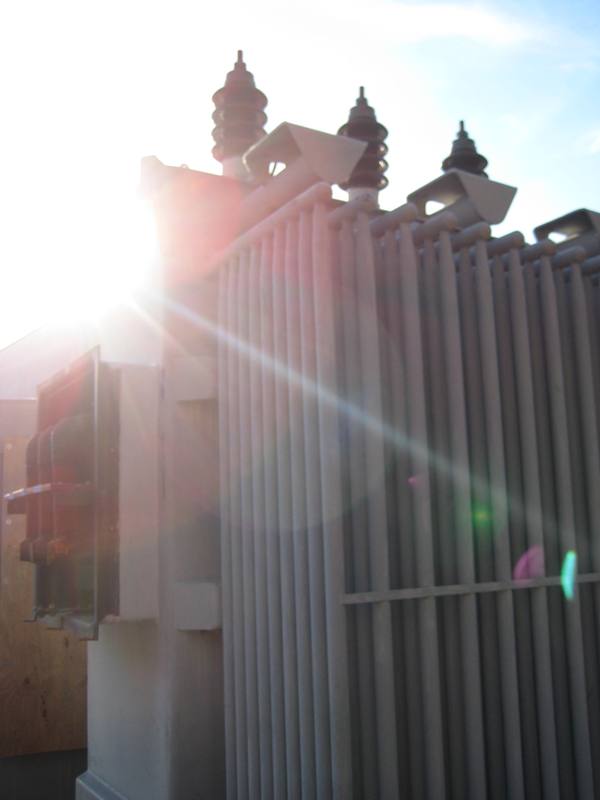

ONE (1) 3750/4200/5250 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, 55/65 DEG. C RISE, CLASS OA/FA, 6.03% IMPEDANCE, HV COVER,
LV SIDE, NEUTRAL COVER, S/N 6990569

HIGH VOLTAGE: 34400 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 36200-35300-34400-33500-32600

TOTAL WEIGHT: 29,000 LBS.
CORE & COILS: 12,000 LBS.
TANK & FIT.: 8,000 LBS.
OIL: 9,000 LBS. (1,200 GALS.)
DIMENSIONS: 150"H X 100"W X 123"L
127.5"H TO HIGHEST NON-REMOVABLE PART
