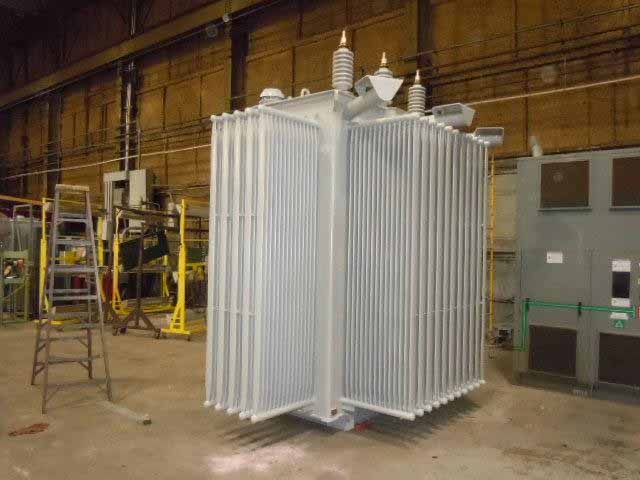

3750/4200 KVA, Pri 34400 D, Sec 4160Y/2400, WESTINGHOUSE, SUBSTATION:1

T-3295:<
<

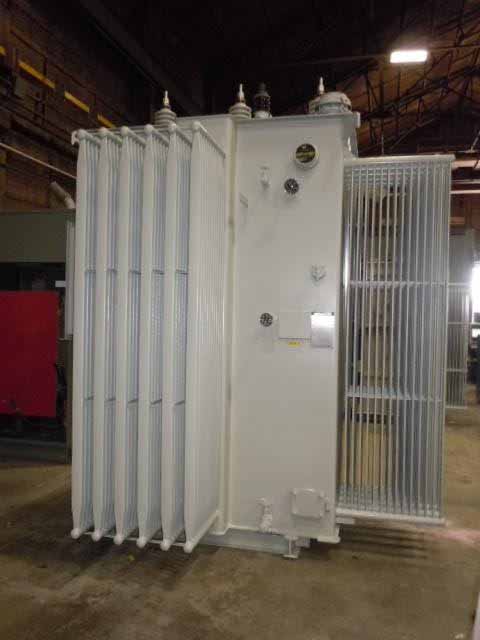

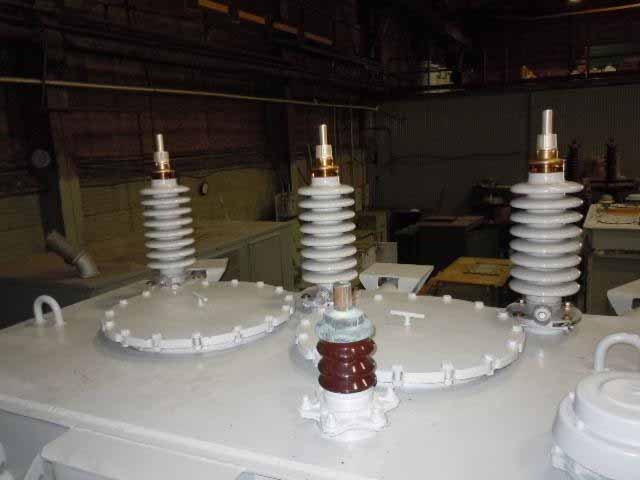

ONE (1) 3750/4200 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, TYPE SL, 3 PHASE,<
60 HERTZ, 55/65 DEG. C RISE, CLASS OA/FFA, 5.7% IMPEDANCE, HV COVER,<

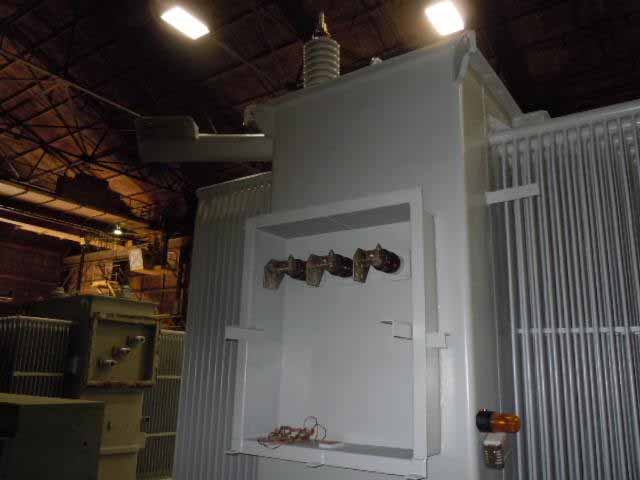

LV SIDE, LV NEUTRAL COVER, COPPER WINDINGS, CIRCULAR/DISK WOUND,<
DRAIN AND SAMPLE VALVE, DIAL TYPE THERMOMETER WITH CONTACTS, LIQUID<
LEVEL GAUGE, HV ARRESTERS BRACKET, S/N PGR96261<
<
HIGH VOLTAGE: 34400 DELTA BIL: 200 KV<
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV<
TAPS: 36200-35300-34400-33500-32600<
< TOTAL WEIGHT: 30,350 LBS.<
CORE & COILS: 12,000 LBS.<
TANK & FIT.: 8,000 LBS.<
OIL: 10,350 LBS. (1,380 GALS.) EMPTY<
DIMENSIONS: 149"H X 120"W X 97"D<
HV BUSHING: 149"H<
LV BUSHING: 136"H<
SHIPPING: 128"H TO HIGHEST NON-REMOVABLE PART
