25/33/41/46 MVA, Pri 138000Y/79670, Sec 13800 D, FEDERAL PIONEER, SUB

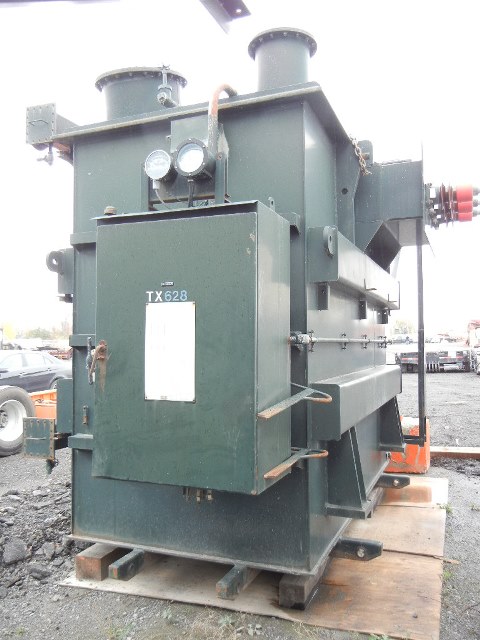

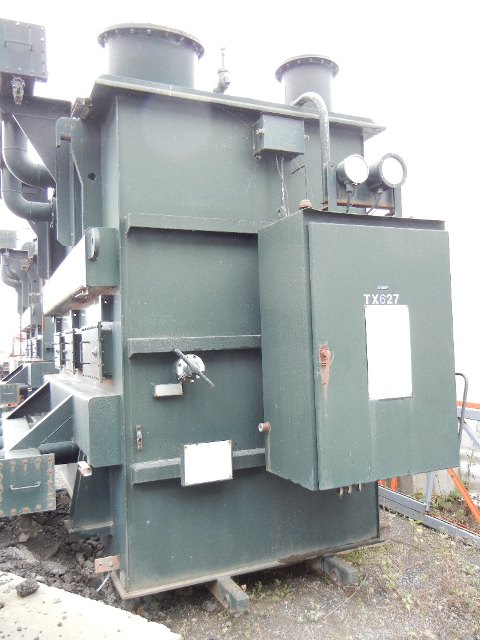

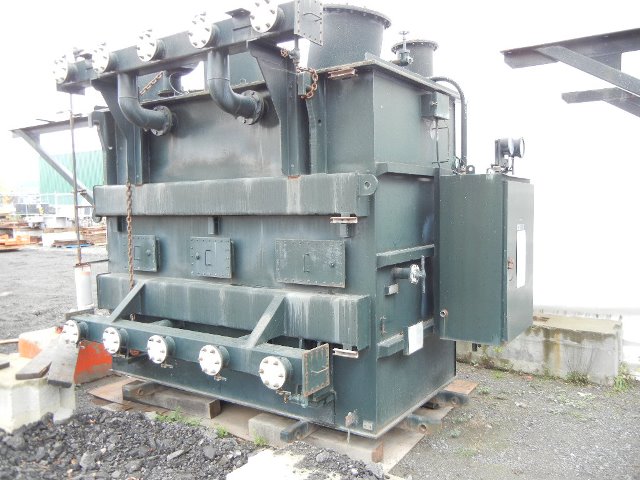

ONE (1) 25/33/41/46 MVA FEDERAL PIONEER GENERATOR STEP-UP TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS ONAN/ONAF/ONAF/ONAF, 55/65 DEG. C RISE,
9.43% IMPEDANCE, COPPER WINDINGS, HV TOP MOUNTED BUSHINGS, LV SIDE
THROAT, CONSERVATOR, S/N 61-54-89103

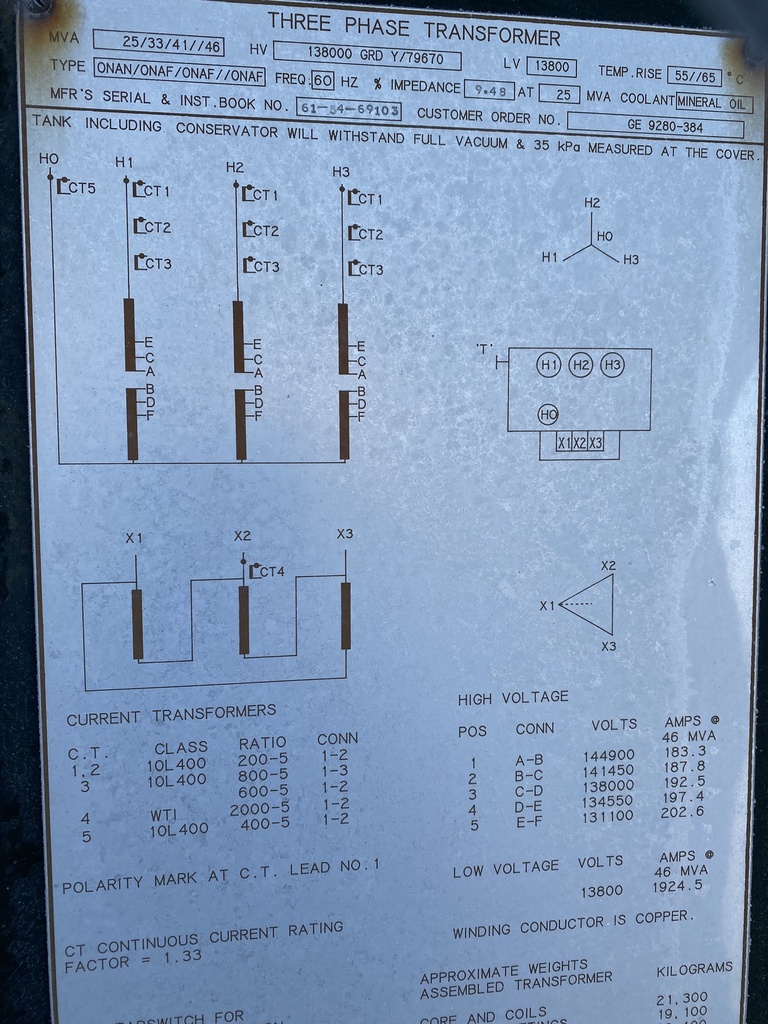

HIGH VOLTAGE: 138000GRDY/79670 BIL: 550 KV
LOW VOLTAGE: 13800 DELTA BIL: 110 KV
TAPS: 144900-141450-138000-134550-131100

TOTAL WEIGHT: 117,700 LBS.
CORE & COILS: 46,860 LBS.
TANK & FIT.: 42,020 LBS.
OIL: 28,820 LBS.
DIMENSIONS: 11'6"H X 11'6"W X 22'L
SHIPPING: 143"H X 120"W X 243 1/4"L, 75,000 LBS. (APPROX.)

NEED 48' SINGLE DROP FOR ACCESSORIES
