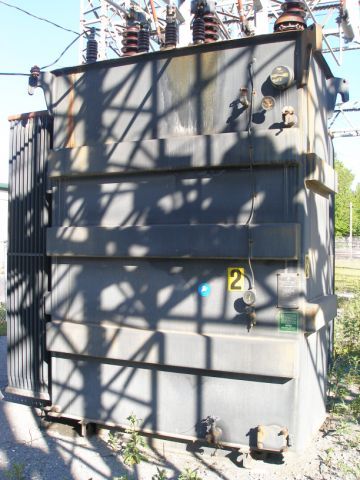

7500 KVA, Pri 64000 D, Sec 12470Y/7200, WESTINGHOUSE, SUBSTATION:1

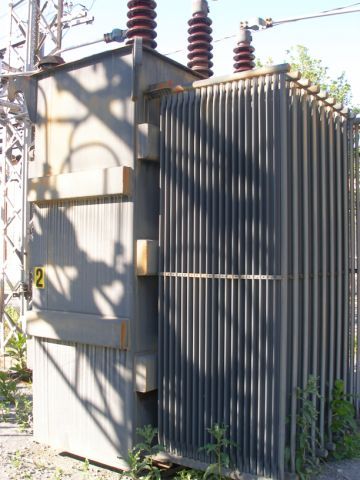

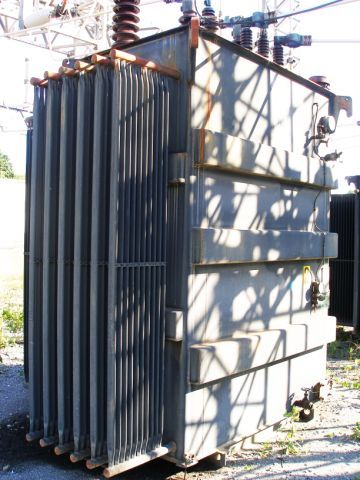

ONE (1) 7500 KVA WESTINGHOUSE TYPE SL SUBSTATION TRANSFORMER, 3 PHASE, 60 HZ.,
65 DEG. C RISE, CLASS OA, 6.9% IMPEDANCE, DRAIN AND SAMPLE VALVE,
DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE,
PRESSURE RELIEF DEVICE, TOP MOUNTED BUSHINGS, CIRCULAR/DISK WOUND,
S/N PGP-1759

HIGH VOLTAGE: 64000 DELTA BIL: 350 KV
LOW VOLTAGE: 12470Y/7200 BIL: 110 KV
TAPS: 67200-65600-64000-62400-60800

TOTAL WEIGHT: 38,935 LBS.
CORE & COILS: 17,400 LBS.
TANK & FIT.: 9,400 LBS.
OIL: 12,135 LBS. (1,618 GALS.)
DIMENSIONS: 137"H X 123"W X 98"D
HV BUSHING: 169"H
LV BUSHING: 144"H
