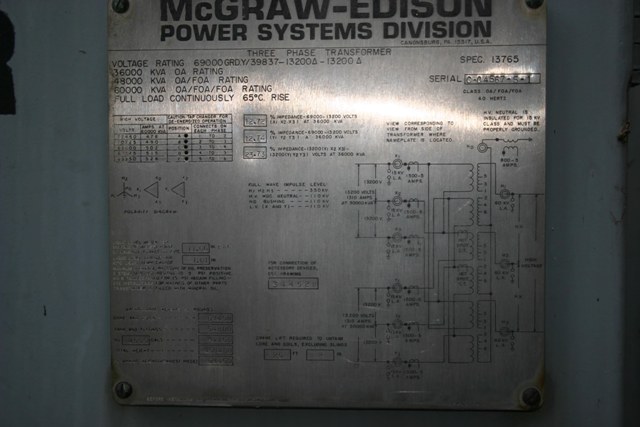

36000/48000/60000 KVA, Pri 69000Y/39837, Sec 13200 D, X 13200 D, MCE, GSU
GENERATOR STEP-UP TRANSFORMER
Product Number:
035816
Full Product Description
ONE (1) 36/48/60 MVA MCGRAW-EDISON GENERATOR STEP UP TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FOA/FOA, 65 DEG. C RISE, 6.5% IMPEDANCE,
S/N C-04567-5-1, 6 X LV 1500:5 CT'S
HIGH VOLTAGE: 69000GRDY/39837 BIL: 350 KV
LOW VOLTAGE: 13200 D X 13200 D BIL: 110 KV
TAPS: 72450-70725-69000-67275-65550
TOTAL WEIGHT: 158,400 LBS.
CORE & COILS: 69,450 LBS.
TANK & FIT.: 54,800 LBS.
OIL: 34,150 LBS. (4,555 GALS.)
60 HERTZ, CLASS OA/FOA/FOA, 65 DEG. C RISE, 6.5% IMPEDANCE,
S/N C-04567-5-1, 6 X LV 1500:5 CT'S
HIGH VOLTAGE: 69000GRDY/39837 BIL: 350 KV
LOW VOLTAGE: 13200 D X 13200 D BIL: 110 KV
TAPS: 72450-70725-69000-67275-65550
TOTAL WEIGHT: 158,400 LBS.
CORE & COILS: 69,450 LBS.
TANK & FIT.: 54,800 LBS.
OIL: 34,150 LBS. (4,555 GALS.)
