2500/3335 KVA, Pri 12000 D, Sec 480 D, 1994, GENERAL ELECTRIC, INDOOR, DRY:1
INDOOR DRY TYPE TRANSFORMER
Product Number:
035771
Full Product Description
T-3250

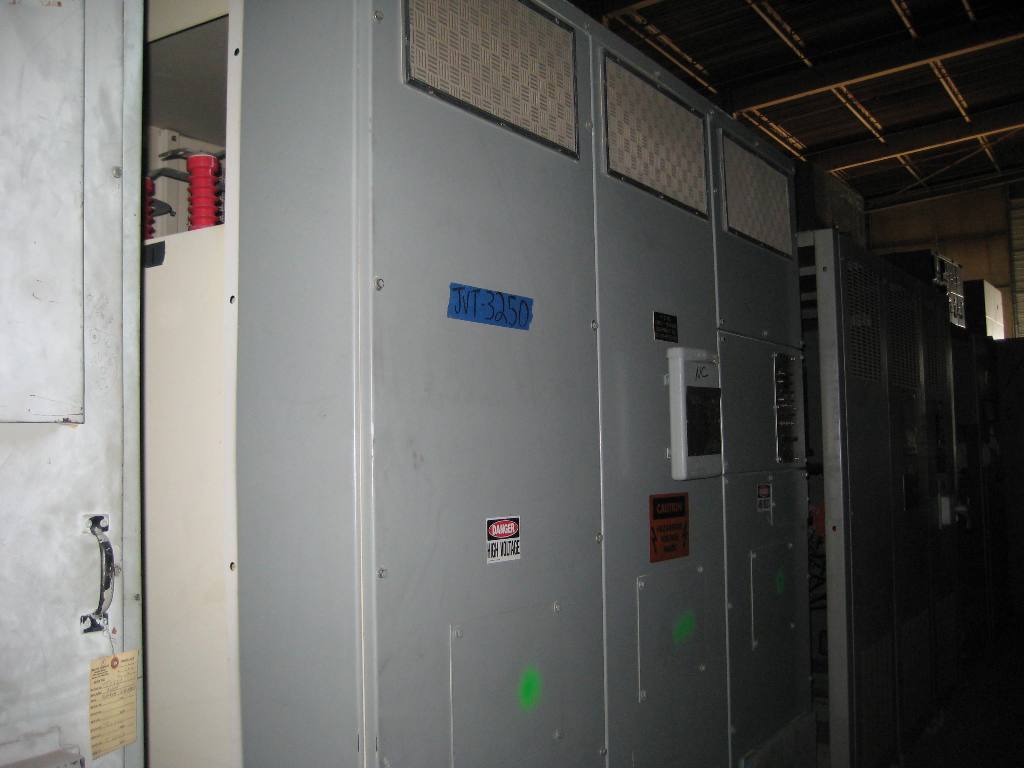

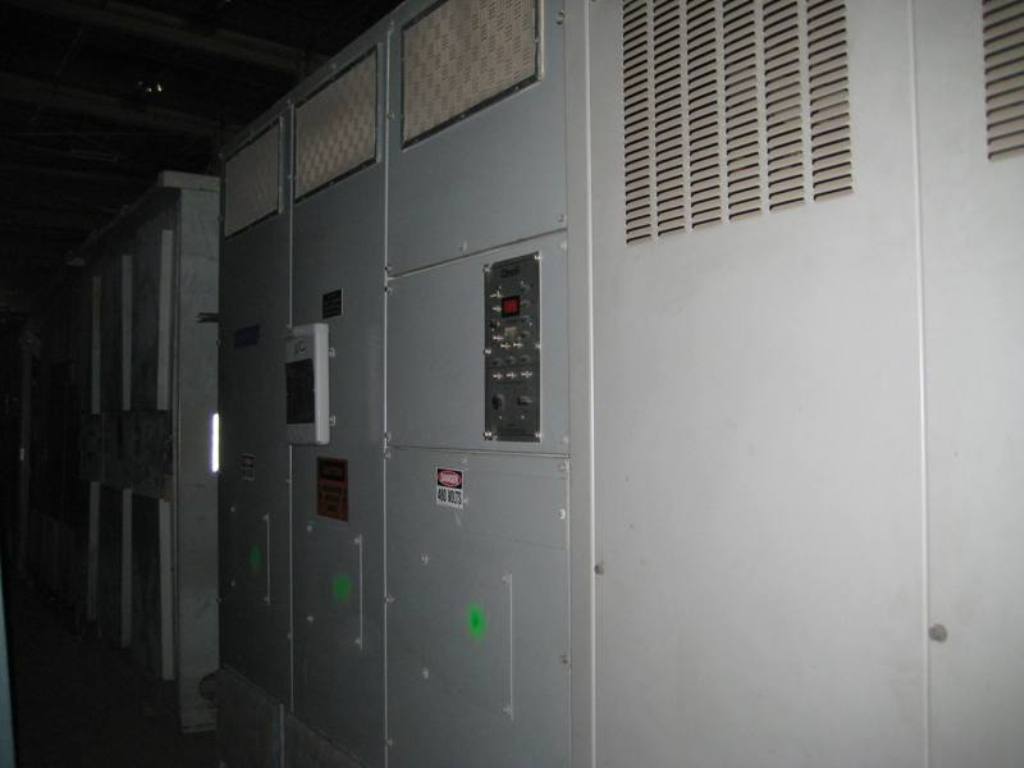

ONE (1) 2500/3335 KVA GENERAL ELECTRIC INDOOR DRY TYPE TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS AA/FA, 115 DEG. C RISE, 5.74% IMPEDANCE, ALUMINUM
WINDINGS, MFG. 1994, S/N R-275798-D, HV RIGHT TOP, LV LEFT TOP

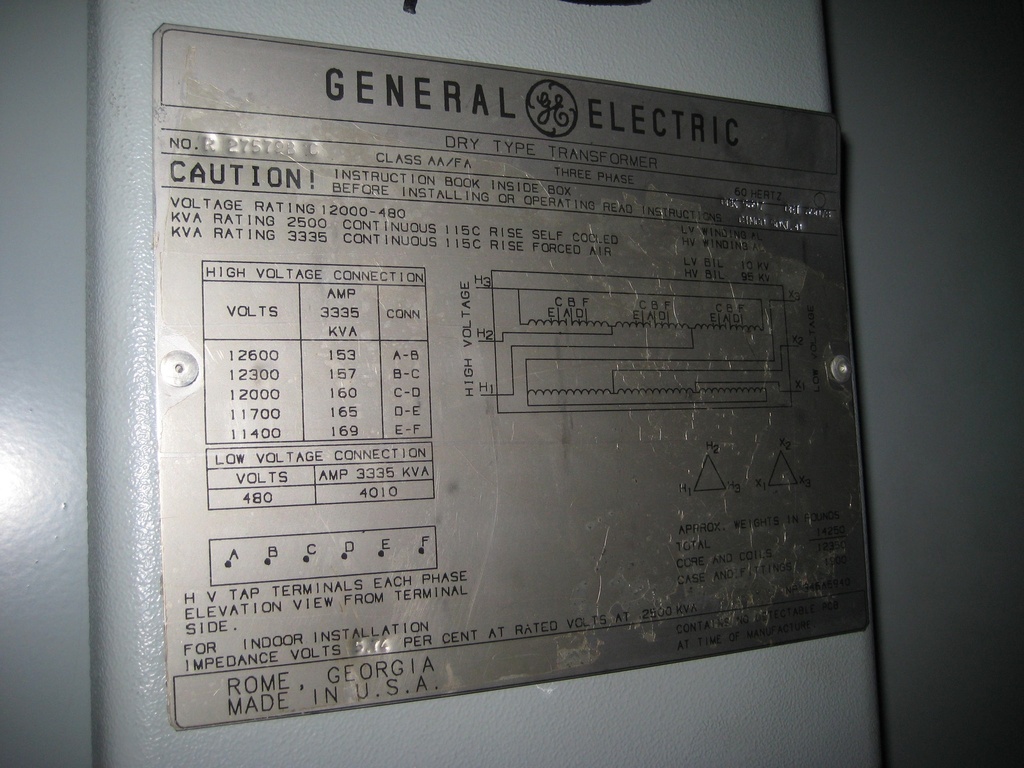

HIGH VOLTAGE: 12000 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 10 KV
TAPS: 12600-12300-12000-11700-11400
TOTAL WEIGHT: 14,250 LBS.
CORE & COILS: 12,350 LBS.
ENCLOSURE: 1,900 LBS.
DIMENSIONS: 101"H X 98 1/2"W X 62"D

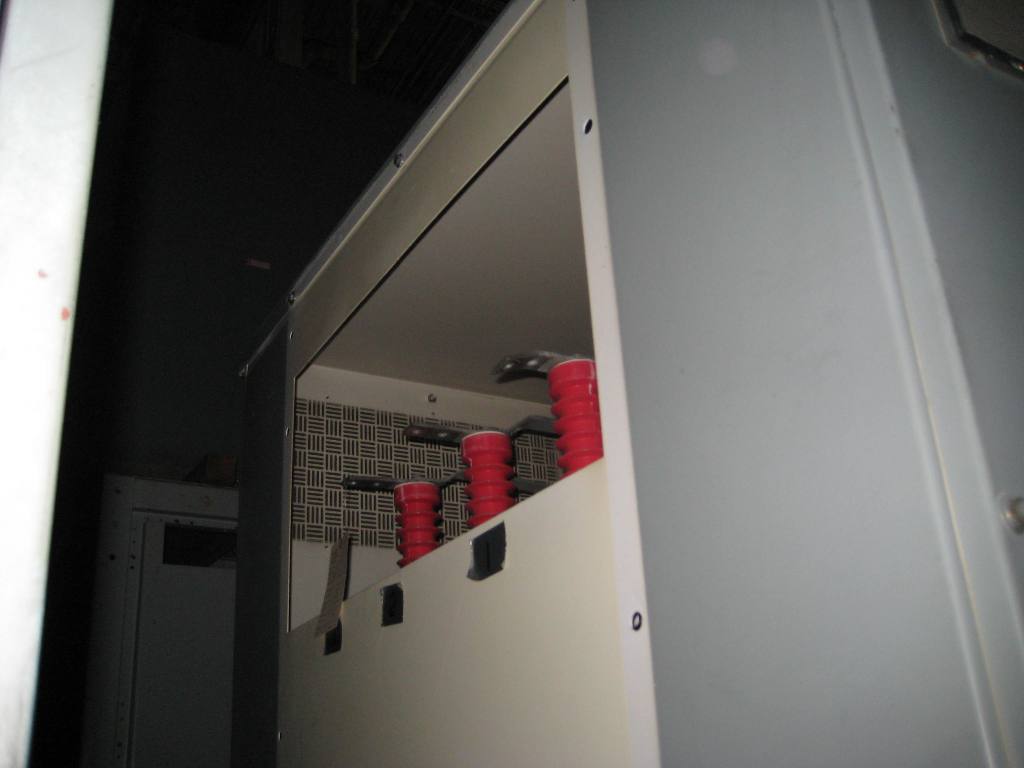

HV BUSHING: 78"H
LV BUSHING: 82.75"H
