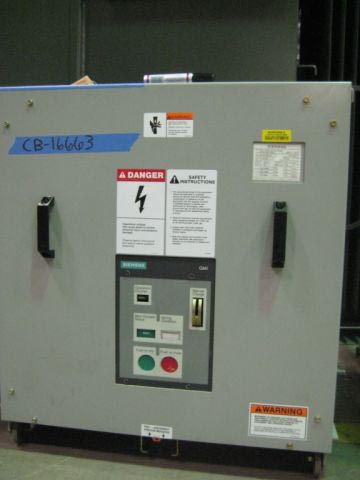

1200 Amp, SIEMENS, 15-GMI-500-1200-37, 13800 V., 1992, 125 VDC CLOSE & TRIP:1
VACUUM BREAKER
Product Number:
035716
Full Product Description
CB-16663

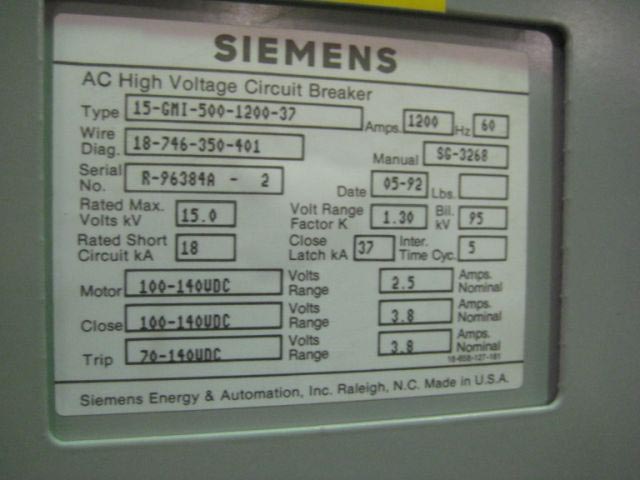

ONE (1) 1200 AMP SIEMENS VACUUM BREAKER
TYPE 15-GMI-500-1200-37
13.8 KV
60 HERTZ
15 KV MAX.
RATED SHORT CIRCUIT 18 KA
100-140 VDC MOTOR
100-140 VDC CLOSE
70-140 VDC TRIP
95 KV BIL
CLOSE AND LATCH 37 KA
INTER. TIME CYC. 5
INSTRUCTION MANUAL SG-3268
MFG. 05/1992
S/N R-96384A-2
WIRING DIAGRAM 18-746-350-401
ONE (1) 1200 AMP SIEMENS VACUUM BREAKER
TYPE 15-GMI-500-1200-37
13.8 KV
60 HERTZ
15 KV MAX.
RATED SHORT CIRCUIT 18 KA
100-140 VDC MOTOR
100-140 VDC CLOSE
70-140 VDC TRIP
95 KV BIL
CLOSE AND LATCH 37 KA
INTER. TIME CYC. 5
INSTRUCTION MANUAL SG-3268
MFG. 05/1992
S/N R-96384A-2
WIRING DIAGRAM 18-746-350-401
