16/17.9/23.8/29 MVA, Pri 26400 D, Sec 6900Y/3983, 1998, NIAGARA, STEP-UP:1

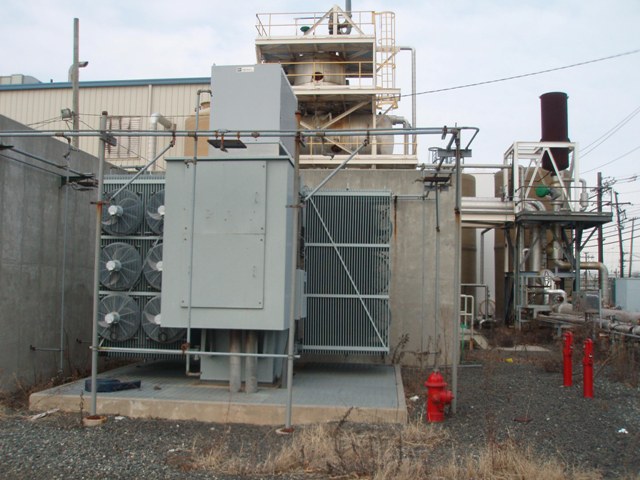

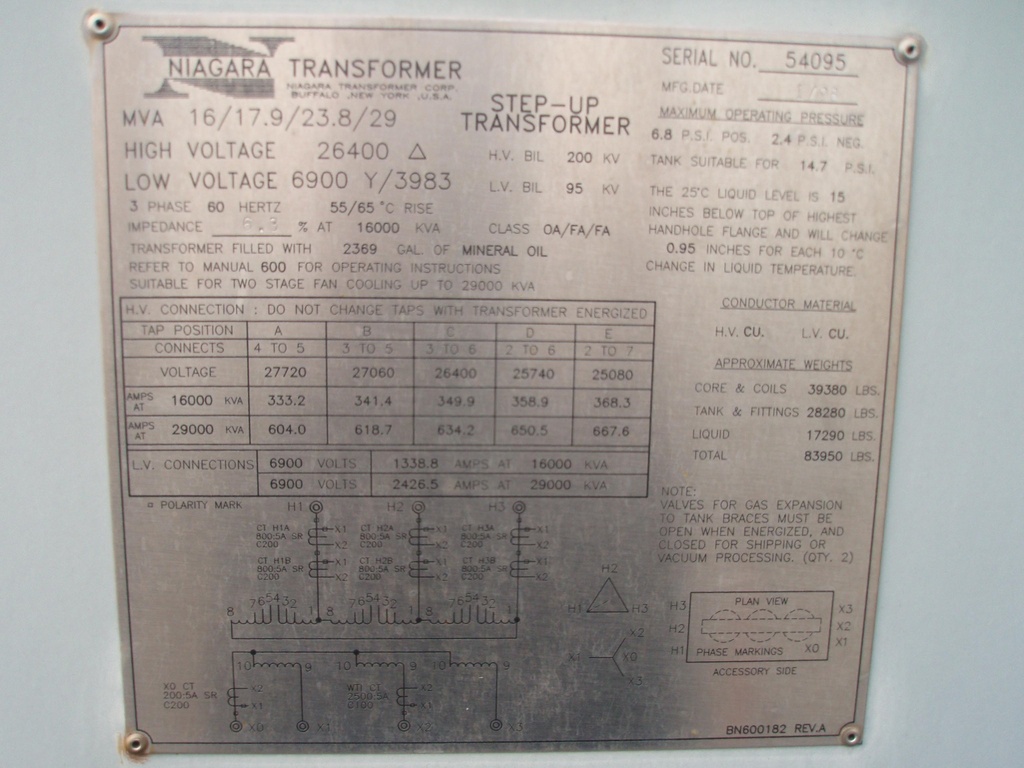

ONE (1) 16/17.9/23.8/29 MVA NIAGARA STEP-UP TRANSFORMER, 3 PHASE, 60 HERTZ,
55/65 DEG. C RISE, CLASS OA/FA/FA, 6.3% IMPEDANCE, COPPER WINDINGS,
6 X 800:5 HV CT'S CLASS C200, 1 X 200:5 NEUTRAL CT CLASS C200, 1 X
2500:5 LV CT CLASS C100, MFG. 1998

HIGH VOLTAGE: 26400 DELTA BIL: 200 KV
LOW VOLTAGE: 6900Y/3983 BIL: 95 KV
TAPS: 27720-27060-26400-25740-25080

TOTAL WEIGHT: 83,950 LBS.
CORE & COILS: 39,380 LBS.
TANK & FIT.: 28,280 LBS.
OIL: 17,290 LBS. (2369 GALS.)
