1000 KVA, Pri 13800 D, Sec 240 D, SQUARE D, LIVE FRONT, RADIAL FEED:1

JVT-3263<
<

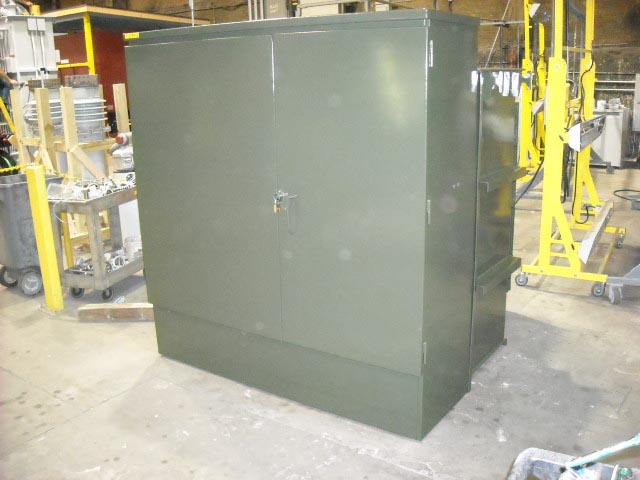

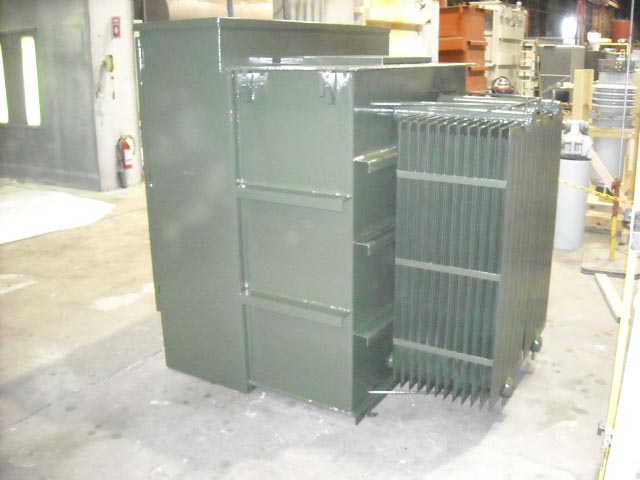

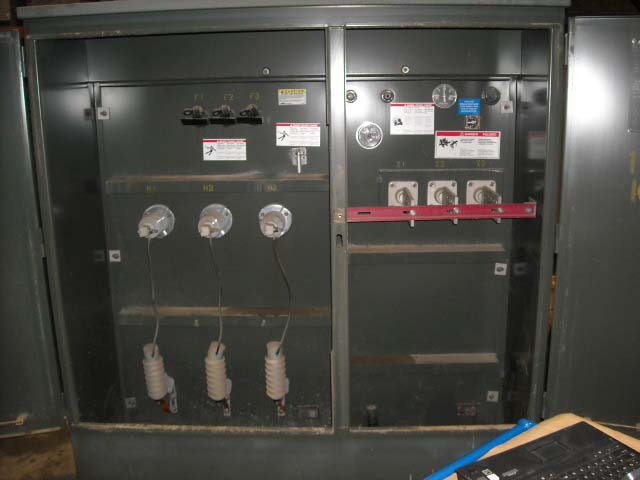

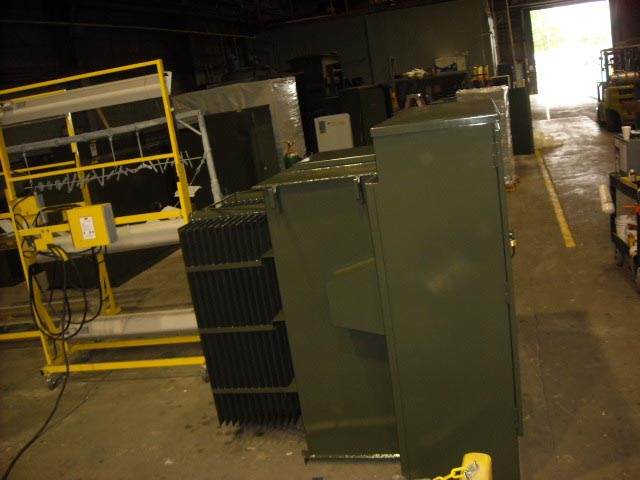

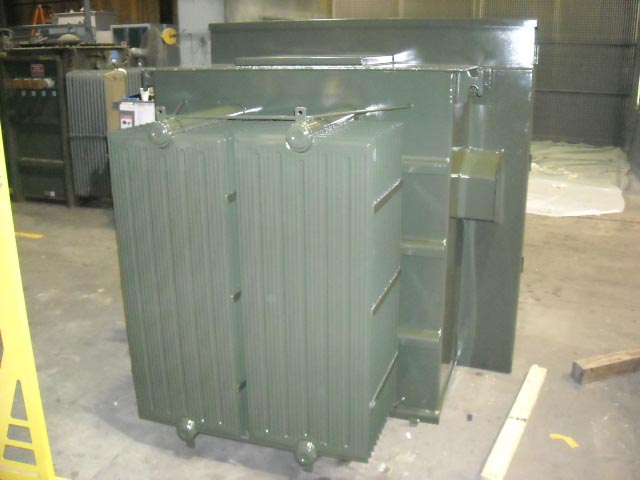

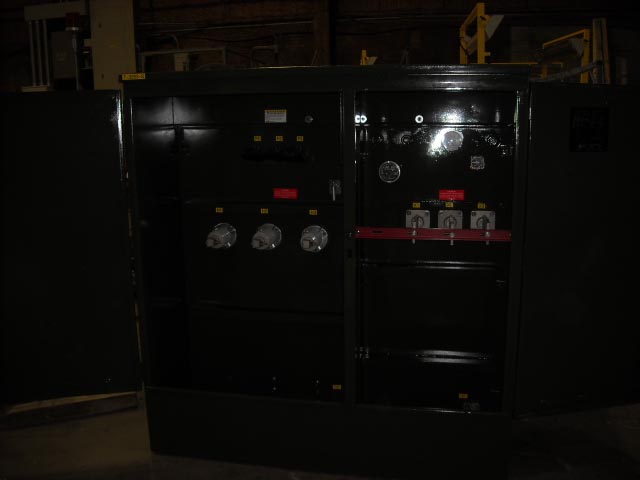

ONE (1) 1000 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,<
60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.86% IMPEDANCE, LIVE FRONT,<
RADIAL FEED, ALUMINUM WINDINGS, DRAIN AND SAMPLE VALVE, DIAL TYPE<
THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, BAYONET<

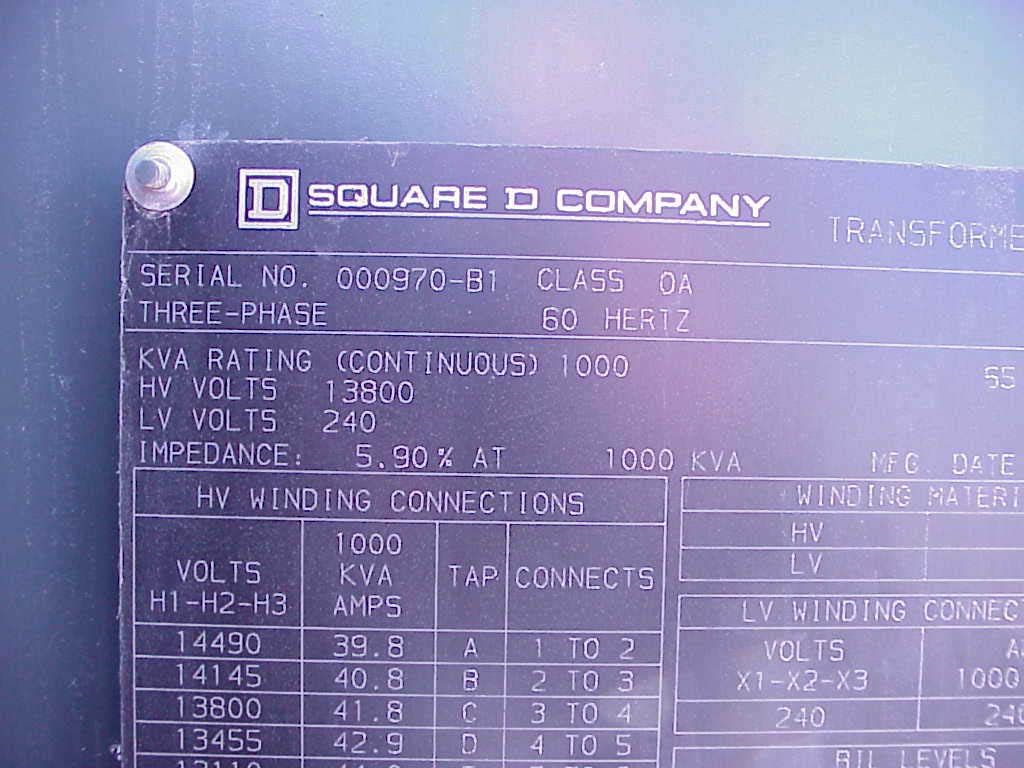

FUSES, MFG. 2001, S/N 000970-B1<
<
HIGH VOLTAGE: 13800 DELTA BIL: 95 KV<
LOW VOLTAGE: 240 DELTA BIL: 30 KV<
TAPS: 14490-14145-13800-13455-13110<
<
TOTAL WEIGHT: 7,325 LBS.<
CORE & COILS: 2,770 LBS.<
TANK & FIT.: 2,380 LBS.<
OIL: 2,175 LBS. (290 GALS.)<
DIMENSIONS: 76"H X 74"W X 74"D<
