750 KVA, Pri 4160 D, Sec 208Y/120, 1997, PAUWELS, SUBSTATION, COPPER, R-TEMP:1
SUBSTATION TRANSFORMER
Product Number:
035591
Full Product Description
JVT-3258

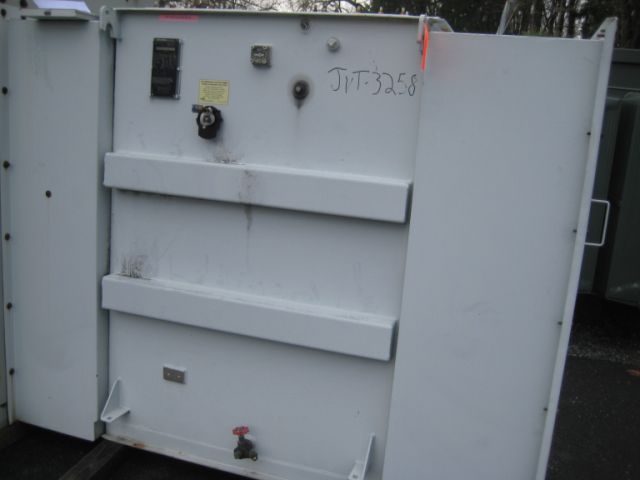

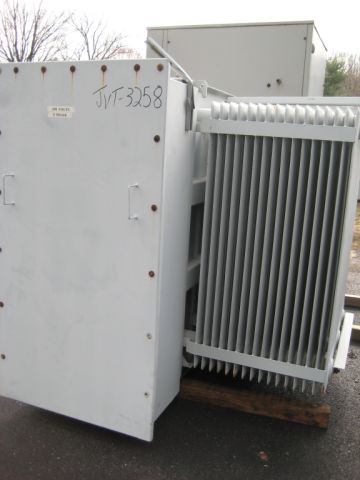

ONE (1) 750 KVA PAUWELS SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, 65 DEGREE
C RISE, CLASS OA, 5.75% IMPEDANCE, COPPER WINDINGS, FULL LENGTH ATC'S
HV AND LV, DRAIN AND SAMPLE VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL
GAUGE, PRESSURE VACUUM GAUGE, PRESSURE RELIEF DEVICE, MG. 1997, S/N
96L67024, R-TEMP

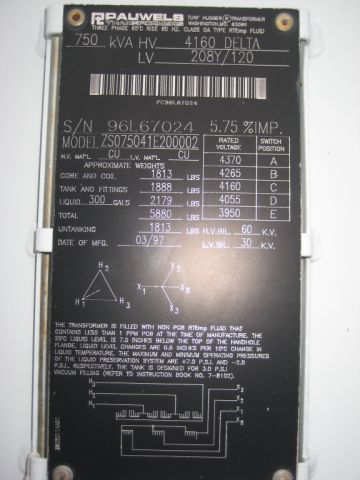

HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 4370-4265-4160-4055-3950
TOTAL WEIGHT: 5,880 LBS.
CORE & COILS: 1,813 LBS.
TANK & FIT.: 1,888 LBS.
OIL: 2,179 LBS. (300 GALS.)
DIMENSIONS: 67"H X 81 1/2"L X 65 1/2"D (46"L W/O ATC'S)
