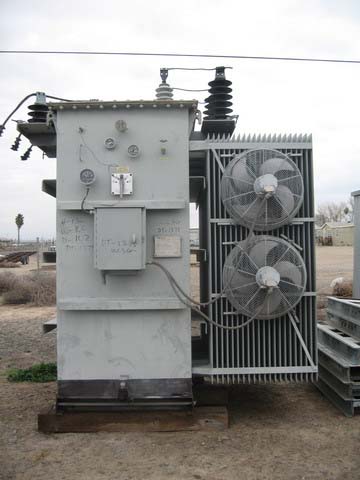

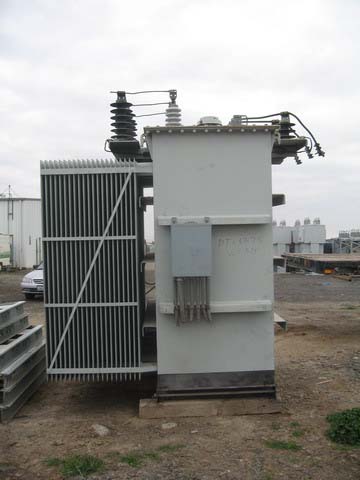

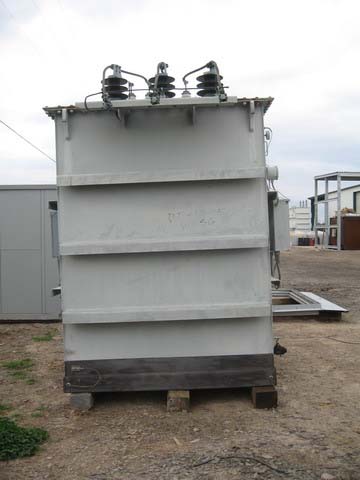

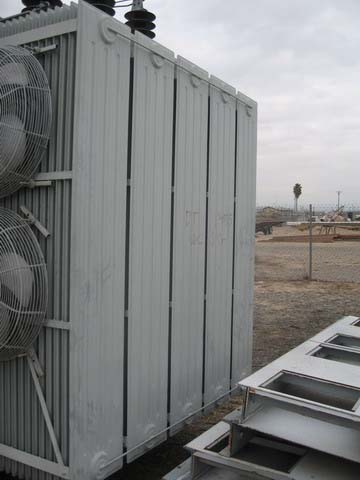

5000/6325 KVA, Pri 16500 D, Sec 4160Y/2400, 1996, NIAGARA, SUBSTATION:1

ONE (1) 5000/5625/6325 KVA NIAGARA SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,<
CLASS OA/FA, 55/65 DEG. C RISE, 3.3% IMPEDANCE, TOP X TOP BUSHINGS,<
LIQUID LEVEL GAUGE WITH CONTACTS, LIQUIE TEMPERATURE GAUGE WITH<
CONTACTS, PRESSURE RELIEF DEVICE, PRESSURE VACUUM GAUGE, MFG. 1996<
<

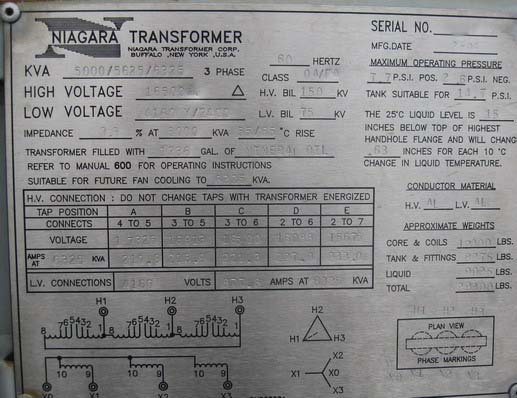

HIGH VOLTAGE: 16500 DELTA BIL: 150 KV<
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV<
TAPS: 17325-16913-16500-16088-15675<
<
TOTAL WEIGHT: 29,300 LBS.<
CORE & COILS: 12,000 LBS.<
TANK & FIT.: 8,275 LBS.<
OIL: 9,025 LBS. (1,236 GALS.)<
DIMENSIONS: 136"H X 100"W X 106"D<
