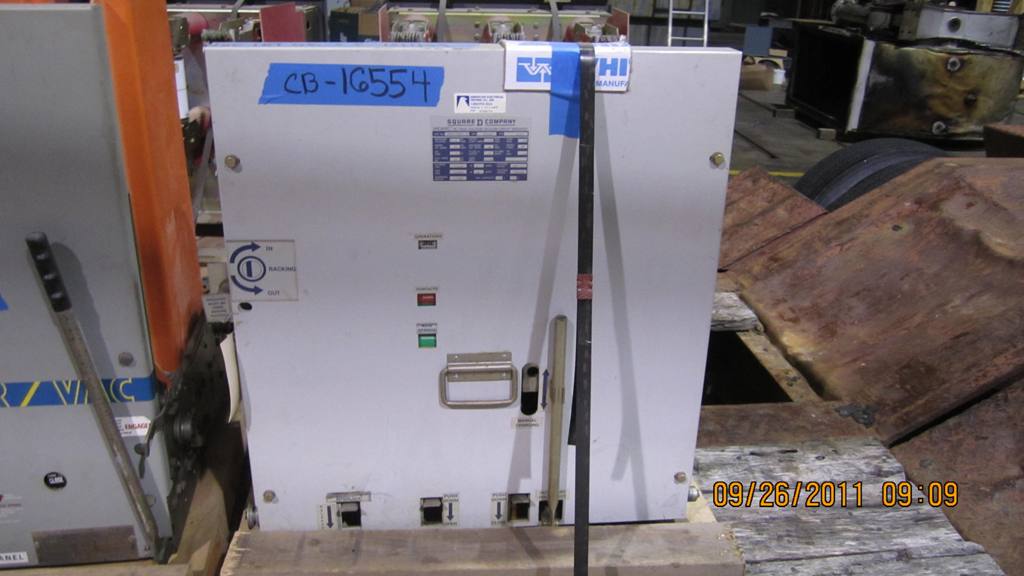

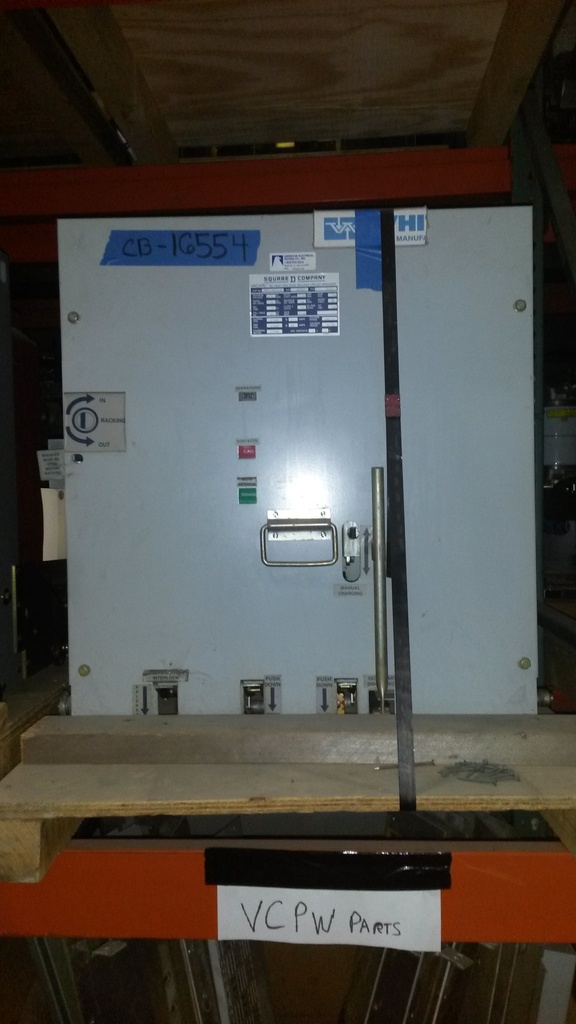

1200 Amp, SQUARE D, VAD3-05025-12, 4760 V, E/O, D/O, 125 VDC CLOSE/TRIP
VACUUM BREAKER
Product Number:
035478
Full Product Description
CB-16554

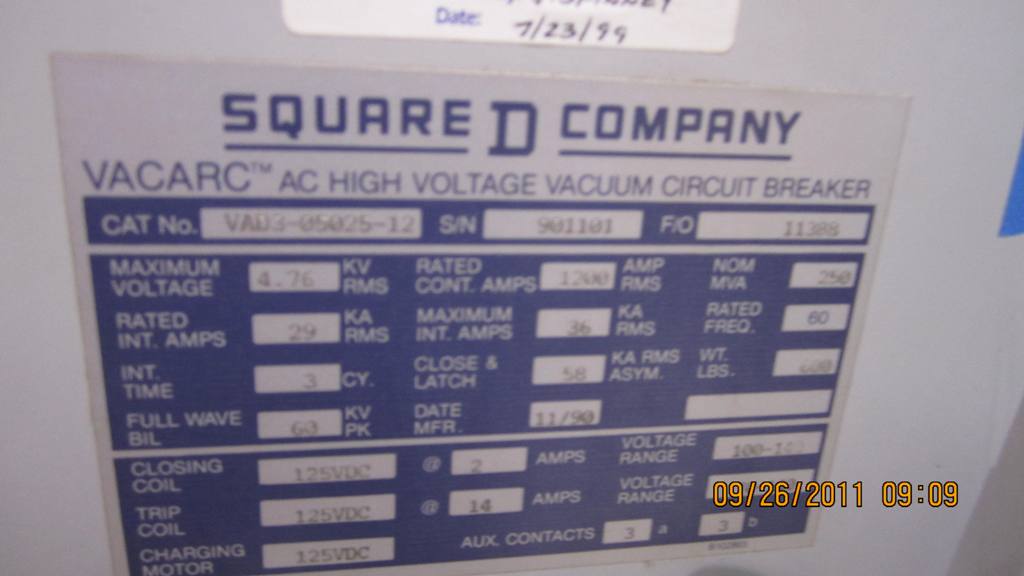

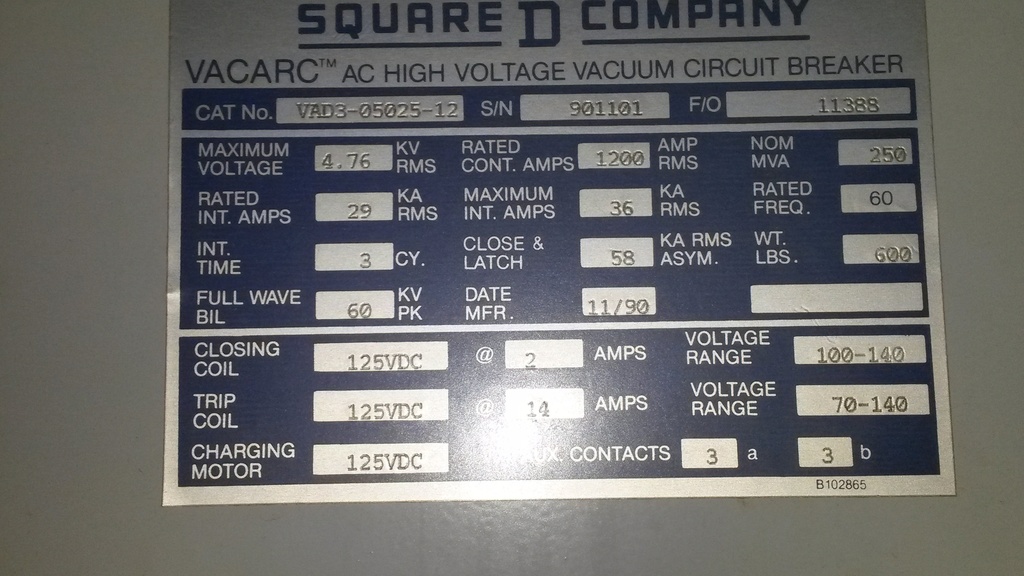

ONE (1) 1200 AMP SQUARE D VACUUM CIRCUIT BREAKER
TYPE VAD3-05025-12
4760 VOLTS
4.76 KV MAX
60 HERTZ
60 BIL KV
3 CYCLE INTERRUPT
29 KA SHORT INTERRUPT
36 KA RMS MAXIMUM INT. AMPS
58 KA ASYM CLOSE & LATCH
250 MVA NOM.
ELECTRICALLY OPERATED
DRAW-OUT
125 VDC CLOSE, TRIP AND CHARGING MOTOR
AUXILIARY CONTACTS 3A AND 3 B
WEIGHT: 600 LBS
ONE (1) 1200 AMP SQUARE D VACUUM CIRCUIT BREAKER
TYPE VAD3-05025-12
4760 VOLTS
4.76 KV MAX
60 HERTZ
60 BIL KV
3 CYCLE INTERRUPT
29 KA SHORT INTERRUPT
36 KA RMS MAXIMUM INT. AMPS
58 KA ASYM CLOSE & LATCH
250 MVA NOM.
ELECTRICALLY OPERATED
DRAW-OUT
125 VDC CLOSE, TRIP AND CHARGING MOTOR
AUXILIARY CONTACTS 3A AND 3 B
WEIGHT: 600 LBS
