  2. 156/208/260 MVA, Pri 138000GRDY/79670, Sec 15600 D, 2002, WAUKESHA, GSU:-3

156/208/260 MVA, Pri 138000GRDY/79670, Sec 15600 D, 2002, WAUKESHA, GSU:-3

https://belyeapower.redstormlabs.com/web/image/product.template/25115/image_1920?unique=632d99c

GENERATOR STEP-UP TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 035448
    Request Quote

    Full Product Description

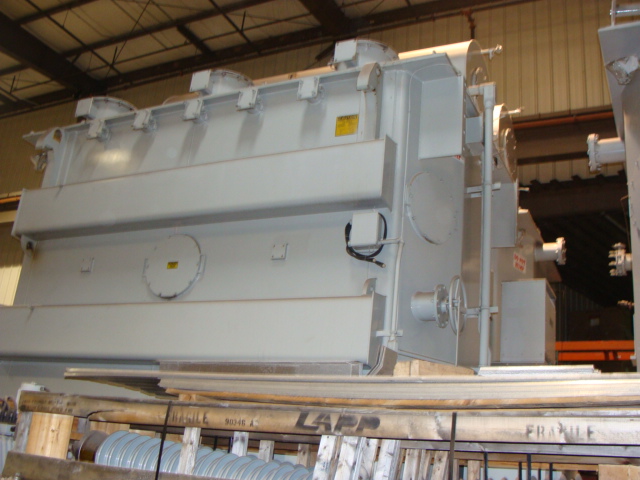

    ONE (1) UNUSED 156/208/260 MVA WAUKESHA GENERATOR STEP-UP TRANSFORMER,
    3 PHASE, 60 HERTZ, 55/65 DEG. C RISE, CLASS OA/FA/FA, MFG. 2002

    HIGH VOLTAGE: 138000GRDY/79670 BIL: 650 KV
    LOW VOLTAGE: 15600 DELTA BIL: 150 KV
    NEUTRAL: BIL: 150 KV

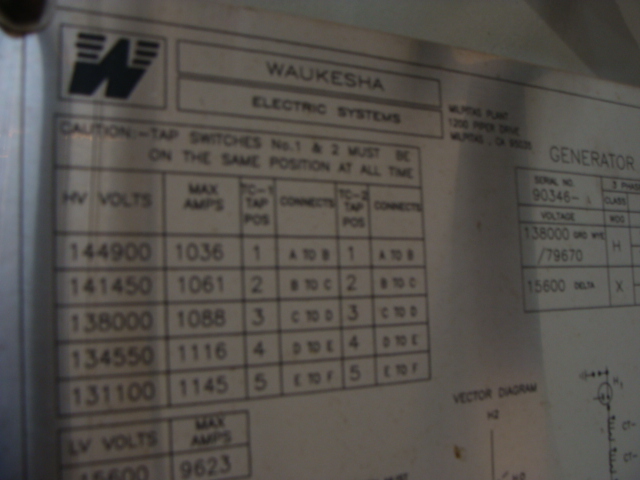

    TAPS: 144900-141450-138000-134550-131100


    APPROXIMATE WEIGHT:
    UNTANKING: 192,000 LBS.
    TANK AND FITTINGS: 90,000 LBS.
    MAIL TANK OIL: 86,400 LBS. (11,370 GALS.)
    CONSERVATOR OIL: 4,600 LBS. (600 GALS.)
    TOTAL WEIGHT: 373,000 LBS.
    DIMENSIONS: 260"H X 165"W X 188"L
