1200 Amp, GENERAL ELECTRIC, VB13.8-1500-0, 13.8 KV, 125 VDC C & T, E/O, D/O:1

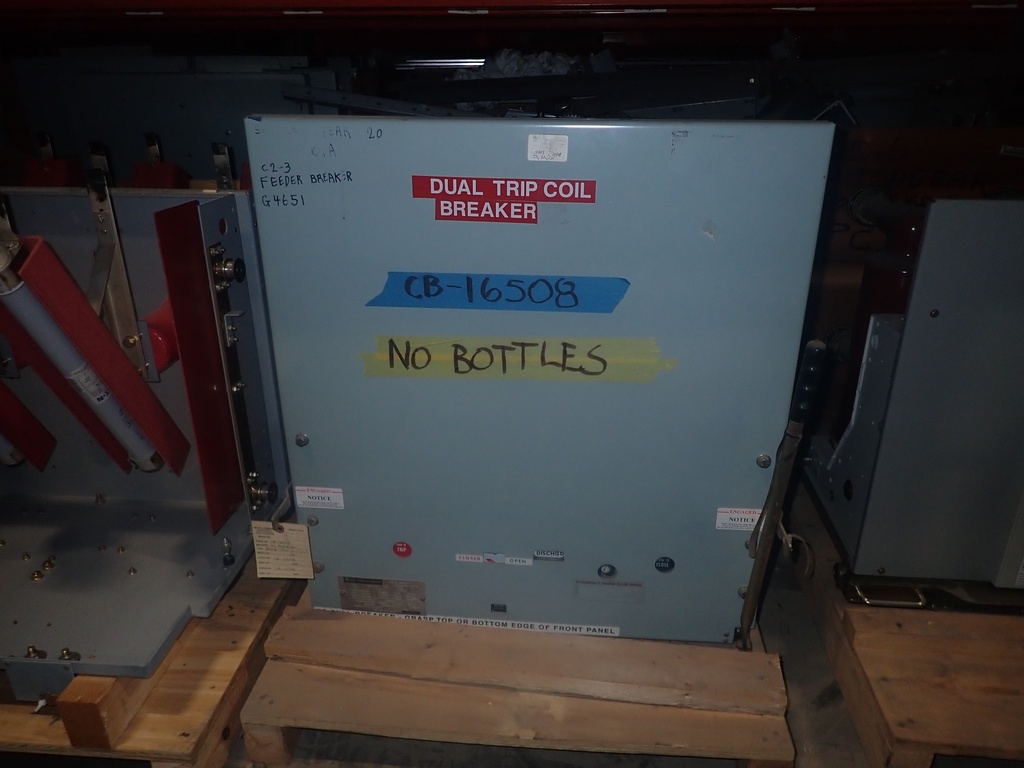

CB-16508:

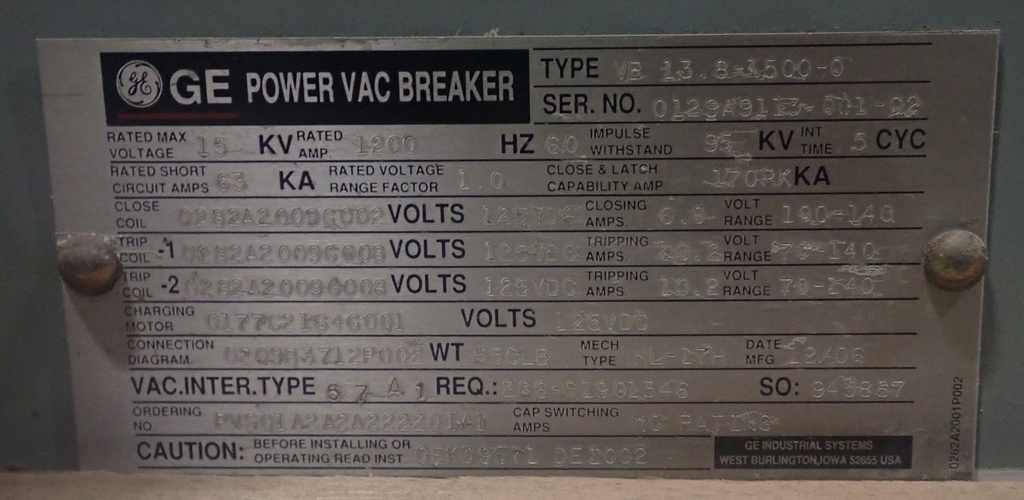

ONE (1)- 1200 AMP GENERAL ELECTRIC POWER VAC BREAKER

TYPE VB 13.8-1500-0
13.8 KV
15 KV MAX
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
63 KA SHORT CIRCUIT
1.0 VOLTAGE K FACTOR
170 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
TRIP COIL -2: 0282A20090008
125 VDC TRIP COIL -2
CHARGING MOTOR: 0177C2164G001
125 VDC CHARGING MOTOR
CONNECTION DIAGRAM: 0209B3712P002
ML-17H MECHANISM

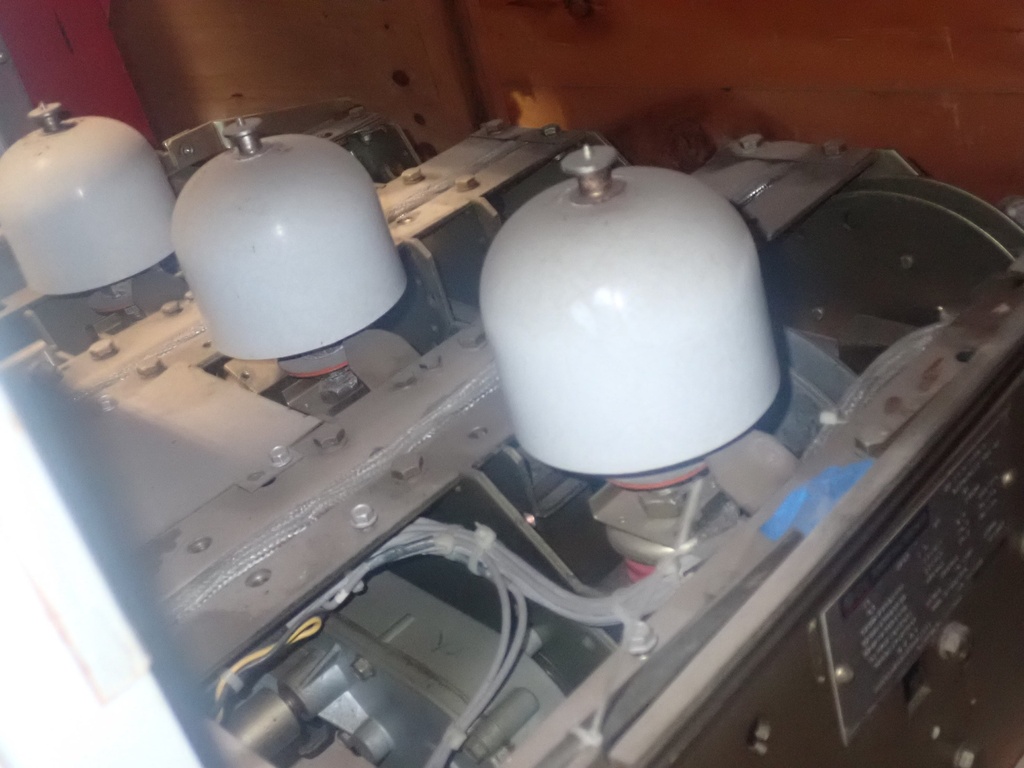

VACUUM INTERRUPTER TYPE 67A1
ELECTRICALLY OPERATED
DRAW-OUT
WEIGHT: 550 LBS.
IB: GEK39671 DEI002
