3000 Amp, GENERAL ELECTRIC, VB13.8-1500-0, 13.8 KV, 125 VDC C & T, E/O, D/O:1
VACUUM BREAKER
Product Number:
035422
Full Product Description
CB-16497:

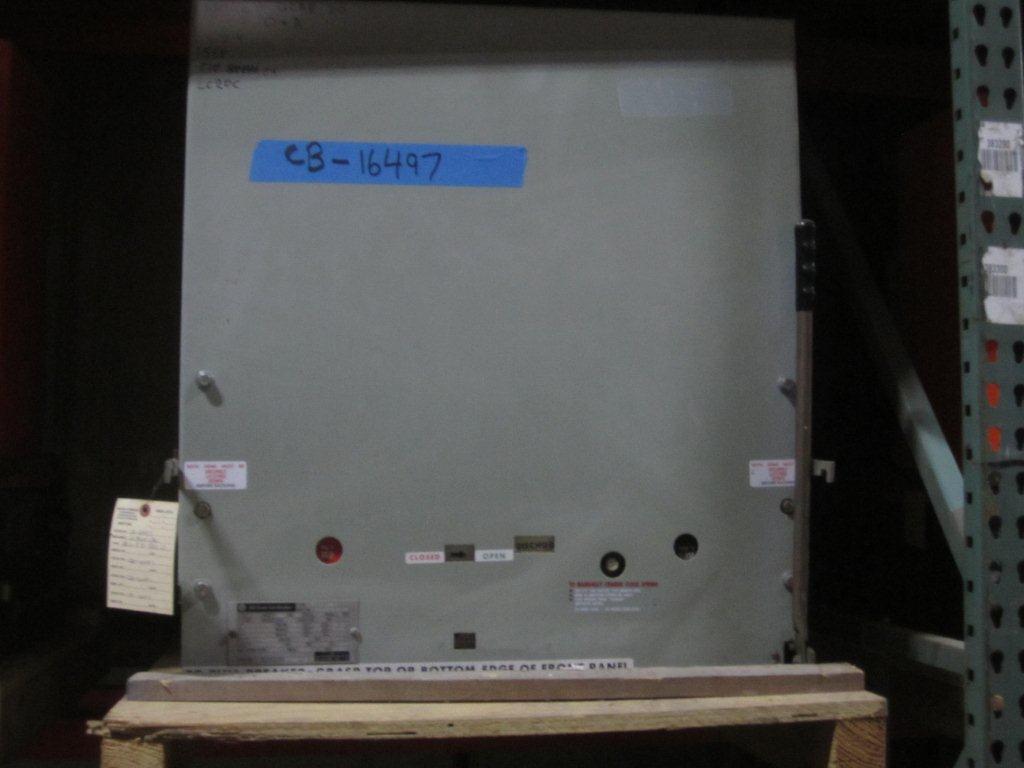

ONE (1)- 3000 AMP GENERAL ELECTRIC POWER VACUUM BREAKER

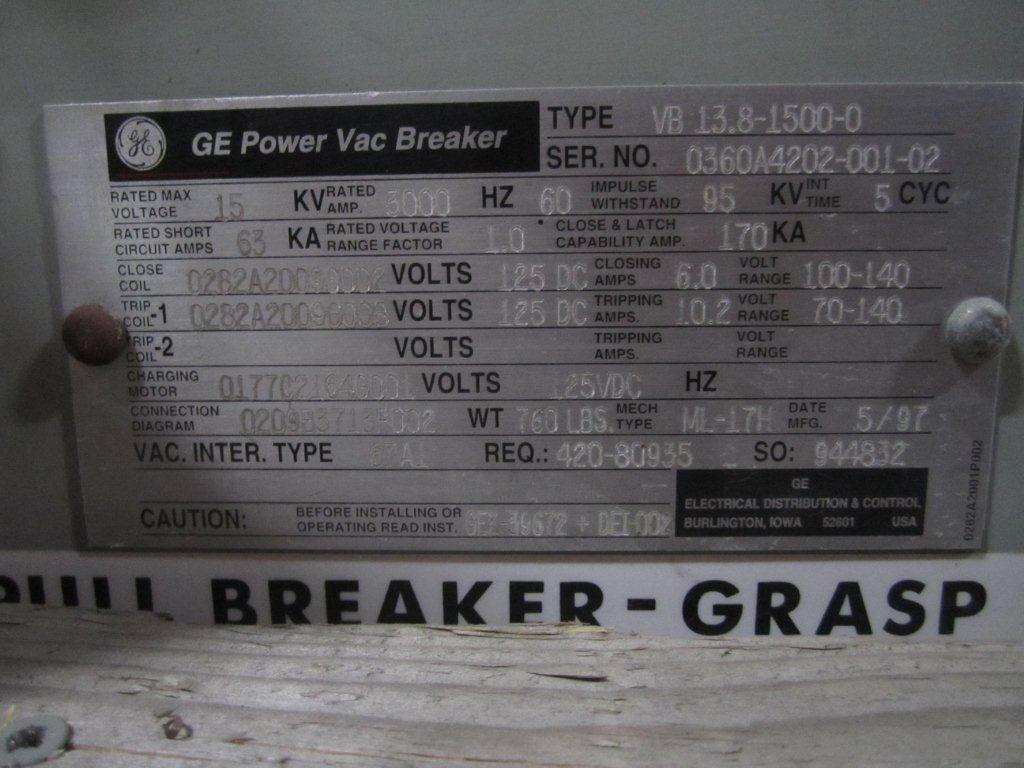

TYPE: VB 13.8-1500-0
1500 MVA INTERRUPT
15 KV MAX
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
63 KA SHORT CIRCUIT
1.0 VOLTAGE K FACTOR
125 VDC CLOSE & TRIP
170 KA CLOSE & LATCH
CHARGING MOTOR: 017702164G001
CONNECTION DIAGRAM: 0209B3713P002
ML-17H MECHANISM
VACUUM INTERRUPTER TYPE 67A1
DRAW-OUT
ELECTRICALLY OPERATED
ONE (1)- 3000 AMP GENERAL ELECTRIC POWER VACUUM BREAKER
TYPE: VB 13.8-1500-0
1500 MVA INTERRUPT
15 KV MAX
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
63 KA SHORT CIRCUIT
1.0 VOLTAGE K FACTOR
125 VDC CLOSE & TRIP
170 KA CLOSE & LATCH
CHARGING MOTOR: 017702164G001
CONNECTION DIAGRAM: 0209B3713P002
ML-17H MECHANISM
VACUUM INTERRUPTER TYPE 67A1
DRAW-OUT
ELECTRICALLY OPERATED
