2000/2240/2300/2516 KVA, Pri 12470 D, Sec 480Y/277, GE, SILICONE, ALUMINUM, SUB
SUBSTATION TRANSFORMER
Product Number:
035363
Full Product Description
T-3229

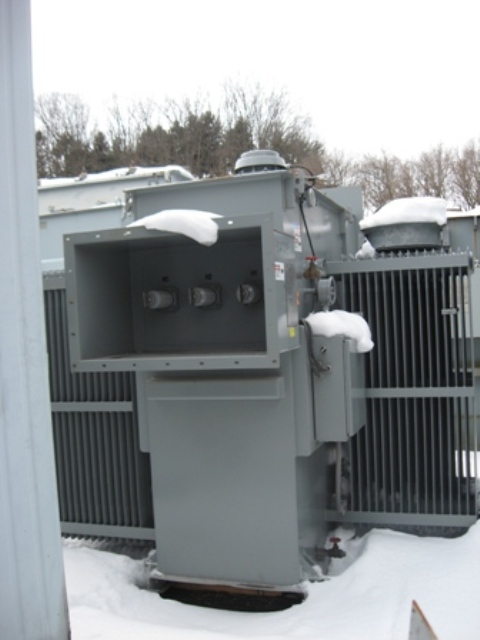

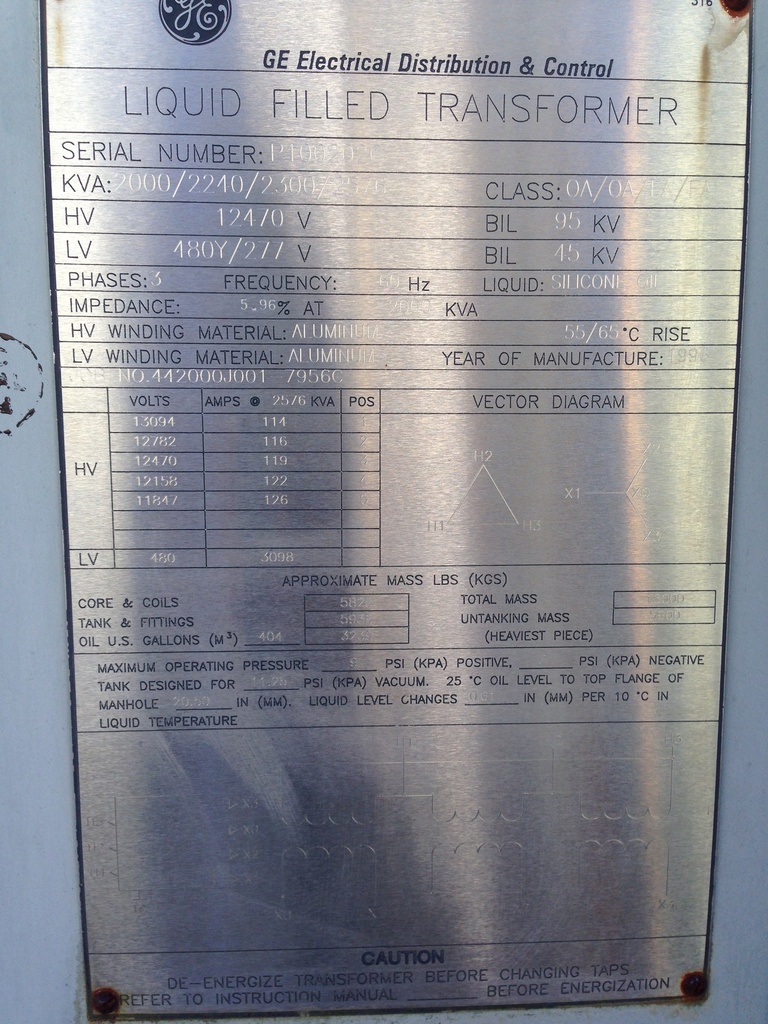

ONE (1) 2000/2240/2300/2516 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER

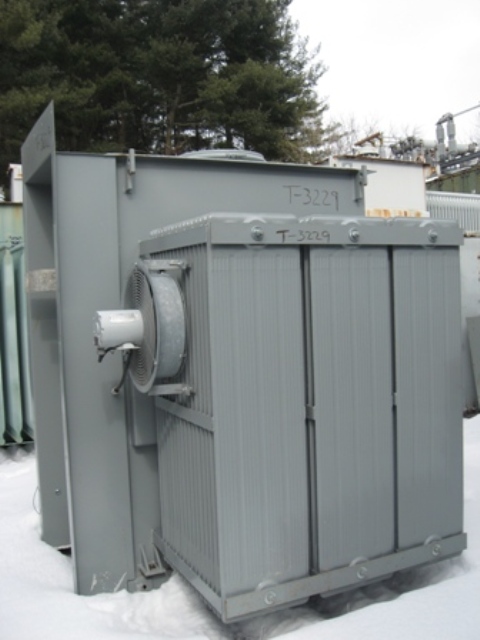

3 PHASE - 60 HERTZ - 55/65 DEG. C RISE - CLASS OA/FA - 5.96% IMPEDANCE

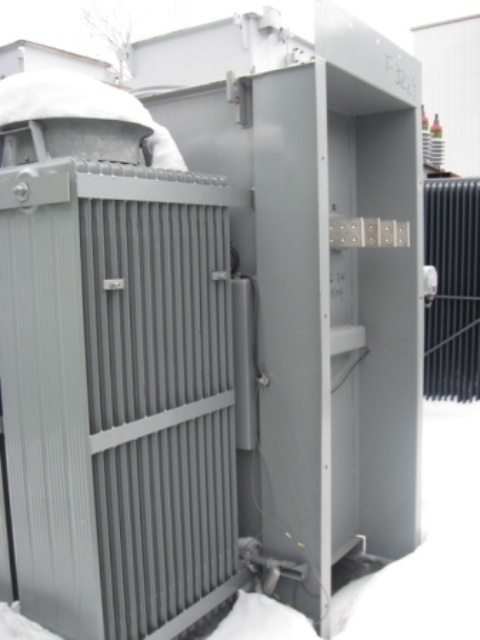

HV & LV ALUMINUM WOUND - THROAT X THROAT - SILICONE
MFG. 1996 - S/N P100202C
HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 45 KV
TAPS: 13094-12782-12470-12158-11847
TOTAL WEIGHT: 15,000 LBS.
CORE & COILS: 5,825 LBS.
TANK & FIT.: 5,936 LBS.
OIL: 3,239 LBS. (404 GALS.)
DIMENSIONS: 90"H X 87"W X 98"D
