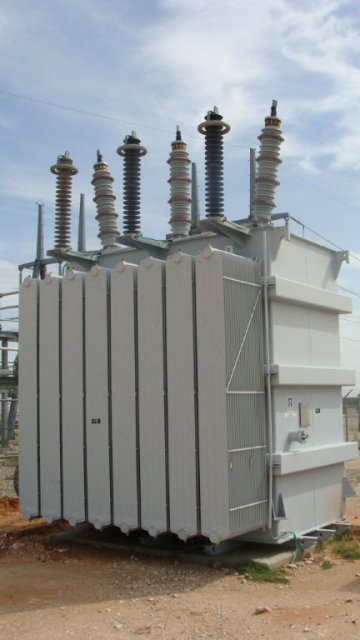

12000/20000 KVA, Pri 138000 D, Sec 13200Y/7620, SUNBELT, SUBSTATION:1

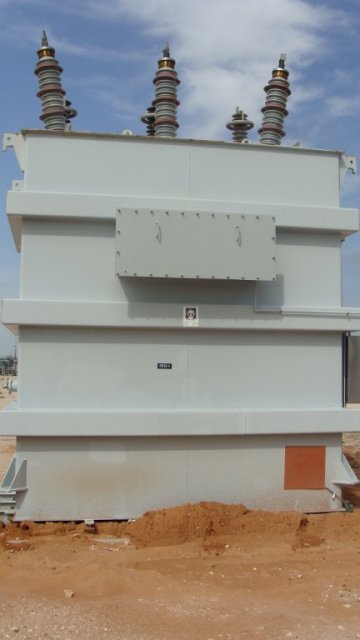

ONE (1) 12000/20000 KVA SUNBELT SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,<
CLASS OA/FA/FA, 55/65 DEGREE C RISE, 9.33% IMPEDANCE, COPPER
WINDINGS,<
DRAIN AND SAMPLE VALVE, DIAL TYPE THERMOMETER WITH CONTACTS, LIQUID<
LEVEL GAUGE WITH CONTACTS, PRESSURE VACUUM GAUGE, PRESSURE RELIEF<

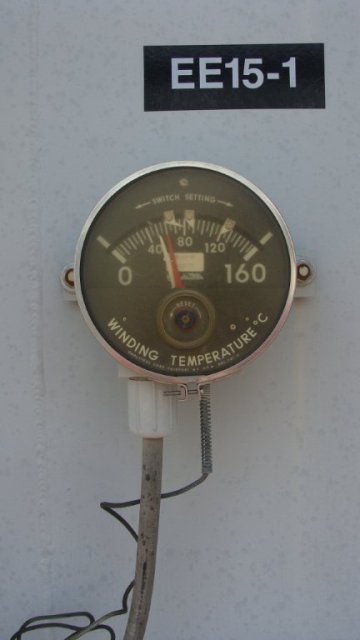

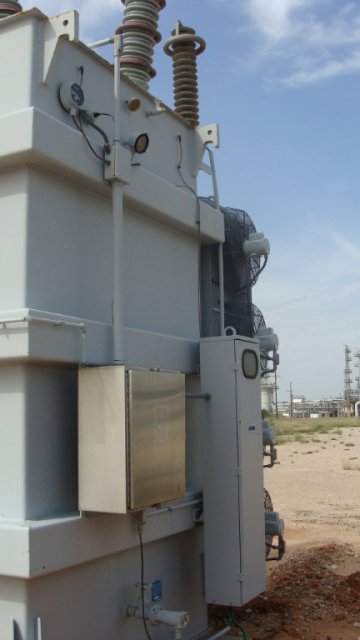

DEVICE WITH CONTACTS, HV ARRESTERS, WINDING TEMPERATURE INDICATOR,<

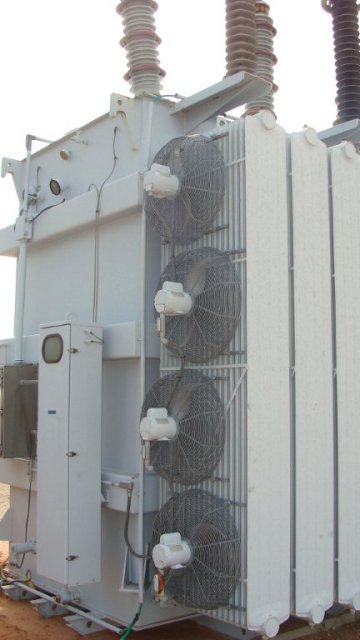

SUDDEN PRESSURE RELAY, AUXILIARY CONTROL CABINET, FANS, FAN VOLTAGE<
240 VAC SINGLE PHASE, NITROGEN PRESERVATION SYSTEM, HV TOP ANSI 4,<
LV SIDE ANSI 2 THROAT, MFG. 1997 , M 1,2,3 - 100:5 C50, CT 4,5,6 -<
1200:5 C800, CT7 - 1200:56 C10<
<

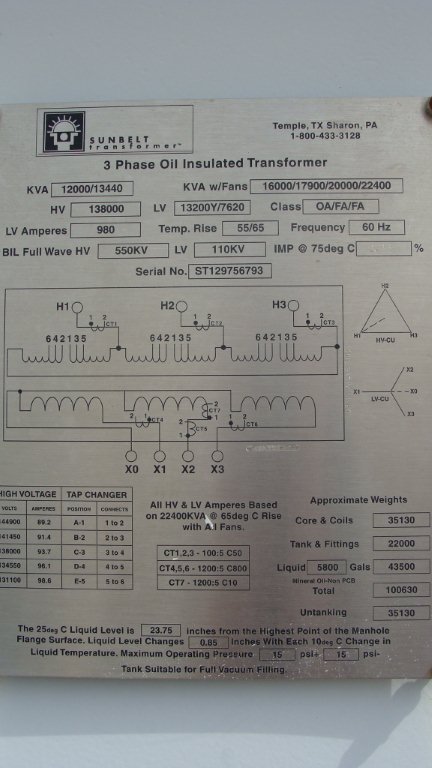

HIGH VOLTAGE: 138000 DELTA BIL: 550 KV<
LOW VOLTAGE: 13200Y/7620 BIL: 110 KV<
TAPS: 144900-141450-138000-134550-131100<
<
TOTAL WEIGHT: 115,000 LBS.<
CORE & COILS: 35,130 LBS.<
TANK & FIT.: 22,000 LBS.<
OIL: 43,500 LBS. (5800 GALS.)<
DIMENSIONS: 170"H X 147"W X 162"D<
LV BUSHING: 115"H<
FOOTPRINT: 112"W X 158"D<
