2000 KVA, Pri 13200 D, Sec 480 D, GENERAL ELECTRIC, LIVE FRONT, RADIAL FEED

T-3206

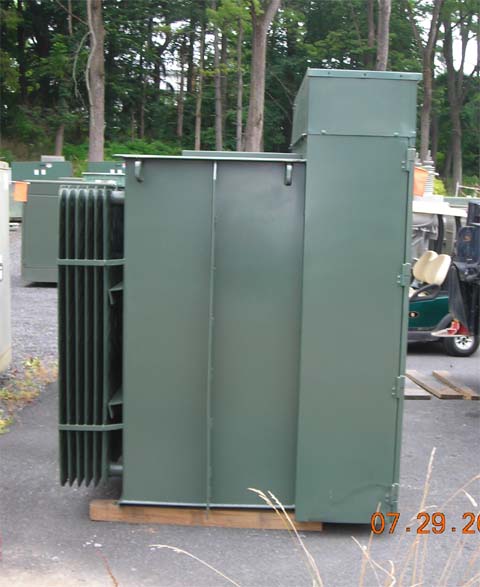

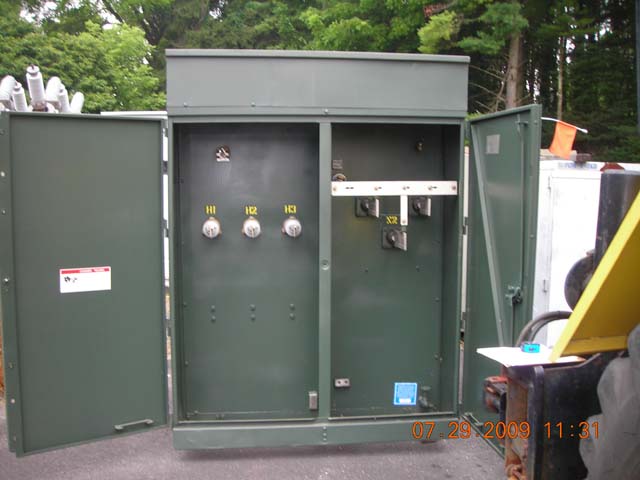

ONE (1) 2000 KVA GENERAL ELECTRIC COMPARTMENTALIZED PADMOUNT TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.25% IMPEDANCE, LIVE
FRONT, RADIAL FEED, ALUMINUM WINDINGS, RECONDITIONED, MFG. 1995,

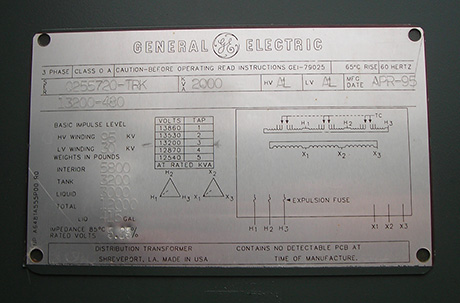

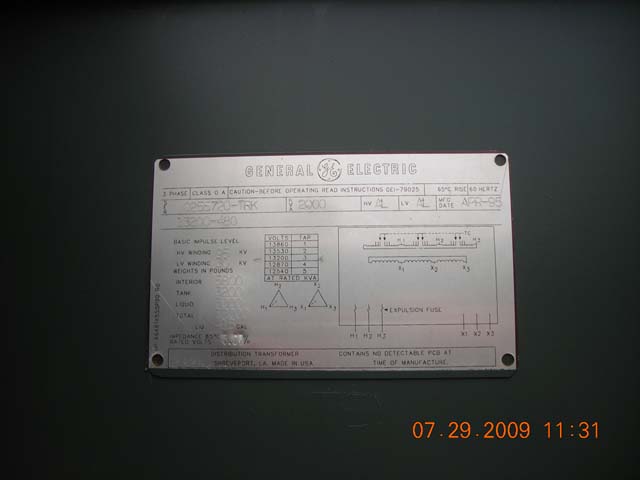

S/N Q255720-TRK, CONNECTION BOX ON TOP, GEI-79025

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 12,000 LBS.
CORE & COILS: 5,000 LBS.
TANK & FIT.: 3,200 LBS.
OIL: 415 GALS. 3,000 LBS.
DIMENSIONS: 88"H X 72"W X 70"L
