3750/5000 KVA, Pri 12470 D, Sec 4160Y/2402, 1995, GE, INDOOR DRY TYPE:1
INDOOR DRY TYPE TRANSFORMER
Product Number:
035006
Full Product Description
T-3195

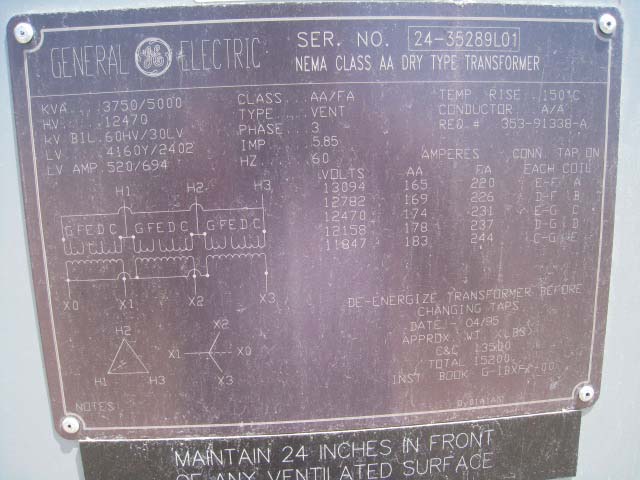

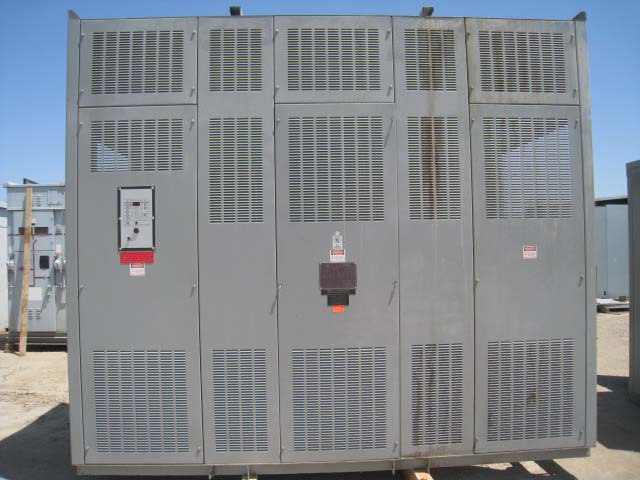

ONE (1) 3750/5000 KVA GENERAL ELECTRIC DRY TYPE TRANSFORMER, INDOOR, 3 PHASE,
60 HERTZ, CLASS AA/FA, 150 DEG. C RISE, 5.85% IMPEDANCE, MFG. 1995,
S/N 24-35289L01, ALUMINUM WINDINGS
HIGH VOLTAGE: 12470 DELTA BIL: 60 KV
LOW VOLTAGE: 4160Y/2402 BIL: 30 KV
TAPS: 13094-12782-12470-12158-11847
TOTAL WEIGHT: 15,200 LBS.
CORE & COILS: 13,500 LBS.
DIMENSIONS: 115"H X 130"W X 66"D
ONE (1) 3750/5000 KVA GENERAL ELECTRIC DRY TYPE TRANSFORMER, INDOOR, 3 PHASE,
60 HERTZ, CLASS AA/FA, 150 DEG. C RISE, 5.85% IMPEDANCE, MFG. 1995,
S/N 24-35289L01, ALUMINUM WINDINGS
HIGH VOLTAGE: 12470 DELTA BIL: 60 KV
LOW VOLTAGE: 4160Y/2402 BIL: 30 KV
TAPS: 13094-12782-12470-12158-11847
TOTAL WEIGHT: 15,200 LBS.
CORE & COILS: 13,500 LBS.
DIMENSIONS: 115"H X 130"W X 66"D
