6000/6720/6500/8400 KVA, Pri 13800 D, Sec 2400 D, WESTINGHOUSE, SUB:1

T-3193

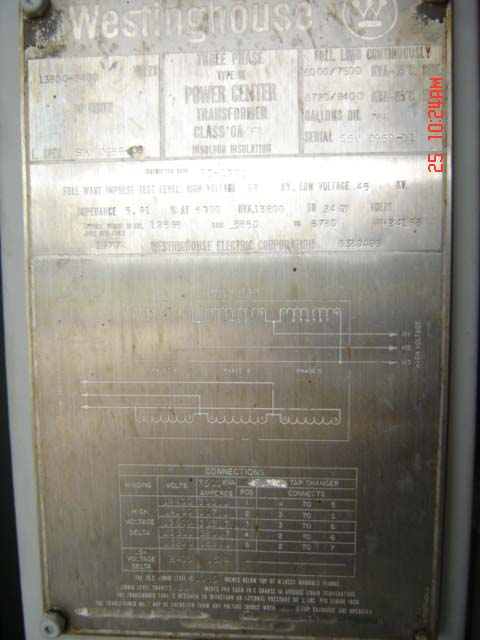

ONE (1) 6000/6720/7500/8400 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE,<
60 HERTZ, 55/65 DEGREE C RISE, CLASS ONAN/ONAF, 5.91% IMPEDANCE,
DRAIN<
AND SAMPLE VALVE, DIAL TYPE THERMOMETER WITH CONTACTS, LIQUID LEVEL<
GAUGE WITH CONTACTS, PRESSURE VACUUM GAUGE, PRESSURE RELIEF DEVICE <

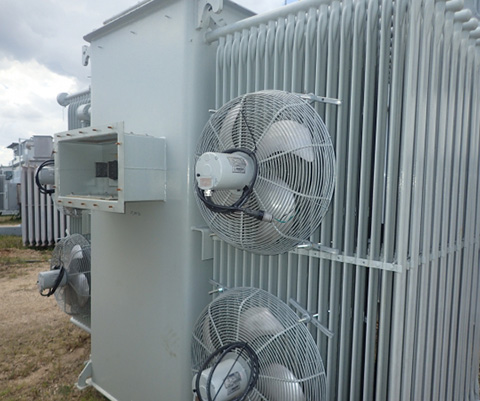

WITH CONTACTS, WINDING TEMPERATURE INDICATOR, FANS, HV SIDE IN ATC,<
LV SIDE IN ATC, S/N SGV0959-08, MFG. 1977<
<
HIGH VOLTAGE: 13800 DELTA BIL: 95 KV<
LOW VOLTAGE: 2400 DELTA BIL: 45 KV<
TAPS: 14400-14100-13800-13500-13200<
<
TOTAL WEIGHT: 24,185 LBS.<
CORE & COILS: 12,585 LBS.<
TANK & FIT.: 5,850 LBS.<
OIL: 5,750 LBS. (766 GALS.)<
SHIPPING: 106"H X 114"W X 122"D<
HV BUSHING: 63"H<
LV BUSHING: 64"H<
<
