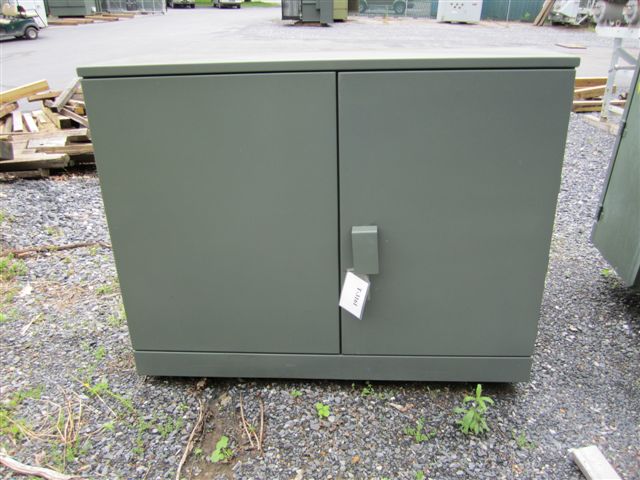

175 KVA, Pri 13200Y/7620, Sec 120 D, GENERAL ELECTRIC, LIVE FRONT/LOOP FEED:1

ONE (1) 175 KVA GENERAL ELECTRIC COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3
PHASE, 60 HERTZ, CLASS OA, 65 DEGREE C RISE, 2.03% IMPEDANCE, LIVE
FRONT, LOOP FEED, DRAIN & SAMPLE VALVE, DIAL TYPE THERMOMETER,
LIQUID LEVEL GAUGE, GEI-79023, MFG. 2005, S/N M313280TPBA

HIGH VOLTAGE: 13200GRDY/7620 BIL: 95 KV

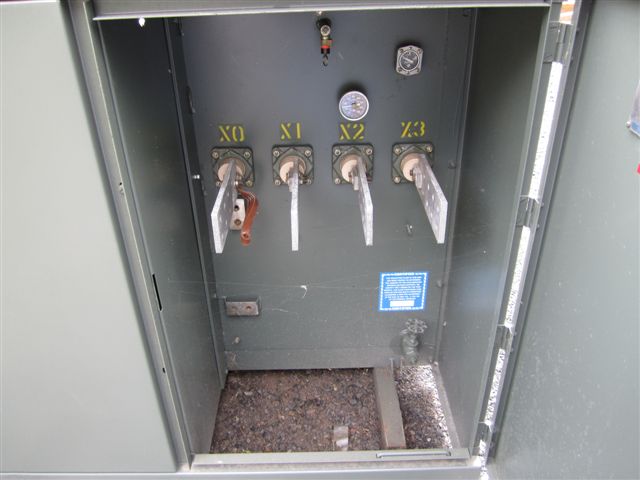

LOW VOLTAGE: 120 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 3,200 LBS.
CORE & COILS: 1,100 LBS.
TANK & FIT.: 1,100 LBS.
OIL: 140 GALS. 1,000 LBS.
DIMENSIONS: 51"H X 66"W X 53"D
HV BUSHING: 39"H X 33"H X 27"H
LV BUSHING: 30"H
