2500 KVA, Pri 13200 D, Sec 480 D, SQUARE D, 1993, SUBSTATION, COPPER:1

T-5554

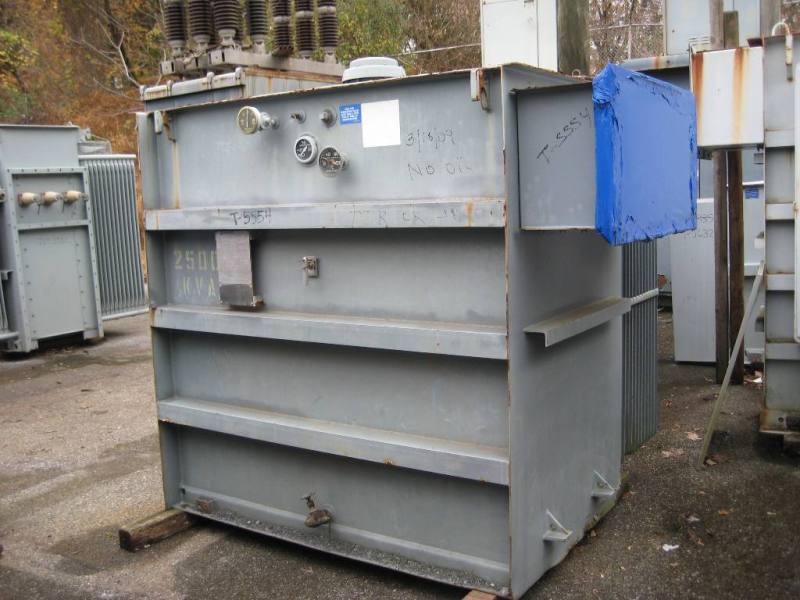

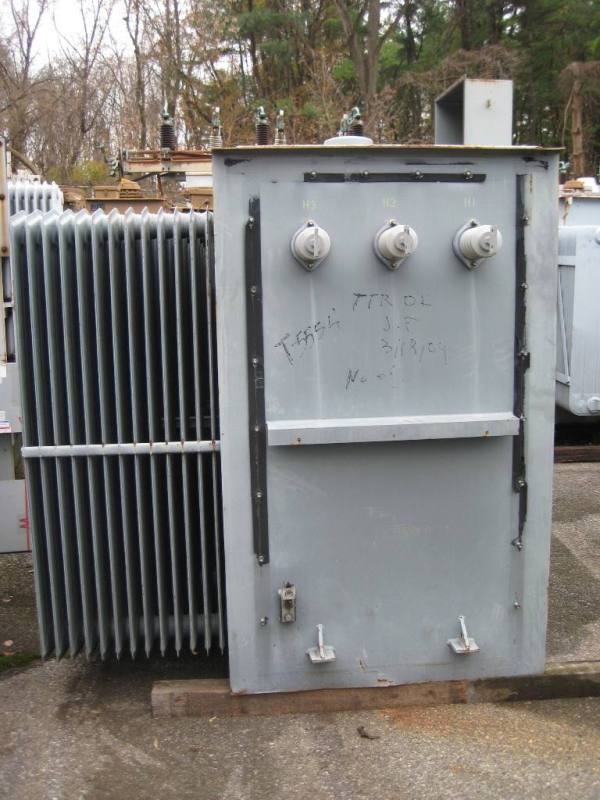

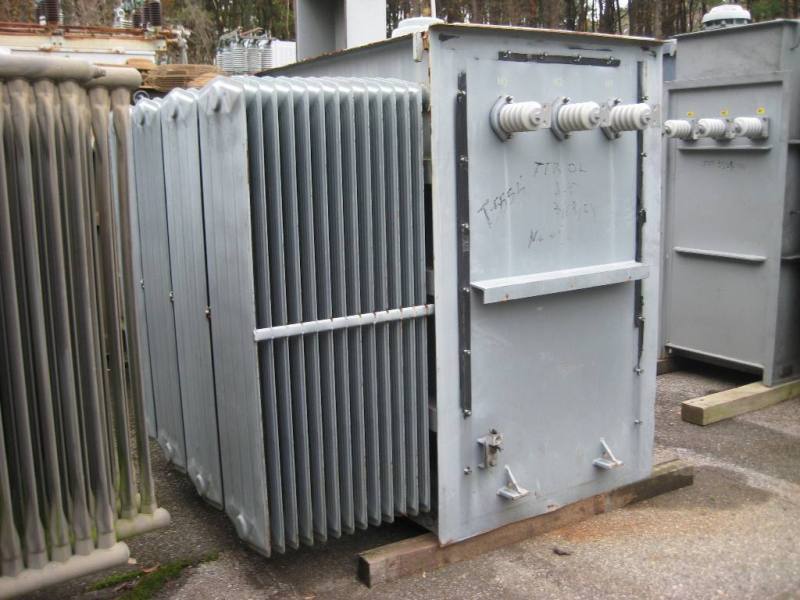

ONE (1) 2500 KVA SQUARE D SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
65 DEG. C RISE, 5.55% IMPEDANCE, CLASS OA, COPPER WINDINGS,
SIDE MOUNTED BUSHINGS, MFG. 1993

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 12,275 LBS.
CORE & COILS: 6,160 LBS.
TANK & FIT.: 2,740 LBS.

DIMENSIONS: 72"H X 86"W X 67"D
