2000/2666 KVA, Pri 4160 D, Sec 480Y/277, ABB/CANADA, DRY, INDOOR, ALUMINUM:1
DRY TYPE TRANSFORMER
Product Number:
034639
Full Product Description
T-3147

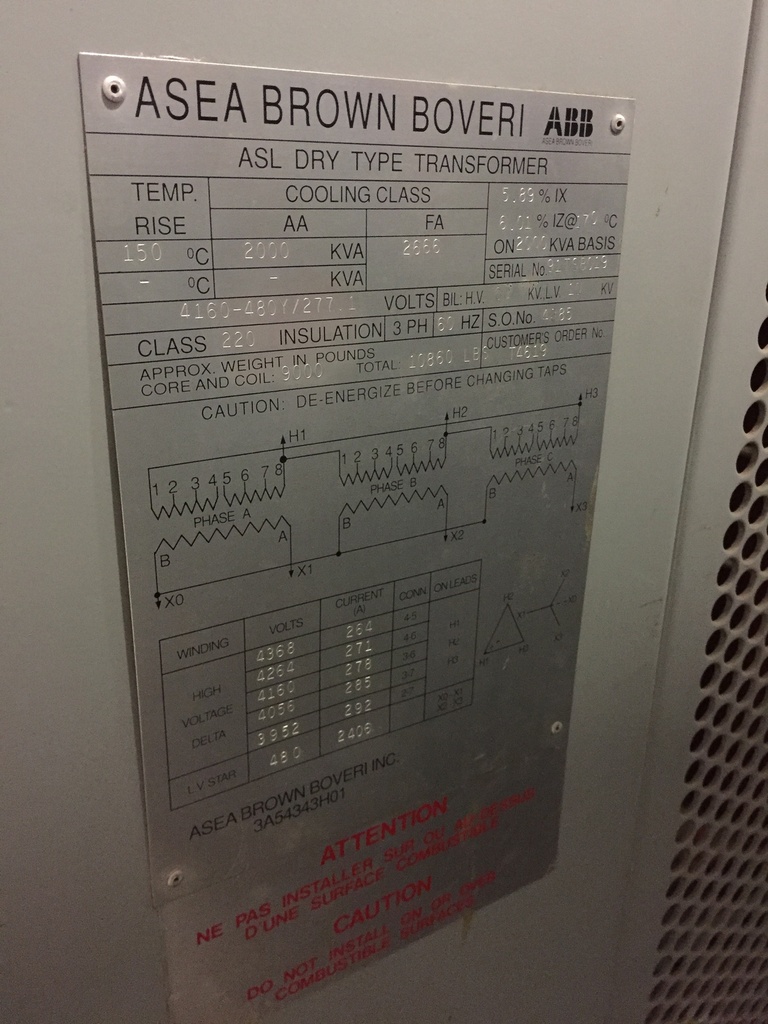

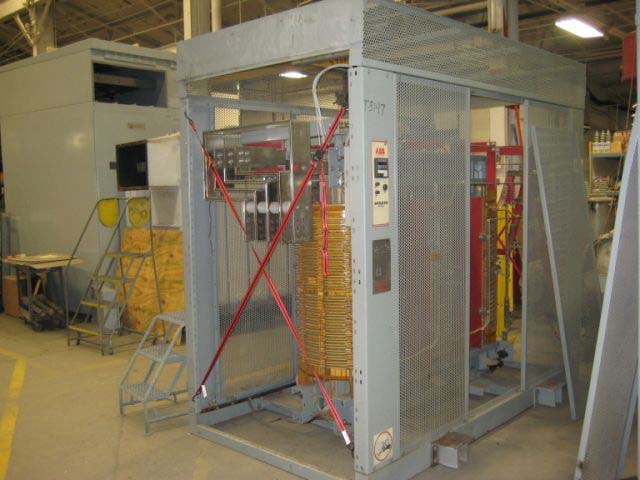

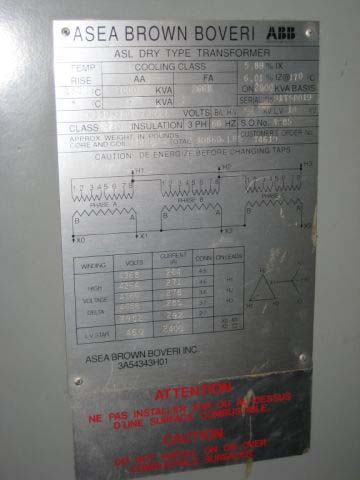

ONE (1) 2000/2666 KVA ABB/CANADA DRY TYPE TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS AA/FA, INDOOR ENCLOSURE, 150 DEG. C RISE, ALUMINUM WINDINGS,
HV RIGHT BOTTOM, LV LEFT, 6.01% IMPEDANCE
HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TAPS: 4368-4264-4160-4056-3952
TOTAL WEIGHT: 10,860 LBS.
CORE & COILS: 9,000 LBS.
DIMENSIONS: 110"H X 101"W X 59 1/4"D
CORE & COIL: 76"H X 100"W X 45"D
HV BUSS: 9 1/2"H
LV BUSS: 54 1/2"H
