1500/1680 KVA, Pri 12470 D, Sec 600 D, SQUARE D, SUBSTATION, COPPER:1

T-3106

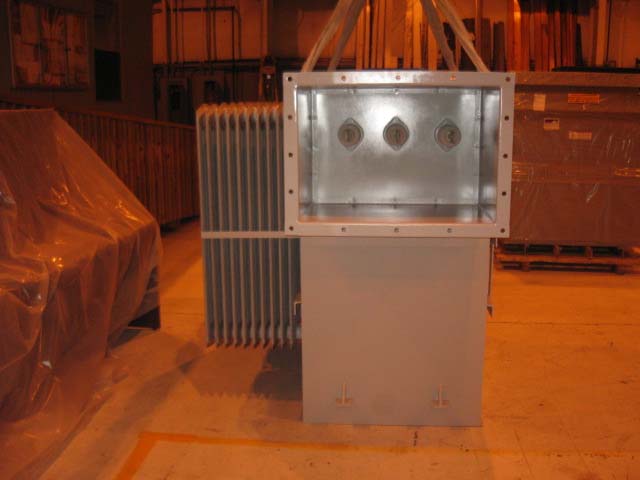

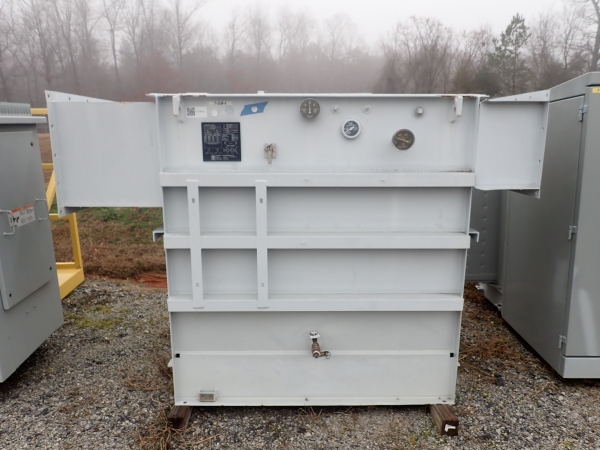

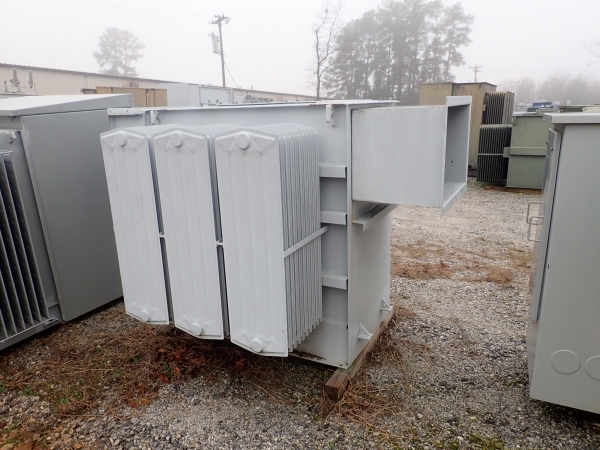

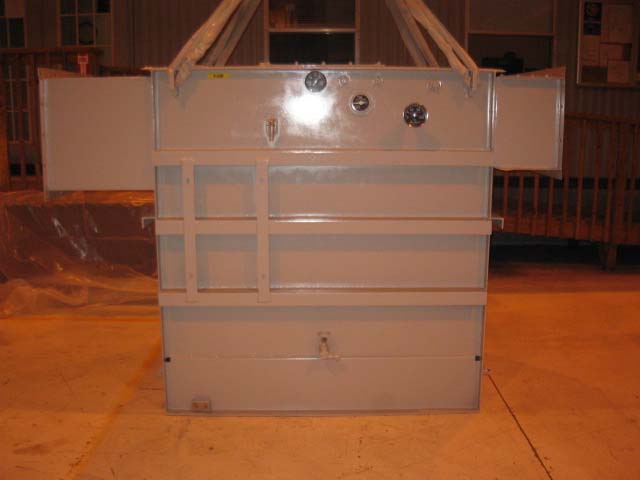

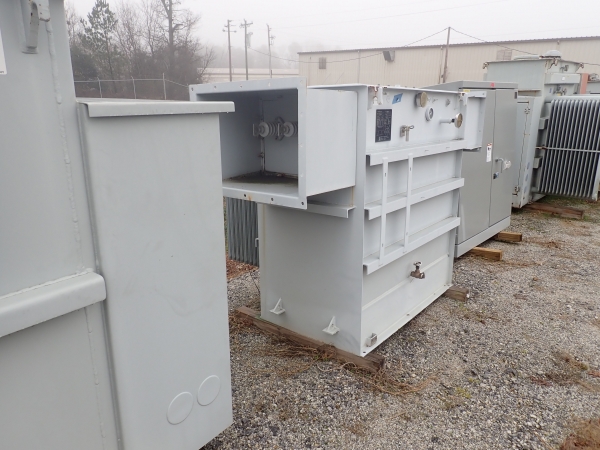

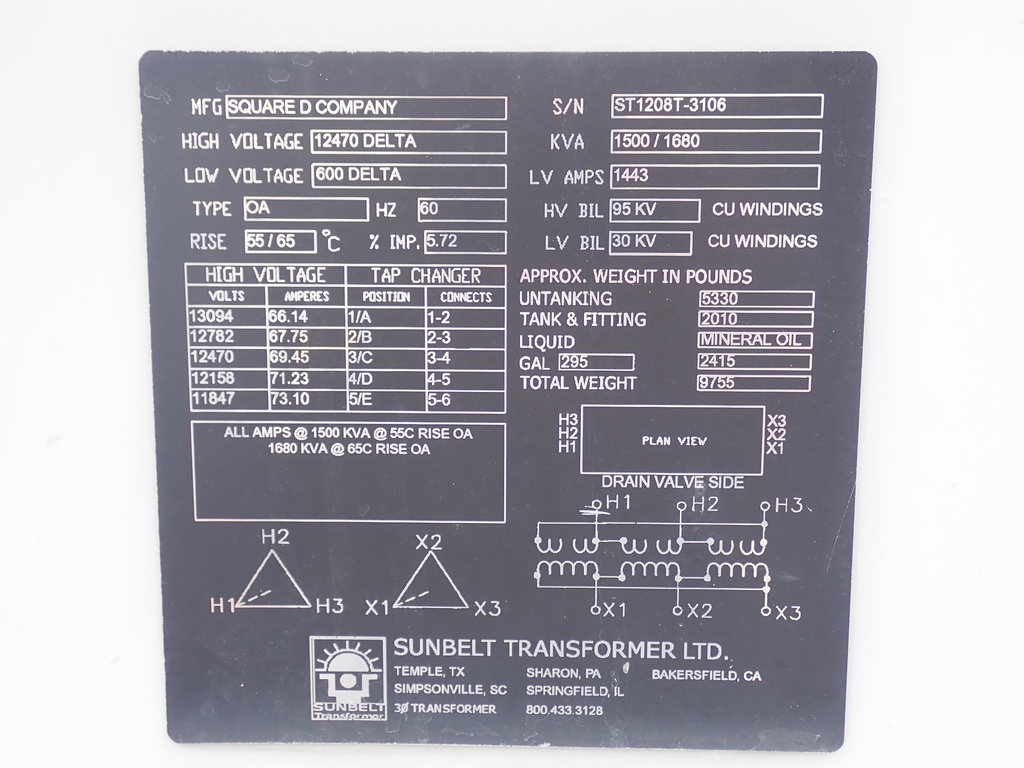

ONE (1) 1500/1680 KVA SQUARE D SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FFA, 55/65 DEGREE C RISE, 5.72% IMPEDANCE, COPPER WINDINGS,

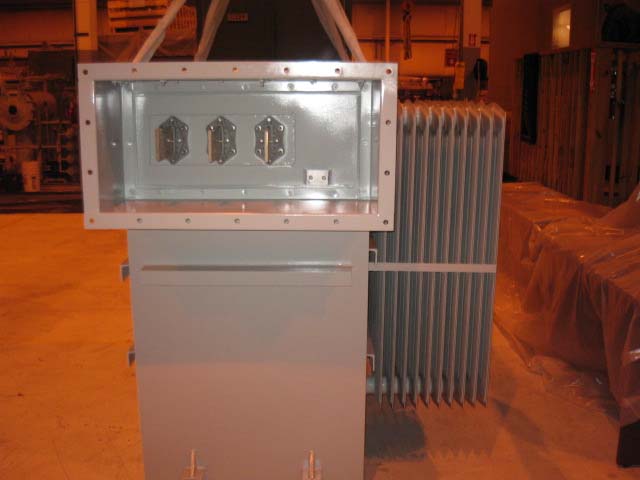

HV SIDE THROAT, LV SIDE THROAT, DRAIN AND SAMPLE VALVE, DIAL TYPE
THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, PRESSURE
RELIEF DEVICE, UPPER FILTER PRESS CONNECTION

HIGH VOLTAGE: 12470 DELTA BIL: 95 KV
LOW VOLTAGE: 600 DELTA BIL: 30 KV
TAPS: 13094-12782-12470-12158-11847

TOTAL WEIGHT: 9,755 LBS.
CORE & COILS: 5,330 LBS.
TANK & FIT.: 2,010 LBS.
OIL: 295 GALS. 2,415 LBS.
DIMENSIONS: 65"H X 93"W X 57"D

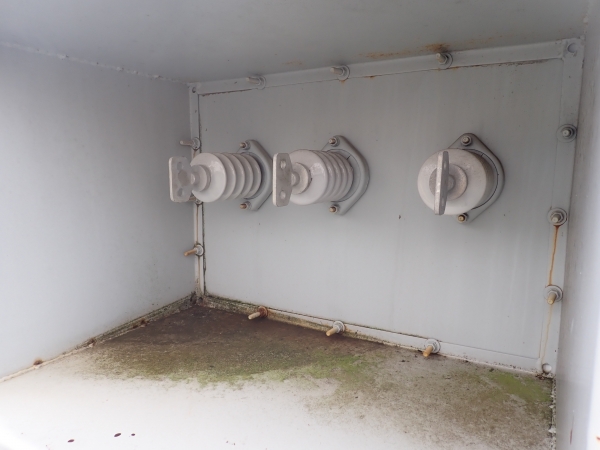

HV BUSHING: 55"H

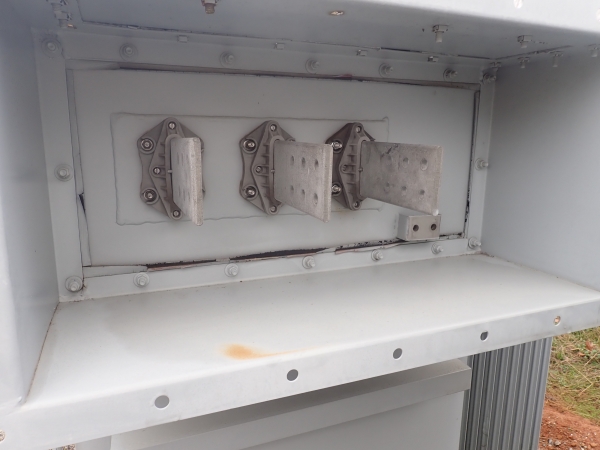

LV BUSHING: 55.5"H
FL - FL: 93"
