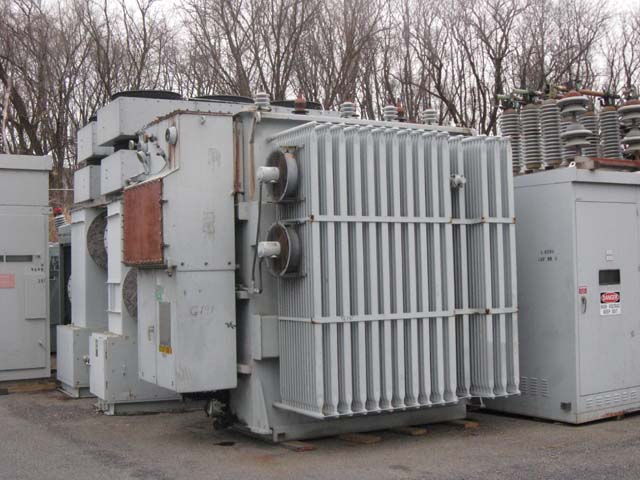

10/11.2/14 MVA, 22900 D, 12470 Y, GENERAL ELECTRIC SUBSTATION TRANSFORMER, LTC

G-191

ONE (1) 10/11.2/14 MVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, OIL, HV COPPER, LV ALUMINUM,
3-HV COV, 4-LV COVER, 3 X LV CT'S 1200/5, LV LOAD TAP CHANGING

HIGH VOLTAGE: 22900 DELTA
LOW VOLTAGE: 12470 WYE
TAPS: 24100-23500-22900-22300-21700
LTC: +/- 10%, 32 STEPS: 11223-13717

TOTAL WEIGHT: 52,550 LBS.
CORE & COILS: 22,050 LBS.
TANK & FIT.: 15,400 LBS.
OIL: 1880 GALS. 14,000 LBS.
LTC: 150 GALS. 1,000 LBS.

150"L x 117"W x 129.75"H (WITH BUSHINGS REMOVED)
149.75"H (WITH HV BUSHINGS)
141.75"H (WITH ONLY LV BUSHINGS)
