1000 KVA, Pri 13200 D Sec 240 D, 1990, SQUARE D, PADMOUNT, LIVE/RADIAL:1

STOCK #T-3101

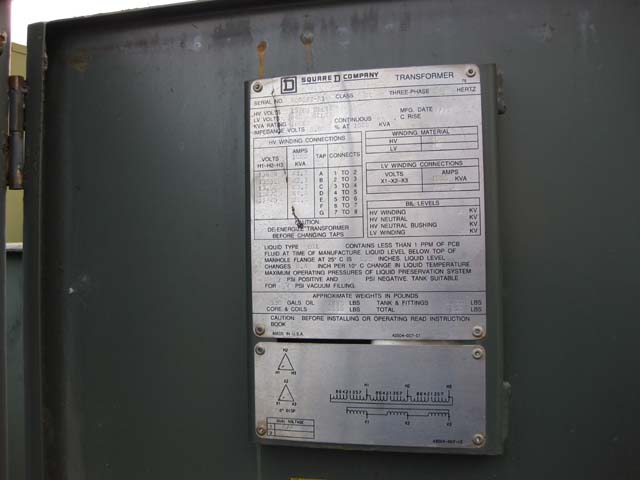

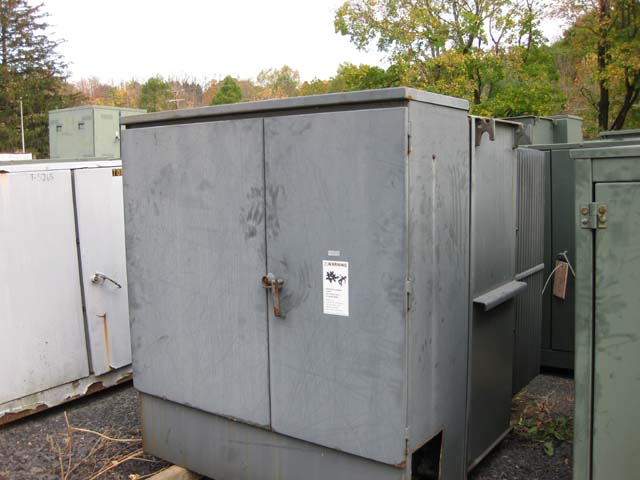

ONE (1) 1000 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,

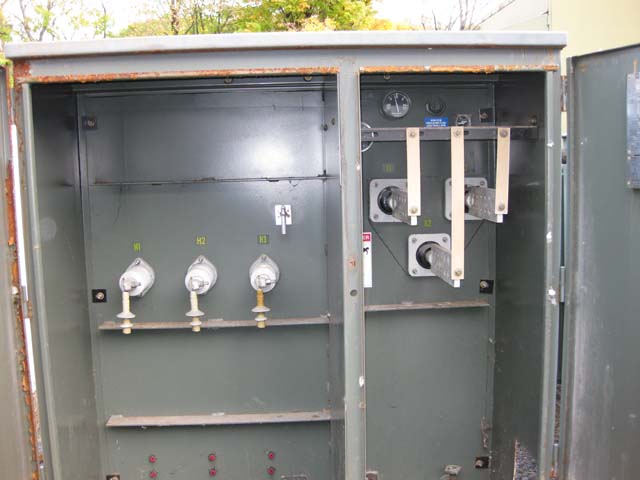

60 HERTZ, CLASS OA, 65 DEGREE C RISE, 5.8% IMPEDANCE, LIVE FRONT,
RADIAL FEED, MFG. 1990, S/N 900527-A1, ALUMINUM WINDINGS

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 240 DELTA BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 7,215 LBS.
CORE & COILS: 2,610 LBS.
TANK & FIT.: 2,130 LBS.
OIL: 330 GALS. 2,475 LBS.
DIMENSIONS: 68"H X 60"W X 85"D
