1500 KVA, Pri 34500 DELTA, Sec 208Y/120, 2007, GE PROLEC, DEAD/RADIAL, UNUSED:1

T-3187

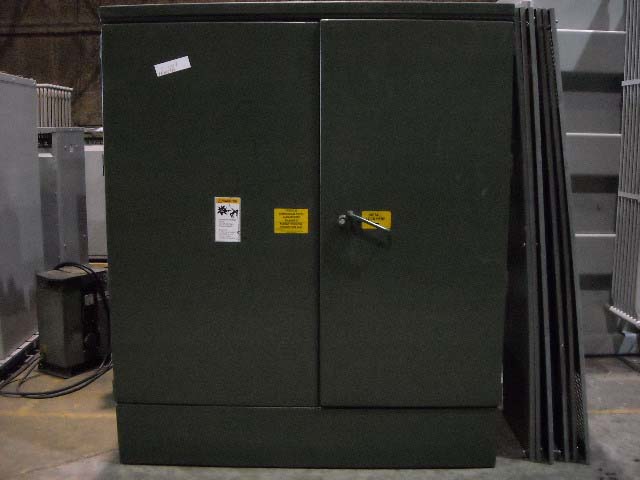

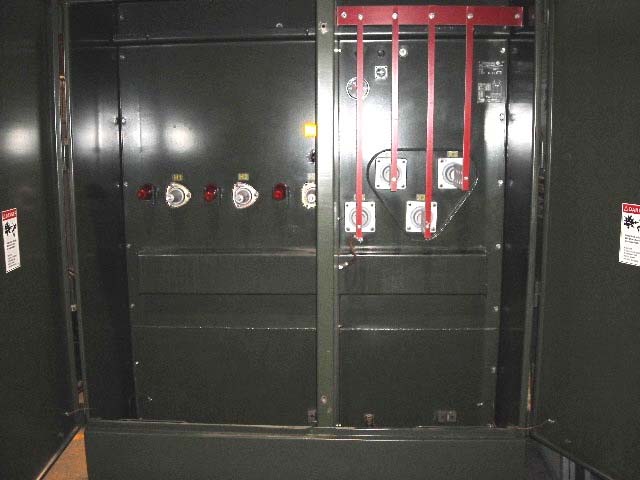

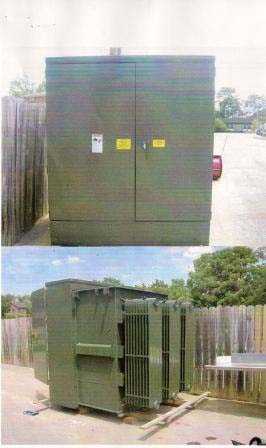

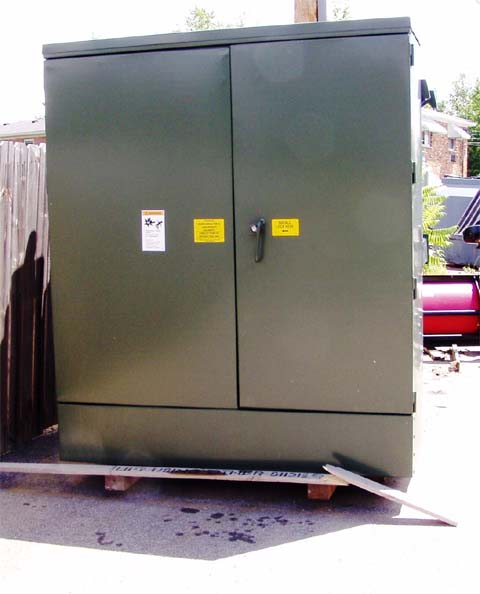

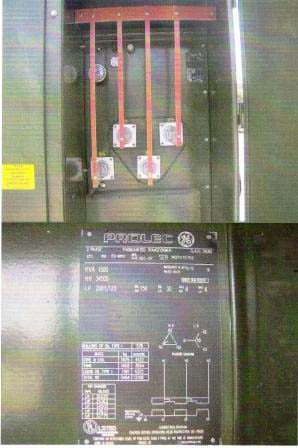

ONE (1) UNUSED 1500 KVA GE PROLEC COMPARTMENTALIZED PADMOUNT TRANSFORMER,
3 PHASE, 60 HERTZ, 65 DEGREE C RISE, CLASS OA, 6.12% IMPEDANCE, DEAD
FRONT, RADIAL FEED, ALUMINUM WINDINGS, DRAIN AND SAMPLE VALVE, DIAL
TYPE THERMOMETER, LIQUID LEVEL GAUGE, MFG. 2007, S/N MO7K15159

HIGH VOLTAGE: 34500 DELTA BIL: 150 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 36225-35363-34500-33638-32775

TOTAL WEIGHT: 12,108 LBS.
OIL: 576 GALLONS
DIMENSIONS: 86"H X 86"W X 85"D
HV BUSHING: 49.5"H
LV BUSHING: 53.5"H
