1000 KVA, Pri 4160 D, Sec 240Y/139, 1991, WESTINGHOUSE, SUBSTATION:1
SUBSTATION TRANSFORMER
Product Number:
034204
Full Product Description
STOCK #T-3088

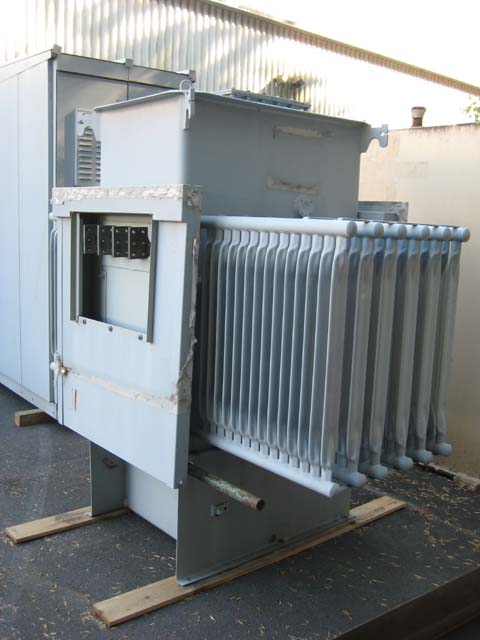

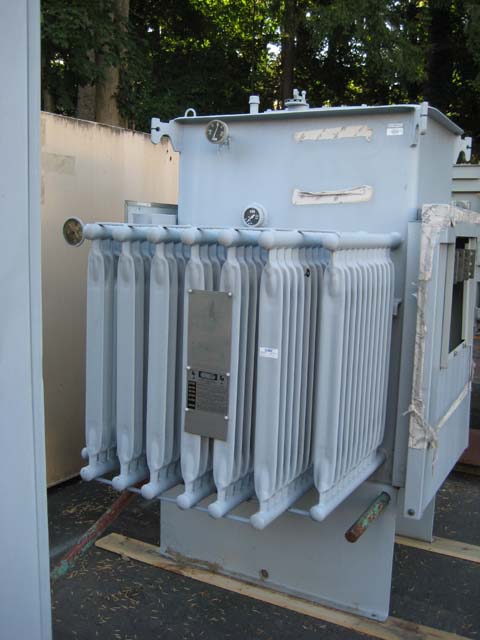

ONE (1) 1000 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS
OA, 65 DEG. C RISE, 5.46% IMPEDANCE, COPPER WINDINGS, DRAIN AND SAMPLE
VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM
GAUGE, FLANGE X FLANGE, MFG. JULY 1991, S/N PBL2537-0101
HIGH VOLTAGE: 4160 DELTA BIL: 95 KV
LOW VOLTAGE: 240Y/139 BIL: 30 KV
TAPS: 4360-4260-4160-4055-3950
TOTAL WEIGHT: 5,557 LBS.
CORE & COILS: 2,885 LBS.
TANK & FIT.: 1,562 LBS.
OIL: 148 GALS. 1,110 LBS.
DIMENSIONS: 89"H X 53 1/2"W X 35 1/2"D
