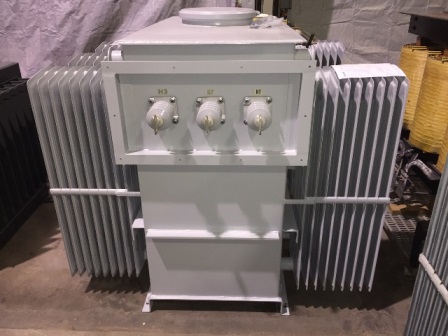

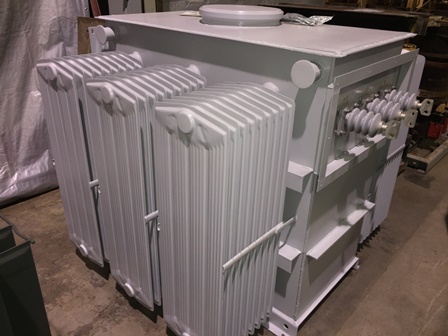

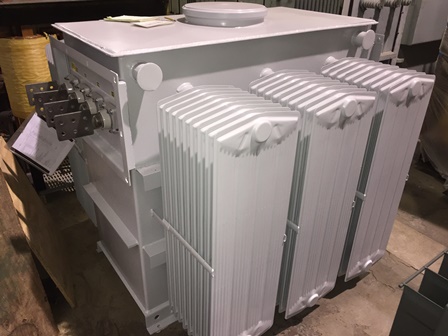

1500 KVA, Pri 12470Y/7200, Sec 480Y/277, BALTEAU, SUBSTATION

STOCK #T-3085

ONE (1) 1500 KVA BALTEAU SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, 65 DEG.
C RISE, 5.68% IMPEDANCE, ALUMINUM WINDINGS, DRAIN AND SAMPLE VALVE,

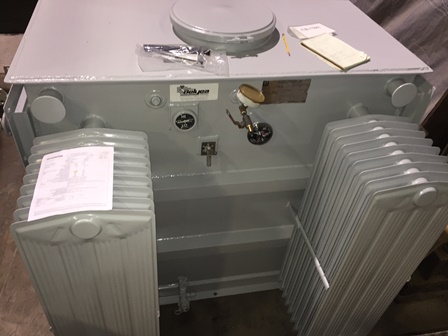

DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE,

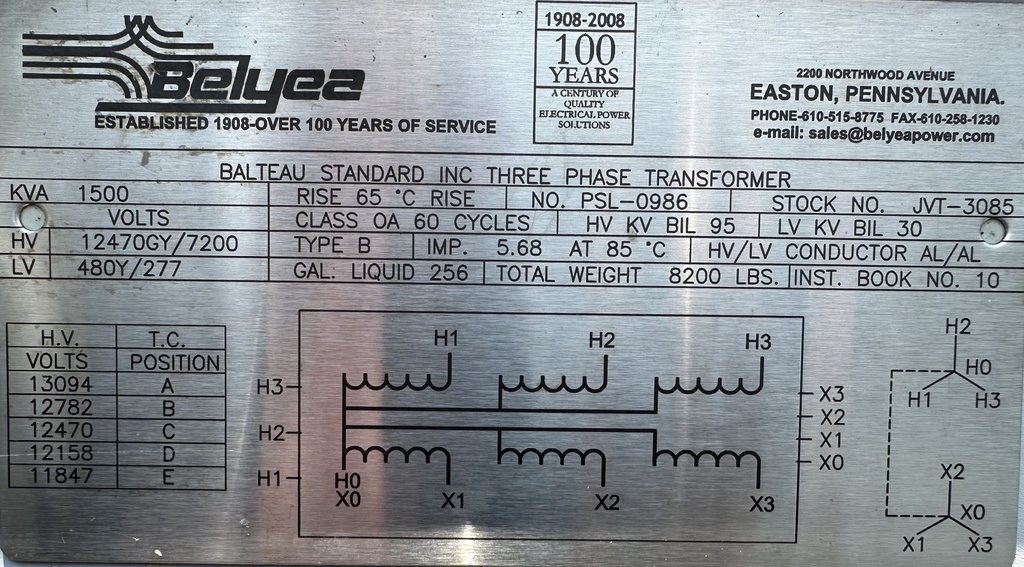

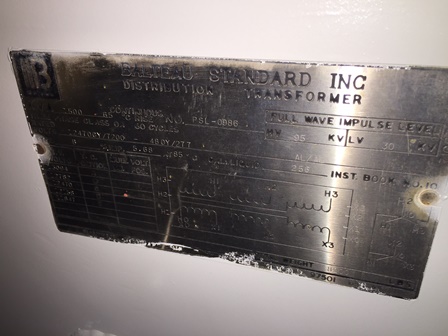

S/N PSL-0986, HV SIDE, LV PARTIAL FLANGE

HIGH VOLTAGE: 12470Y/7200 BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 13094-12762-12470-12158-11847
TOTAL WEIGHT: 8,200 LBS.
OIL: 256 GALLONS
DIMENSIONS: 62"H X 78"W X 68"D
HV BUSHING: 48"H
LV BUSHING: 48"H
LV FLANGE - 34" W X 18"H, 37" FROM GROUND
