1000/1400 KVA, Pri 26400 D, Sec 208Y/120, WESTINGHOUSE, SUBSTATION, R-TEMP:1

STOCK #T-3081

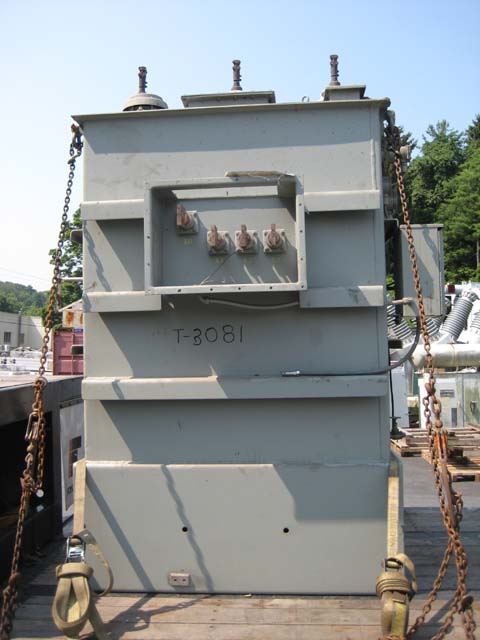

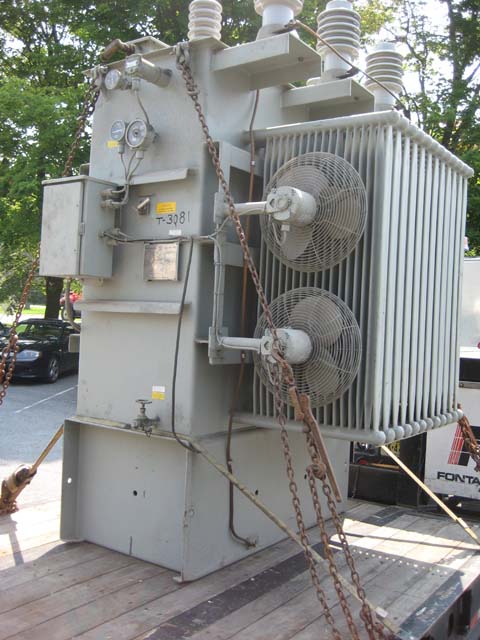

ONE (1) 1000/1400 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS OA/FA, 55/65 DEG. C RISE, 5.35% IMPEDANCE, R-TEMP, TOP MOUNTED
HV BUSHINGS, THROAT MOUNTED LV BUSHINGS, S/N 52541, 3 X LIGHTNING
ARRESTERS

HV: 26400 DELTA BIL: 150 KV
LV: 208Y/120 BIL: 30 KV
TAPS: 27720-27060-26400-25740-25080

TOTAL WEIGHT: 11,230 LBS.
FUEL: 415 GALS. 3,030 LBS.
DIMENSIONS: 9'9"H X 6'7"W X 6'2"L
