1000/1288 KVA, Pri 12470 D, Sec 480Y/277, WESTINGHOUSE, SILICONE

STOCK #T-5531

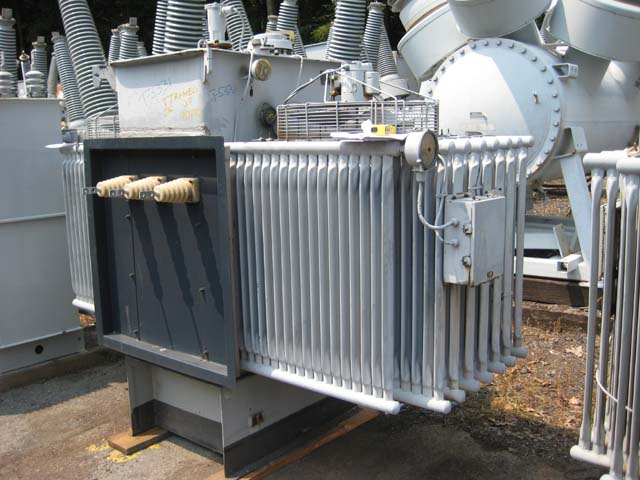

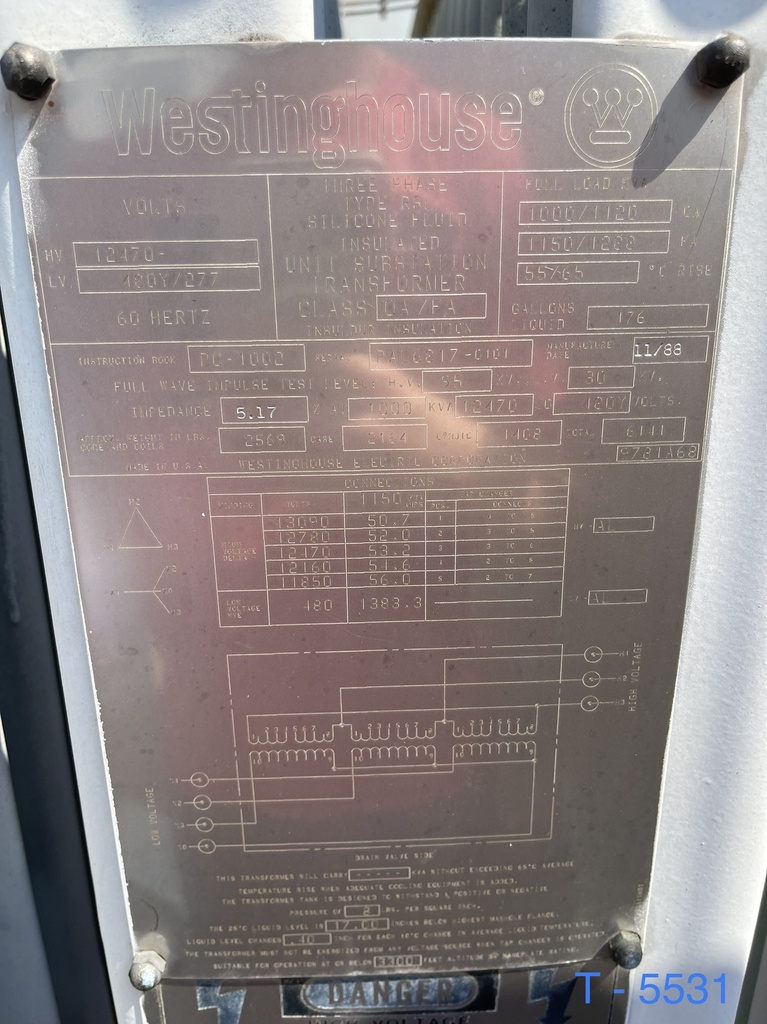

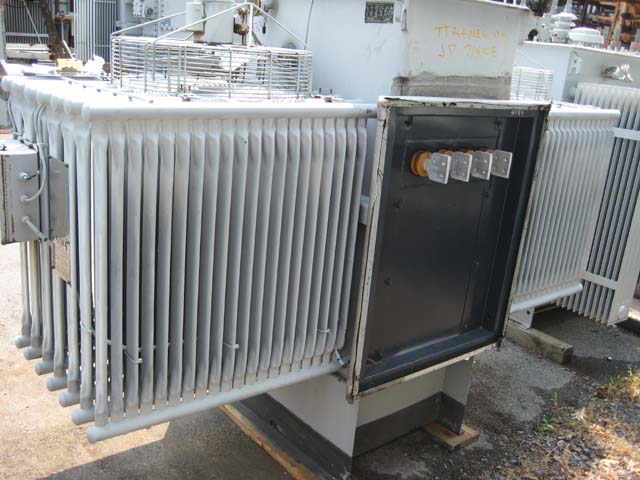

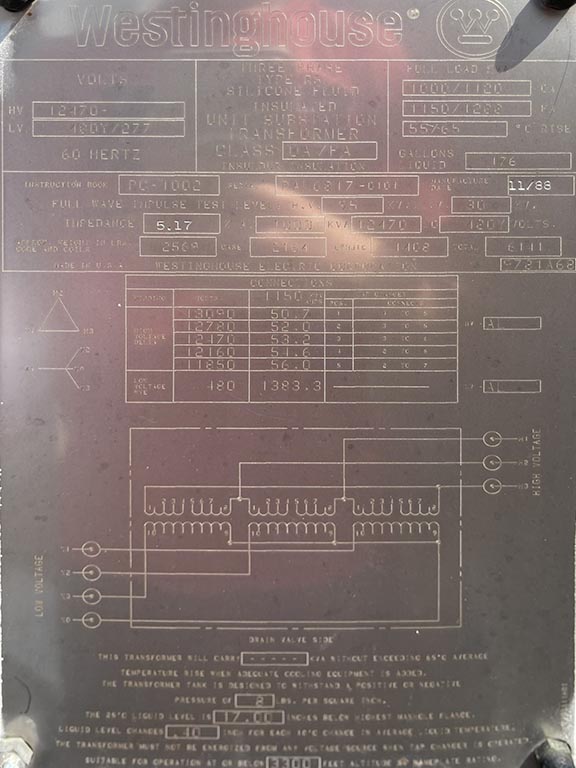

ONE (1) 1000/1120/1150/1288 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, 55/65 DEG. C RISE, CLASS OA/FA, 5.17% IMPEDANCE, SILICONE,
DRAIN AND SAMPLE VALVE, DIAL-TYPE THERMOMETER WITH CONTACTS, LIQUID
LEVEL GAUGE, PRESSURE VACUUM GAUGE, PRESSURE RELEASE VALVE, SUDDEN
PRESSURE RELAY, FANS, AUXILIARY CONTROL CABINET, FLANGE X FLANGE
BUSHINGS, S/N PAL-6817-0101

HV: 12470 DELTA BIL: 95 KV
LV: 480Y/277 BIL: 30 KV
TAPS: 13090-12780-12470-12160-11850

TOTAL WEIGHT: 6,141 LBS.
CORE & COILS: 2,569 LBS.
TANK & FIT.: 2,164 LBS.
DIMENSIONS: 92"H X 61"W X 115"D
BUSHINGS: 55"H
