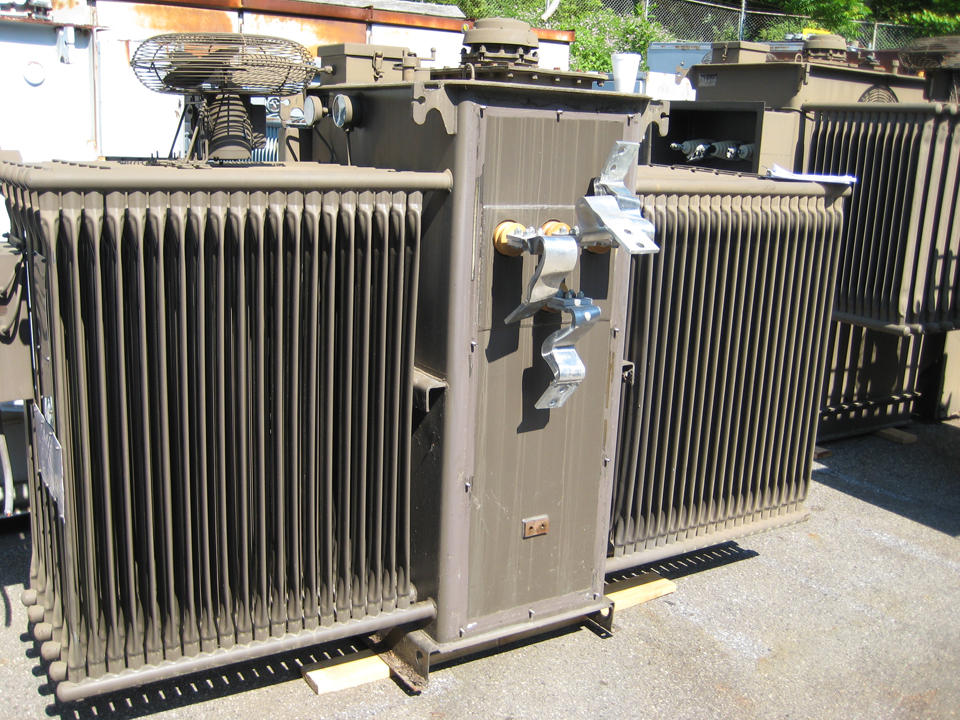

1000/1288 KVA, Pri 13800 D, Sec 480Y/277, ABB, SILICONE, SUBSTATION
SUBSTATION TRANSFORMER
Product Number:
034063
Full Product Description
STOCK #T-5527

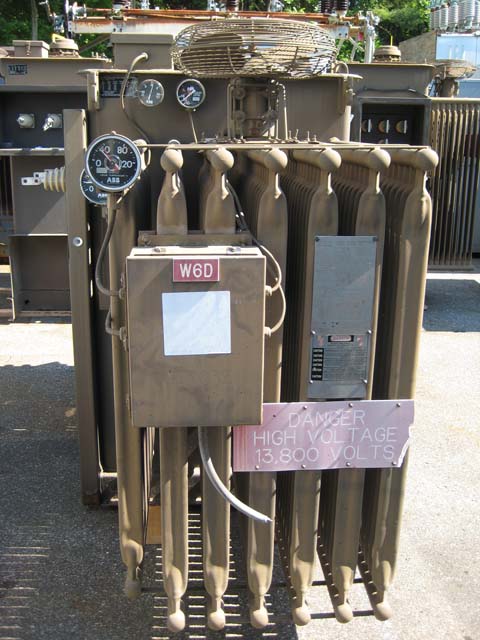

ONE (1) 1000/1120/1150/1288 KVA ABB SUBSTATION TRANSFORMER, SILICONE, 3 PHASE,
60 HERTZ, 6.10% IMPEDANCE, CLASS OA/FA, 55/65 DEG. C RISE, ALUMINUM,
WINDINGS, DRAIN AND SAMPLE VALVE, DIAL TYPE THERMOMETER WITH CONTACTS,
LIQUID LEVEL GAUGE WITH CONTACTS, PRESSURE RELIEF DEVICE, WINDING
TEMPERATURE INDICATOR, FANS, AUXILIARY CONTROL CABINET, SIDE MOUNTED

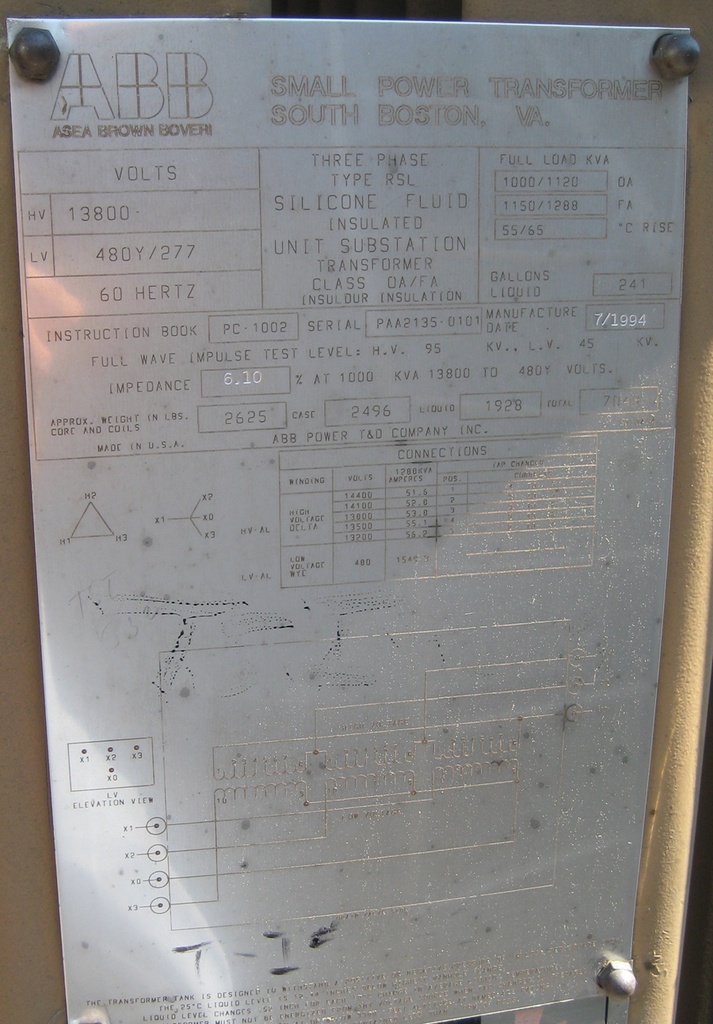

BUSHINGS, MFG. 1994, S/N PAA2135-010
HV: 13800 DELTA BIL: 95 KV
LV: 480Y/277 BIL: 45 KV
TAPS: 14400-14100-13800-13500-13200
TOTAL WEIGHT: 7,046 LBS.
CORE & COILS: 2,625 LBS.
TANK & FIT.: 2,496 LBS.
SILICONE: 241 GALLONS
DIMENSIONS: 80 1/2"H X 60"W X 117"D
HV BUSHINGS: 58"H
LV BUSHINGS: 58"H
NEUTRAL: 51 1/2"H
