5000/5600 KVA, Pri 26400 D, Sec 4160Y/2400, WESTINGHOUSE, SUBSTATION
SUBSTATION TRANSFORMER
Product Number:
033991
Full Product Description

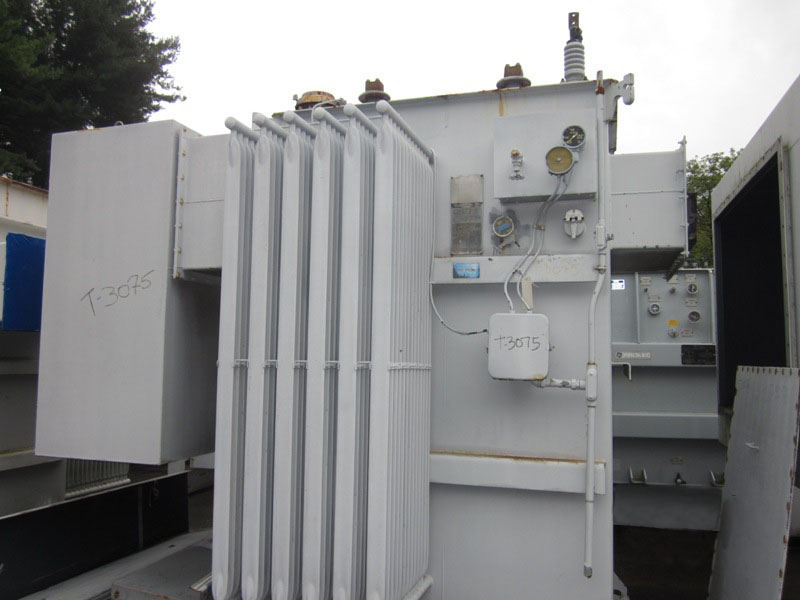

STOCK #T-3075

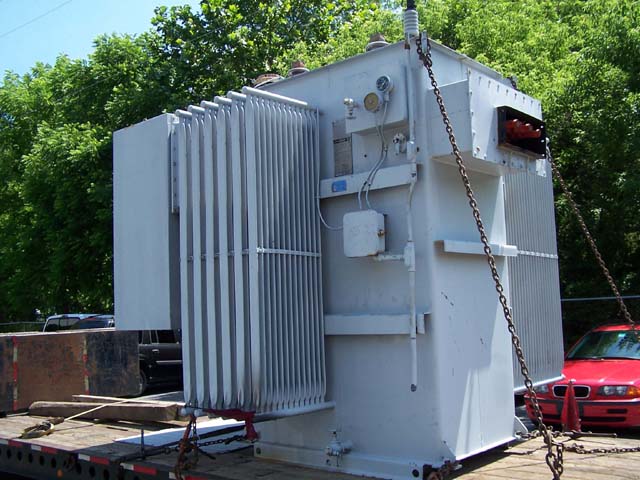

ONE (1) 5000/5600 KVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
55/65 DEG. C RISE, TYPE SL, CLASS OA/FFA, ALUMINUM WINDINGS, HV 3 ATC,

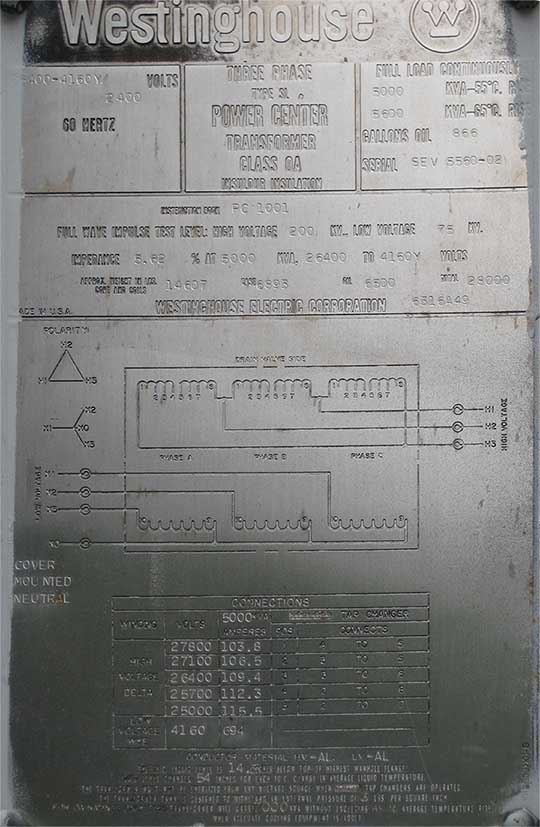

LV 3 THROAT, COVER MOUNTED NEUTRAL, 5.64% IMPEDANCE, S/N SEV-5560-1,
VACUUM/PRESSURE GAUGE
HIGH VOLTAGE: 26400 DELTA BIL: 200 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 27800-27100-26400-25700-25000
TOTAL WEIGHT: 28,000 LBS.
TANK & FIT: 5,693 LBS.
CORE & COILS: 14,907 LBS.
OIL: 8,500 LBS.
HV ATC: 1,200 LBS.

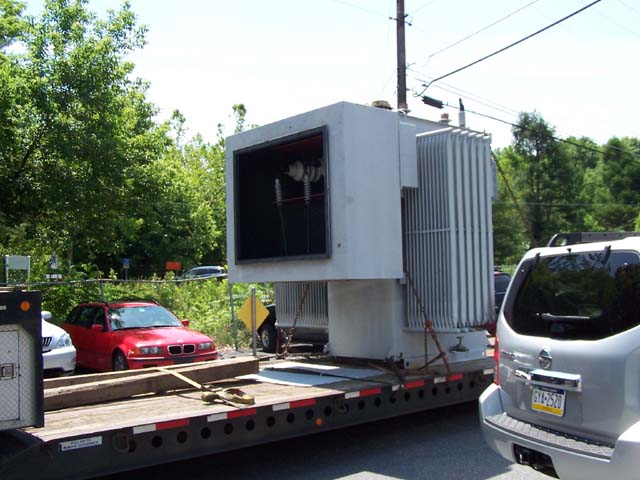

SHIPPING DIMENSIONS: 127.5"L X 115"D X 124.14"H
