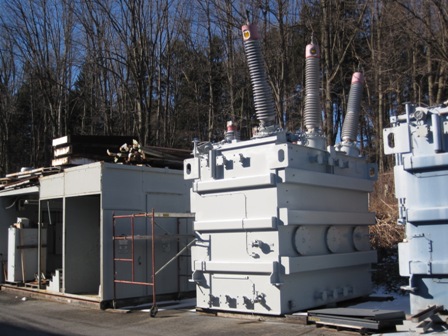

24000/32000/40000 KVA, Pri 230000 D, Sec 4370Y/2523, 1990, ABB, SUBSTATION:1

STOCK G-162

ONE (1) 24000/32000/40000 KVA ABB SUBSTATION TRANSFORMER, TYPE SL, 3 PHASE,
60 HERTZ, 65 DEG. C RISE, CLASS OA/FA/FA, 13.9% IMPEDANCE, MFG. 1990,
S/N SNM56462, COPPER WINDINGS, 6 RADIATORS, 2 BANKS OF FANS, EXPANSION
TANK, SPARE HV BUSHING, L-SPEC SNM5646-08, WIRING DIAGRAM SNM5646-04,
HV - 3 X 1200/5 MULTI-RATIO CT'S, 3 X 2000/5 MULTI-RATIO CT'S; LV -
3 X 6000/5 MULTI-RATIO CT'S, TOP MOUNTED HV BUSHINGS

HIGH VOLTAGE: 230000 DELTA BIL: 750 KV
LOW VOLTAGE: 4370Y/2523 BIL: 110 KV
TAPS: 241500-235750-230000-224250-218500

TOTAL WEIGHT: 162,510 LBS.
CORE & COILS: 71,200 LBS.
TANK & FIT.: 39,400 LBS.
OIL: 6921 GALS.: 51,910 LBS.
DIMENSIONS: 167.9"H X 127"W X 181.5"L
SHIPPING: 153"H
