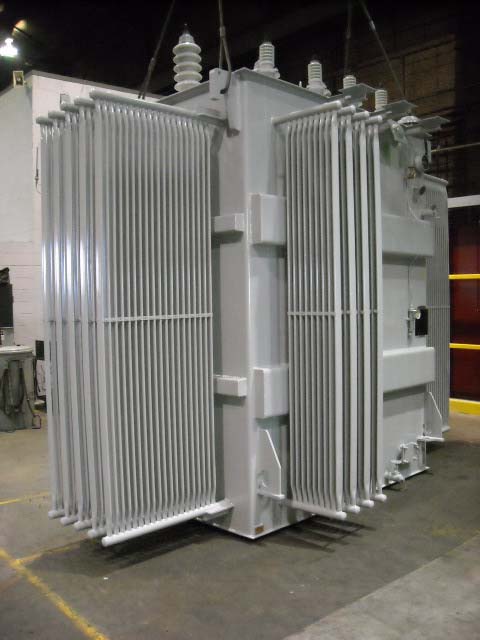

10/12.5 MVA, Pri 43800 D, Sec 13800Y/7968 X 8720Y/5040, WESTINGHOUSE, SUB

STOCK #G-158<

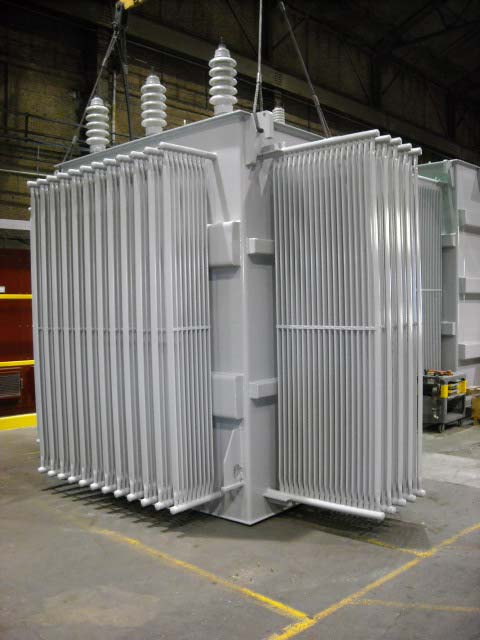

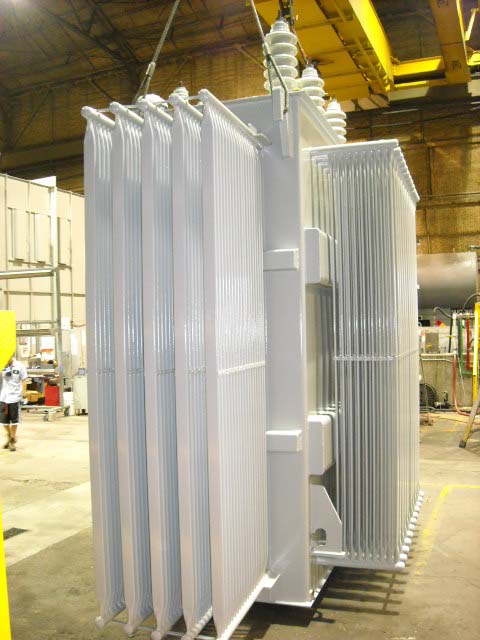

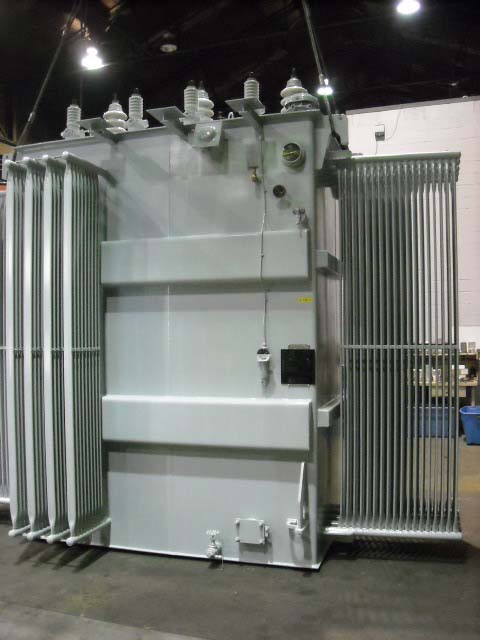

ONE (1) 10/12.5 MVA WESTINGHOUSE SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,<
65 DEG. C RISE, CLASS OA/FFA, 6.52% IMPEDANCE, ALUMINUM WINDINGS,<
CIRCULAR/DISK, DIAL TYPE THERMOMETER, DRAIN AND SAMPLE VALVE,
PRESSURE<
RELIEF DEVICE, PRESSURE VACUUM GAUGE, LIQUID LEVEL GAUGE, HV TOP ANSI<
3, LV TOP ANSI 1, MFG. 1972

< HIGH VOLTAGE: 43800 DELTA BIL: 250 KV<
LOW VOLTAGE: 5040/8720Y/5040 BIL: 95 KV X 110 KV<
7968/13800Y/7968<
TAPS: 46200-45000-43800-42600-41400<
<
TOTAL WEIGHT: 53,300 LBS.<
CORE & COILS: 26,000 LBS.<
TANK & FIT.: 11,400 LBS.<
OIL: 2117 GALS. 15,900 LBS.<
DIMENSIONS: 151"H X 185"W X 95"D<
HV BUSHING: 203"H<
LV BUSHING: 151"H<
