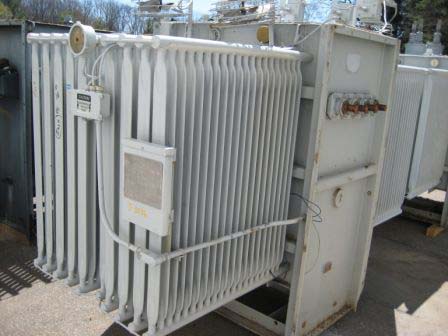

2000/2300/2576 KVA, Pri 13200 D, Sec 480Y/277, GENERAL ELECTRIC, SUBTATION
SUBSTATION TRANSFORMER
Product Number:
033912
Full Product Description

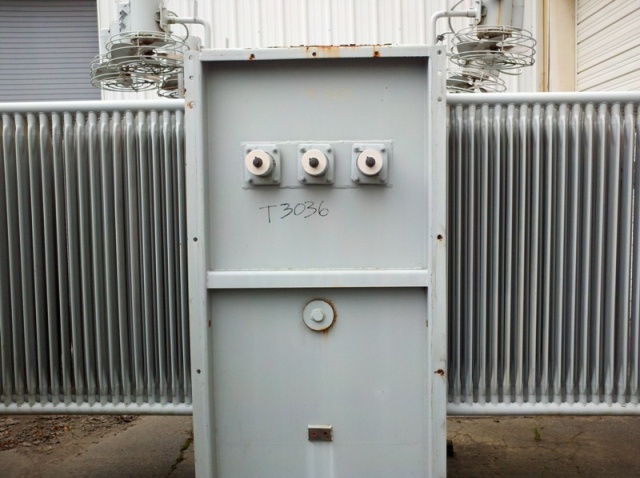

STOCK #T-3036
ONE (1) 2000/2300/2576 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, 55/65 DEG. C RISE, CLASS OA/FA, 5.63% IMPEDANCE, ALUMINUM
WINDINGS, FLANGE X FLANGE, DRAIN AND SAMPLE VALVE, LIQUID LEVEL GAUGE,
DIAL TYPE THERMOMETER WITH CONTACTS, PRESSURE VACUUM GAUGE, FANS,

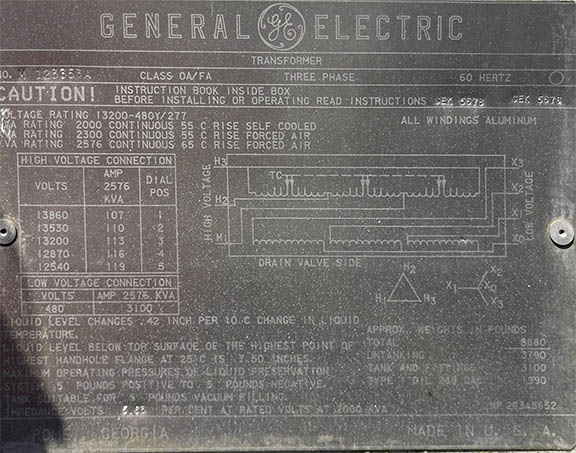

AUXILIARY CONTROL CABINET, S/N M123353A
HIGH VOLTAGE: 13200 DELTA
LOW VOLTAGE: 480Y/277
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 8,880 LBS.
CORE & COILS: 3,790 LBS.
TANK & FIT.: 3,100 LBS.
OIL: 268 GALLONS
DIMENSIONS: 90"H X 60"W X 120"D
FLANGE TO FLANGE: 53"
HV BUSHING: 60"H
LV BUSHING: 60"H
