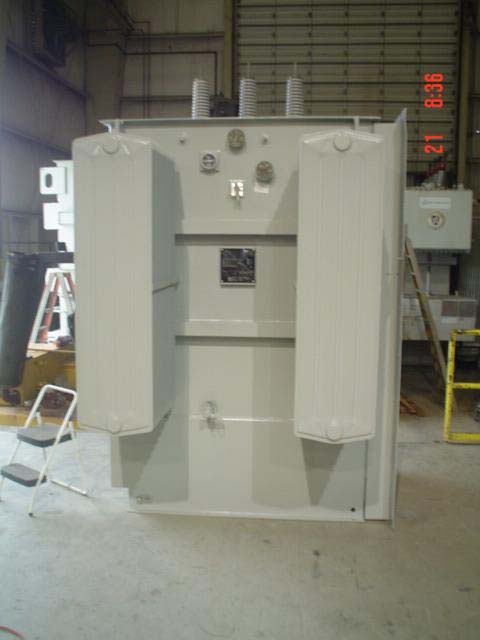

1500/1725 KVA, Pri 13200 D, Sec 480Y/277, ALSTOM, SUBSTATION, R-TEMP:1

STOCK #T-3052

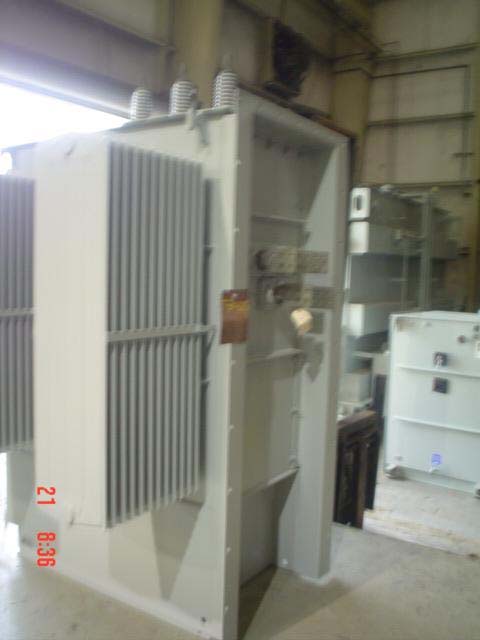

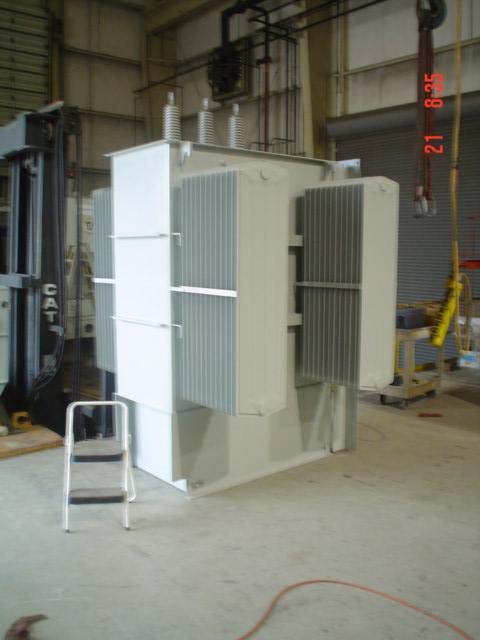

ONE (1) 1500/1725 KVA ALSTOM SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, 65
DEG. C RISE, CLASS OA/FFA, ALUMINUM WINDINGS, 5.9% IMPEDANCE, DRAIN &
SAMPLE VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE
VACUUM GAUGE, HV TOP, LV FLANGE, S/N PBJ-1173, R-TEMP

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 9,460 LBS.
CORE & COILS: 3,475 LBS.
TANK & FIT: 3,433 LBS.
OIL: 352 GALS. 2,552 LBS.
DIMENSIONS: 108"H X 68"W X 72"D
HV BUSHING: 108"H
LV BUSHING: 65"H
