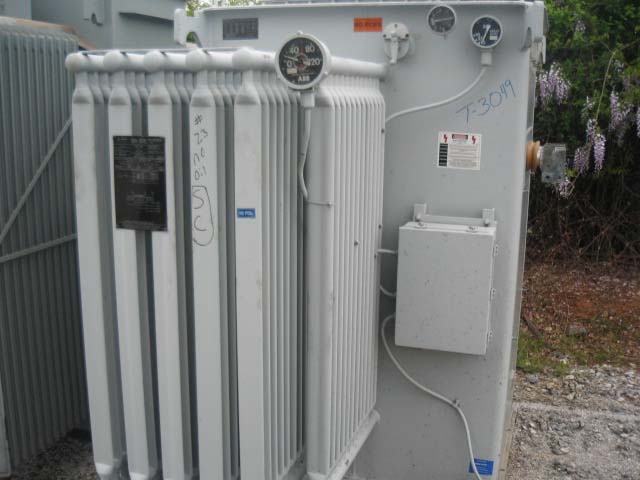

1500/1680 KVA, Pri 13200 D, Sec 480Y/277, ABB, SUBSTATION:1

STOCK #T-3049

ONE (1) 1500/1680 KVA ABB SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, 55/65
DEG. C RISE, CLASS OA, ALUMINUM WINDINGS, 6.16% IMPEDANCE, DRAIN
AND SAMPLE VALVE, DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE
VACUUM GAUGE, HV TOP, LV SIDE, S/N PAB3569-0001

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540

OIL: 259 GALLONS
DIMENSIONS: 90"H X 51"W X 88"D

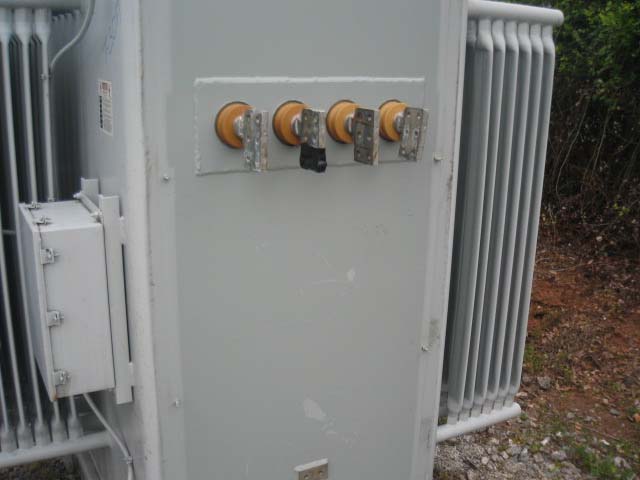

HV BUSHING: 90"H
LV BUSHING: 55"H
