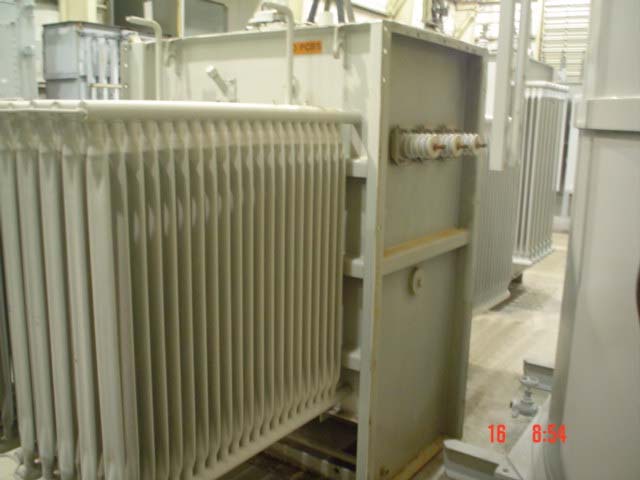

2000/2240/2576 KVA, Pri 13200 D, Sec 480Y/277, GENERAL ELECTRIC, SUBSTATION:1
SUBSTATION TRANSFORMER
Product Number:
033894
Full Product Description
STOCK #T-3039

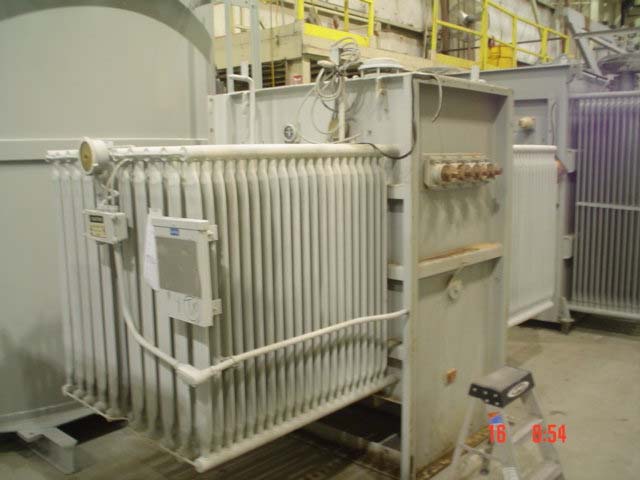

ONE (1) 2000/2240 KVA, 2576 KVA (55/65 DEG. C RISE), GENERAL ELECTRIC
SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, 55/65 DEG. C RISE, CLASS
OA/FFA, ALUMINUM WINDINGS, 5.52% IMPEDANCE, DRAIN AND SAMPLE VALVE,
DIAL-TYPE THERMOMETER WITH CONTACTS, LIQUID LEVEL GAUGE, PRESSURE
VACUUM GAUGE, FLANGE X FLANGE, S/N M163519A
HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540
TOTAL WEIGHT: 9,115 LBS.
CORE & COILS: 3,980 LBS.
TANK & FIT.: 3,200 LBS.
OIL: 242 GALS. 1,935 LBS.
DIMENSIONS: 83"H X 63"W X 121"D
55" FLANGE TO FLANGE
HV BUSHING: 60"H
LV BUSHING: 60"H
