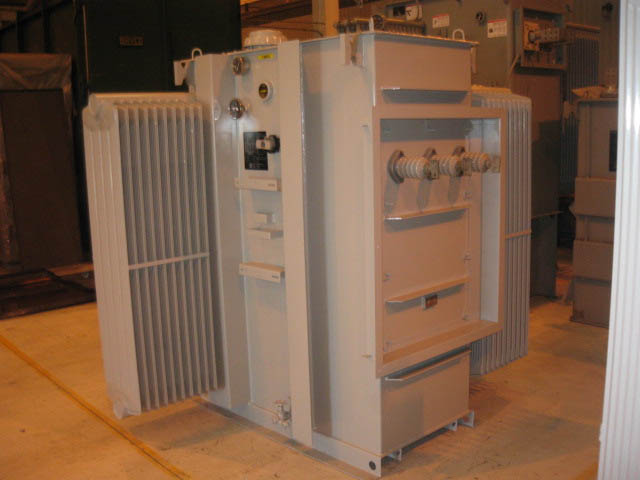

2000/2240/2300/2576 KVA, Pri 13200 D, Sec 480Y/277, RTE, SUBSTATION:1

STOCK #T-3035

ONE (1) 2000/2240 KVA, 2300 KVA (55/65 DEG. C RISE), 2576 KVA (OA/FFA) RTE
SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, 55/65 DEG. C RISE, CLASS
OA/FFA, HV COPPER WINDING, LV ALUMINUM WINDING, 5.6% IMPEDANCE, DRAIN
AND SAMPLE VALVE, DIAL-TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE
VACUUM GAUGE, PRESSURE RELIEF DEVIC, FLANGE X FLANGE, S/N 946002322

HIGH VOLTAGE: 13200 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 13860-13530-13200-12870-12540

TOTAL WEIGHT: 13,295 LBS.
CORE & COILS: 6,105 LBS.
TANK & FIT.: 3,675 LBS.
OIL: 3,515 LBS., 468 GALLONS
DIMENSIONS: 89"H X 77"W X 95"D
64" FLANGE TO FLANGE
HV BUSHING: 65"H
LV BUSHING: 65.5"H


LV BUSHING: 66"H
